Viking L3 2nd Gen Slide Gate Operator
Motor: 24 VDC 1/2 HP
Operating Speed: 12 inches per second
Duty Cycle: 100%
Battery Backup: 100 Cycles
Power Source Options: 115V/230V AC single Phase
24V AC/DC
Operating Temp: -20 F to 158 F
Click Here For More Info |
 |
Viking H10 2nd Gen Slide Gate Operator
Motor: 24 VDC 1 HP
Operating Speed: 12 inches per second
Duty Cycle: 100%
Battery Backup: 100 Cycles
Power Source Options: 115V/230V AC single Phase
24V AC/DC
Operating Temp: -20 F to 158 F
Click Here For More Info |
 |

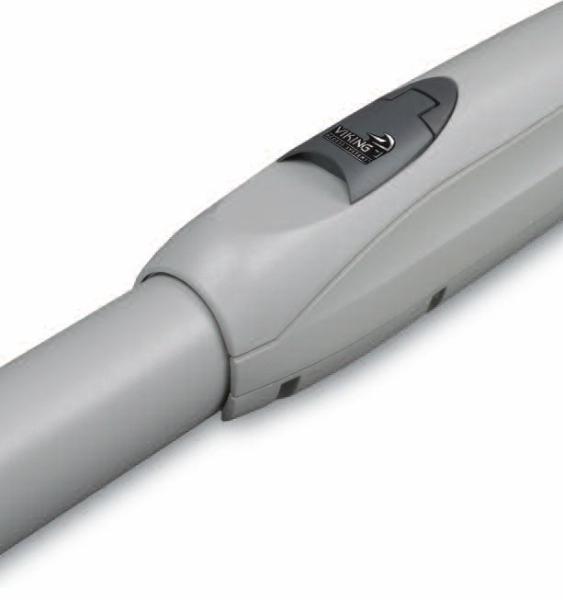

Viking G5 Second Gen Swing Gate Operator
Motor: 24 VDC ½ HP
Operating Speed 15-18 sec. per 90
Duty Cycle: 100%
Battery Backup: 400 Cycles
Power Source Options: 115V/230V AC single Phase
24V AC/DC
Operating Temp: -4 F to 158 F
Opening Angle: 135 degrees Max
Click Here For More Info
|
 |

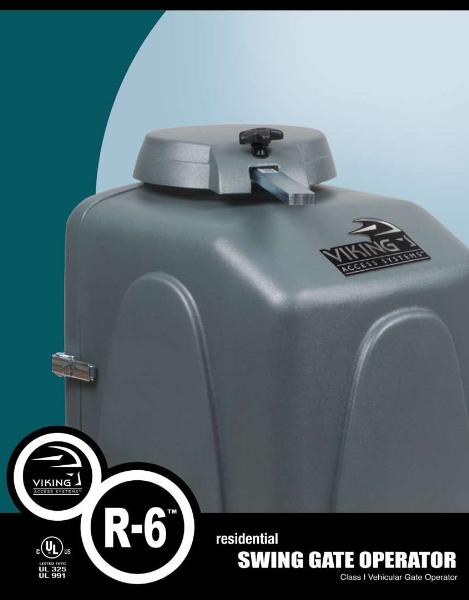

Viking R-6 Swing Gate Opener / Gate Operators
Main Power Source 120 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 600 lbs.
Max Gate Length 14 Feet
Max Operating Speed 13-16 seconds per 90°
Battery Backup Operation 800 Full Cycles (500 lbs. / 12' gate)
Max Opening 120°
Operating Temperature -4°F to +158°F
Click Here For More Info
|
 |

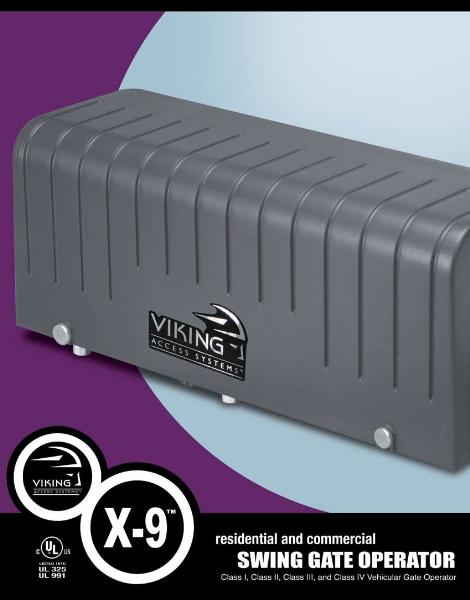

Viking X-9 Swing Gate Opener / Gate Operators
Operation 24 VDC with 1/2 H.P. Motor
Main Power Source 120 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 600 lbs.
Max Gate Length 14 Feet
Max Operating Speed 10-13 seconds per 90°
Battery Backup Operation 800 Full Cycles (500 lbs. / 12' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Click Here For More Info
|
 |

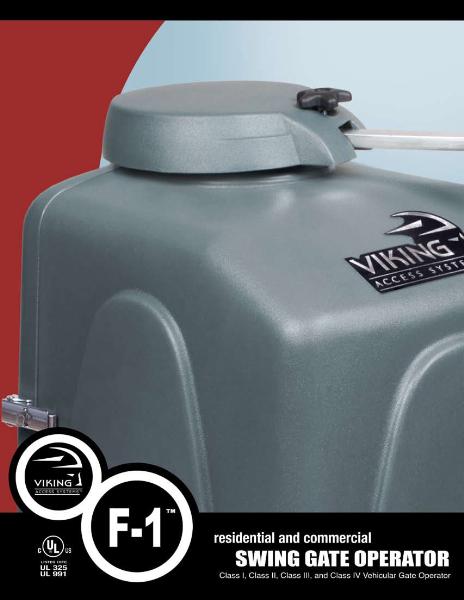

Viking F-1 Gate Operator / Swing Gate Opener
Operation 24 VDC with 1/2 H.P. Motor
Main Power Source 120 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 1200 lbs. / 12' or 800 lbs. / 16'
Max Operating Speed 13-16 seconds per 90°
Battery Backup Operation 300 Full Cycles (600 lbs. / 12' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Click Here For More Info
|
 |
Viking G-5 Gate Operators / Swing Gate Openers
Operation 24 VDC with 1/2 H.P. Motor
Main Power Source 120 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 700 lbs.
Max Gate Length 16 Feet
Max Operating Speed 16-18 seconds per 90°
Battery Backup Operation 400 Full Cycles (600 lbs. / 12' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Click Here For More Info
|
 |

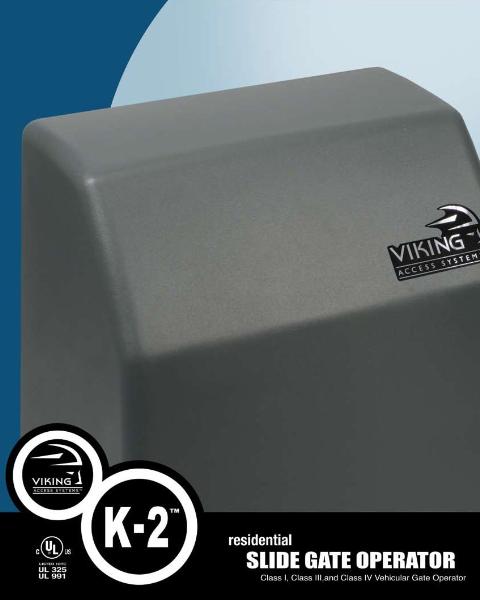

Viking K-2 Slide Gate Operators / Gate Openers
Operation 24 VDC with 1/2 H.P. Motor
Main Power Source 110 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 650 lbs.
Max Gate Length 27 Feet
Max Operating Speed 12" per second
Battery Backup Operation 100 Full Cycles (650 lbs. / 20' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Click Here For More Info
|
 |
Viking L-3 Gate Operator / Slide Gate Operator
Operation 24 VDC with 1/2 H.P. Motor
Main Power Source 120 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 1200 lbs.
Max Gate Length 40 Feet
Max Operating Speed 12" per second
Battery Backup Operation 100 Full Cycles (1000 lbs. / 20' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Click Here For More Info
|
 |

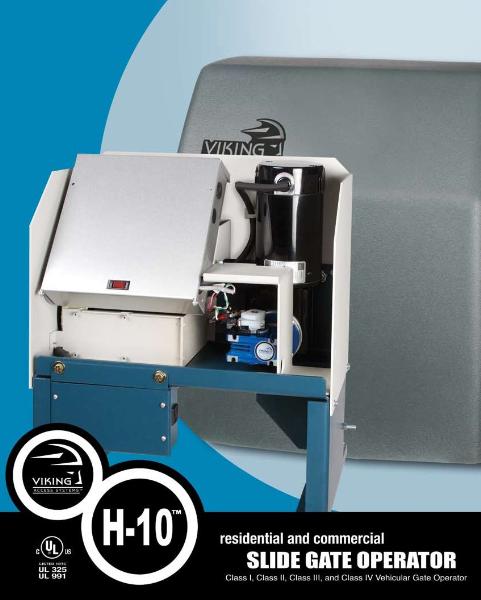

Viking H-10 Gate Opener / Slide Gate Operator
Operation 24 VDC with 1 H.P. Equivalent Motor
Main Power Source 110 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 2000 lbs.
Max Gate Length 40 Feet
Max Operating Speed 12" per second
Battery Backup Operation 100 Full Cycles (1000 lbs. / 20' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Click Here For More Info
|
 |

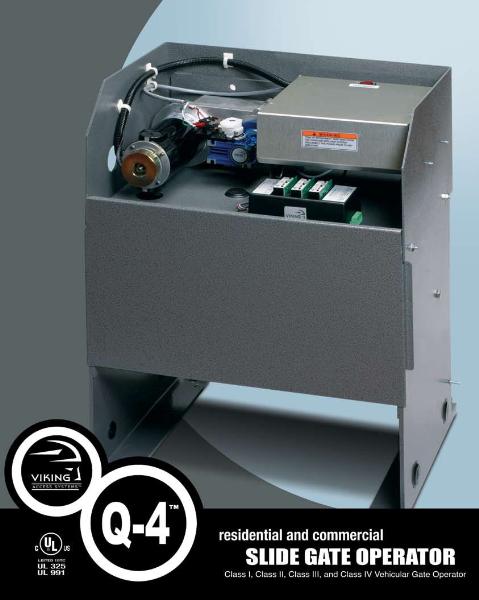

Viking Q-4 Slide Gate Operators / Gate Openers
Operation 24 VDC
Main Power Source 120 / 220 VAC Single Phase
Battery(optional) 33 to 100 AmpHr 12 VDC x 2
Max Gate Weight 4000 lbs.
Max Gate Length 80 Feet
Max Operating Speed up to 16" per second
Battery Backup Operation 100 Full Cycles (2000 lbs. / 40' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Click Here For More Info |
 |

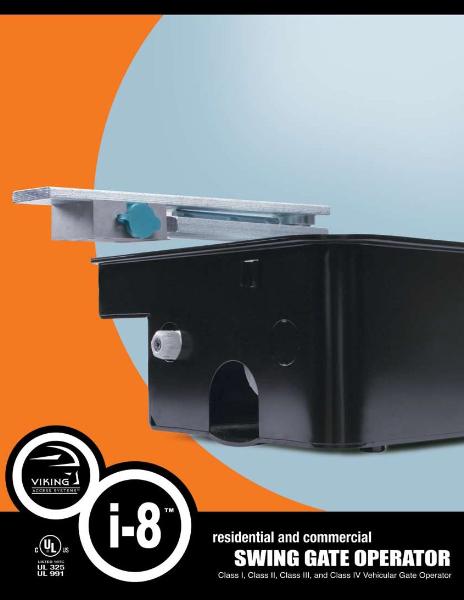

Viking I-8 Swing Gate Openers / Gate Operators
Operation 24 VDC with 1/2 H.P. Motor
Main Power Source 120 / 220 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2
Max Gate Weight 650 lbs.
Max Gate Length 12 Feet
Max Operating Speed 13-15 seconds per 90°
Battery Backup Operation 400 Full Cycles (500 lbs. / 12' gate)
Max Duty Cycle 100% (Continuous Cycles)
Operating Temperature -4°F to +158°F
Click Here For More Info
|
 |

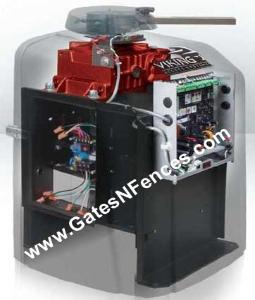

Viking T-21 Swing Gate Operator or Opener
OPERATIONAL SPECIFICATIONS
Max Gate Weight: 1200 lbs./20’ 2000 lbs./ 12’
Main Power Source: 120/220 VAC Single Phase
Batery Backup Operation : 100 Ful Cycles (600lbs. / 12’ gate )
Operation : 24VDC with 1 H.P. Motor
Max Operating Speed : 13-16 seconds per 90º
Battery : 7 AMP HR 12 VDC x 2
Max Duty Cycle : 100% (Continuos Cycles )
Click Here For More Info
|
 |

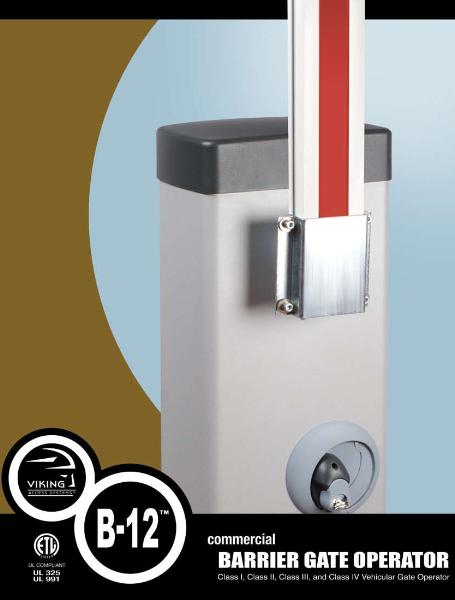

Viking B-12 Barrier Gate Operator
Operation 24 VDC
Main Power Source 120 VAC Single Phase
Battery 7 AmpHr 12 VDC x 2 (optional)
Max Barrier Length Up to 16 Feet
Max Operating Speed 2-4 seconds per opening
Max Duty Cycle 80%
Operating Temperature -4°F to +158°F
Click Here For More Info
|
