Ramset 30 or Ram 30 Swing Gate Openers
• Maximum gate weight: 400 lbs.
• Maximum gate length: 12’
• Gate Traveling Speed: Approx. 90 degrees in 14 seconds
• Overall Dimensions: 16” x 16 ½” x 26”
• Chassis: Heavy duty cut & formed by CNC machinery.
• Cover: High Impact resistant charcoal gray polyethylene.
• Stainless Steel Access Door
• Shipping Weight: 75 lbs
Click Here For More Information |
 |

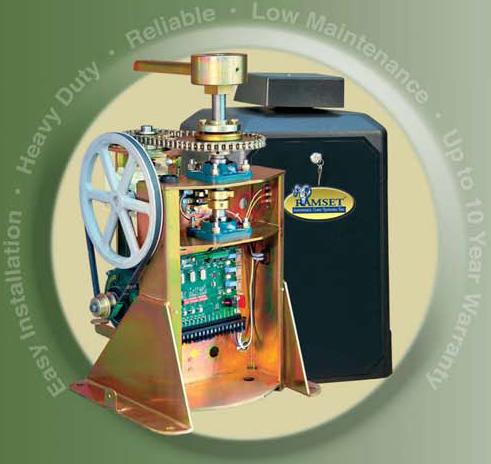

Ramset 300 or Ram 300 Swing Gate Operators
• Maximum gate weight: 800 lbs.
• Maximum gate length: 18’
• Operating Temperature: -10 to 160 degrees F.
• Gate Traveling Speed: Approx. 90 degrees in 14 seconds
• Overall Dimensions: 16 1/2” x 20" x 27”
• Chassis: Heavy duty cut & formed by CNC machinery.
• Stainless Steel Access Door
• Cover: High Impact resistant charcoal gray polyethylene
Click Here For More Information |
 |
Ramset 30 30 or Ram 30 30 Swing Gate Openers
• Maximum gate weight: 3000 lbs.
• Maximum gate length: 22’
• Operating Temperature: -10 to 160 degrees F.
• Gate Traveling Speed: Approx. 90 degrees in 16 seconds
• Overall Dimensions: 23 1/2" x 17 1/2" x 27 1/2”
• Chassis: Heavy duty cut & formed by CNC machinery.
• Cover: High Impact resistant charcoal gray polyethylene.
• Shipping Weight: 250 lbs
Click Here For More Information 3/4 HP
Click Here For More Information 1 HP
|
 |

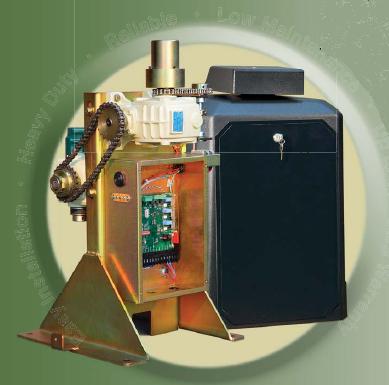

Ramset 3000 Series or Ram 3000 Series Swing Gate Operators
• Maximum gate length: 22’
• Operating Temperature: -10 to 160 degrees F.
• Gate Traveling Speed: Approx. 90 degrees opening in 20 sec.
• Overall Dimensions: 23” x 18 ½” x 28 1/2”.
• Chassis: Heavy duty cut & formed by CNC machinery.
• Stainless Steel Access Door
• Cover: High Impact resistant charcoal gray polyethylene.
• Gear Reducer: Heavy Duty Worm Gear
• Emergency Release: Hand Lever |
RAM 3000
Maximum gate weight
• 800 lbs
Motor: Continuous Duty
• 1/2 Hp
• 120VAC
• 4.5 amps |
RAM 3100
Maximum gate weight
• 1200 lbs
Motor: Continuous Duty
• 3/4 Hp
• 120VAC
• 8.5 amps |
RAM 3200
Maximum gate weight
• 1200 lbs
Motor: Continuous Duty
• 1 Hp
• 220VAC
• 4.5 amps |
Click Here for More Information Ram 3000
Click Here for More Information Ram 3100
Click Here for More Information Ram 3200 |
 |

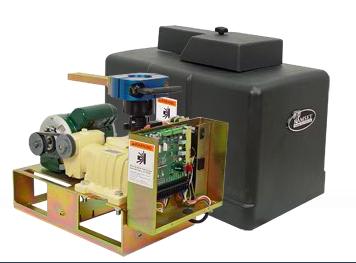

Ramset 302 or Ram 302 Swing Gate Openers
• Maximum gate weight: 700 lbs.
• Maximum gate length: 18’
• Operating Temperature: -10 to 160 degrees F.
• Gate Traveling Speed: Approx. 90 degrees in 16 seconds
• Overall Dimensions: 23" x 13 1/2" x 16 1/2”
• Chassis: Heavy duty cut & formed by CNC machinery.
• Cover: High Impact resistant charcoal gray polyethylene.
|
RAMSET LIMITED 10
YEAR WARRANTY? This warranty
gives you specific legal rights, and you may have other rights that vary from
state to state.? This warranty covers all Ramset models of vehicular gate
operators for a (1) year period, starting wth the original purchase date from a
dealer or distributor, to be free of defects in workmanship on all parts and
components.? Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.? Ramset will
repair or replace, at its discretion, any parts or components it determines to
be defective.? This warranty may be extended on the electric motor,
gearbox reducer and "Intelligate" control board to a period of:? (10) years on
single family residence installations.(7) years on
commercial installations.(3) years on the
"Intelligate" control board.? To obtain the
extended warranty, the warranty card, included with every operator, must be
filled out completely and returned to Ramset with proof of purchase within 90
days of the date of purchase.? Ramset is not responsible for any warranty
cards lost or misplaced in transit to Ramset (certified mail is
recommended).? LIMITATION OF
LIABILITY:? Ramset shall not
under any circumstances be liable for damage or malfunction caused by vandalism,
acts of nature, misuse, or improper installations.Ramset shall not
under any circumstances be liable for special or consequential damages, such as,
but not limited to, damage or loss of other property or equipment, loss of
profits or revenue, or cost of purchased or replacement goods.Ramset shall not
under any circumstances be liable for any additional costs such as, but not
limited to, shipping and handling of components or product, or any charges
associated with the removal, adjusting, or repairing of an operator.Any property
damage or personal injury resulting from this product due to the following is
the responsibility of the installer or purchaser:1. An unsafe
installation, such as, but not limited to, reversing loop(s), reversing photo
eye(s), safety edge, ERD adjustment, and fire box.? (see owner's manual
for safety advise)2. Any
installation that does not meet or excede the safety ratings of both the fire
department and UL codes.3. The
installation of accessories that affect the safety or performance of such
product.
