Viking H10 2nd Gen Slide Gate Operator
|
Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Compatible photo cell More Information here
|
 |
Viking H10 2nd Gen Slide Gate Opener
The newly redesigned H-10™ slide gate operator features the VFlex control board with on-board diagnostics LCD display and a removable power supply box for low voltage wiring. The new chassis design provides easy viewing of the controls and integrated post-mount provisions.
Featuring a built in heater, increased gate capacity of up to 2200 lbs., a 5 Year commercial or 7 Year residential warranty and Viking’s true battery backup system.
The H-10™ includes simple push-button digital limits setup, lockable cover and convenient access to the switch for manual release making this operator an excellent choice for both your residential and commercial needs.
OPERATIONS SPECIFICATIONS
- Operational Voltage ........... 24 DC with 1 HP Motor
- Main Power Source ........... 115 / 230 AC Single Phase
- 24 AC/DC Solar Compatible
- Battery ................................ 7AmpHr 12 DC x 2
- Max Gate Capacity ............. 2200 lbs. / 75'
- Max Operating Speed ......... 12" per Second
- Battery Backup ................... 100 Full Continuous
- Duty Cycle(2200 lbs)
- Maximum Duty Cycle .......... 100% Continuous Cycle
- Operating Temperature ....... -20° F to 160° F
 Spec Sheet Manual
Viking H10 - 2nd Generation - Slide Gate Operator - Commercial / Industrial Use
Add To Cart For Special Pricing - To Low To Advertise

|
 |
|
The newly redesigned H-10™ slide gate operator
Featuring a built in heater, increased gate capacity of up to 2200 lbs., a 5 Year commercial or 7 Year residential warranty and Viking’s true battery backup system.
Kit Include

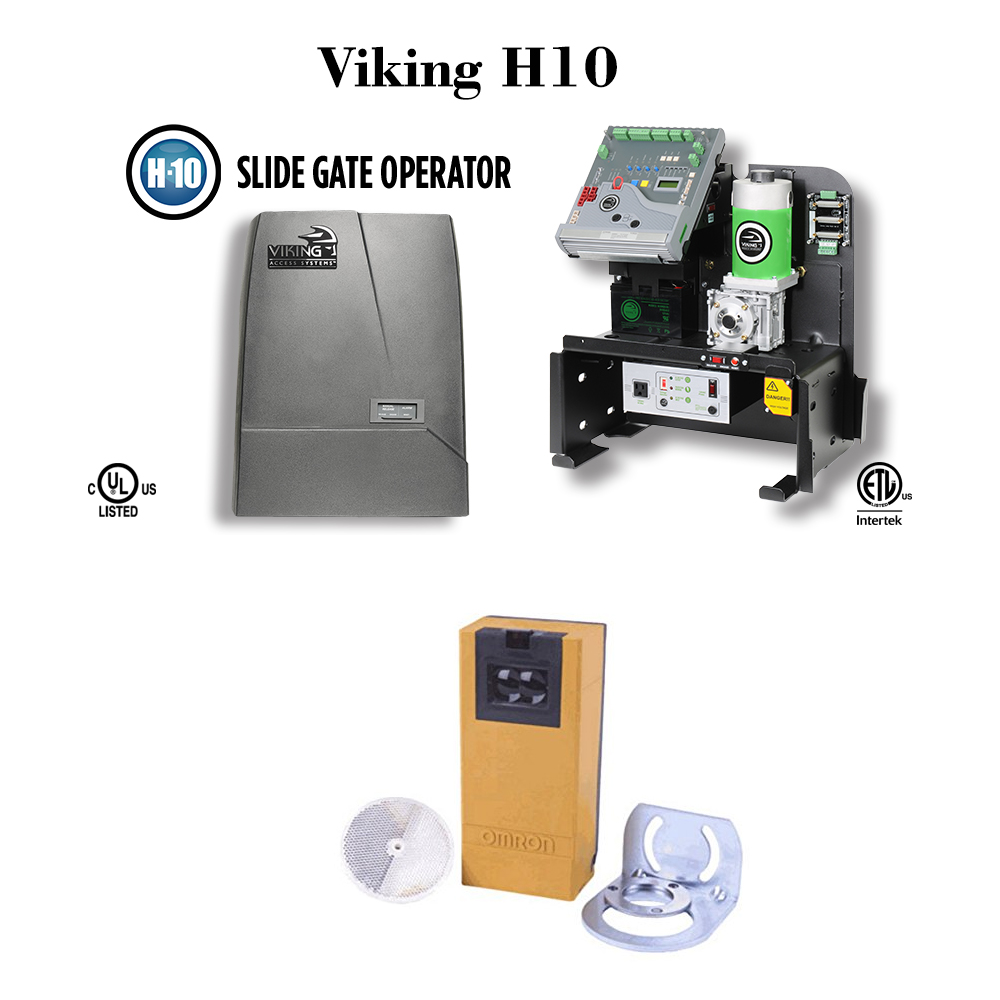

Viking H10 NX Kit 1
Add To Cart For Special Pricing - To Low To Advertise
|
|
 |
|
The newly redesigned H-10™ slide gate operator
Featuring a built in heater, increased gate capacity of up to 2200 lbs., a 5 Year commercial or 7 Year residential warranty and Viking’s true battery backup system.
Kit Include
- Omron Safety Photo Eye
- Multi-Code 109950 Receiver
- Multi-Code Remote Control 308911

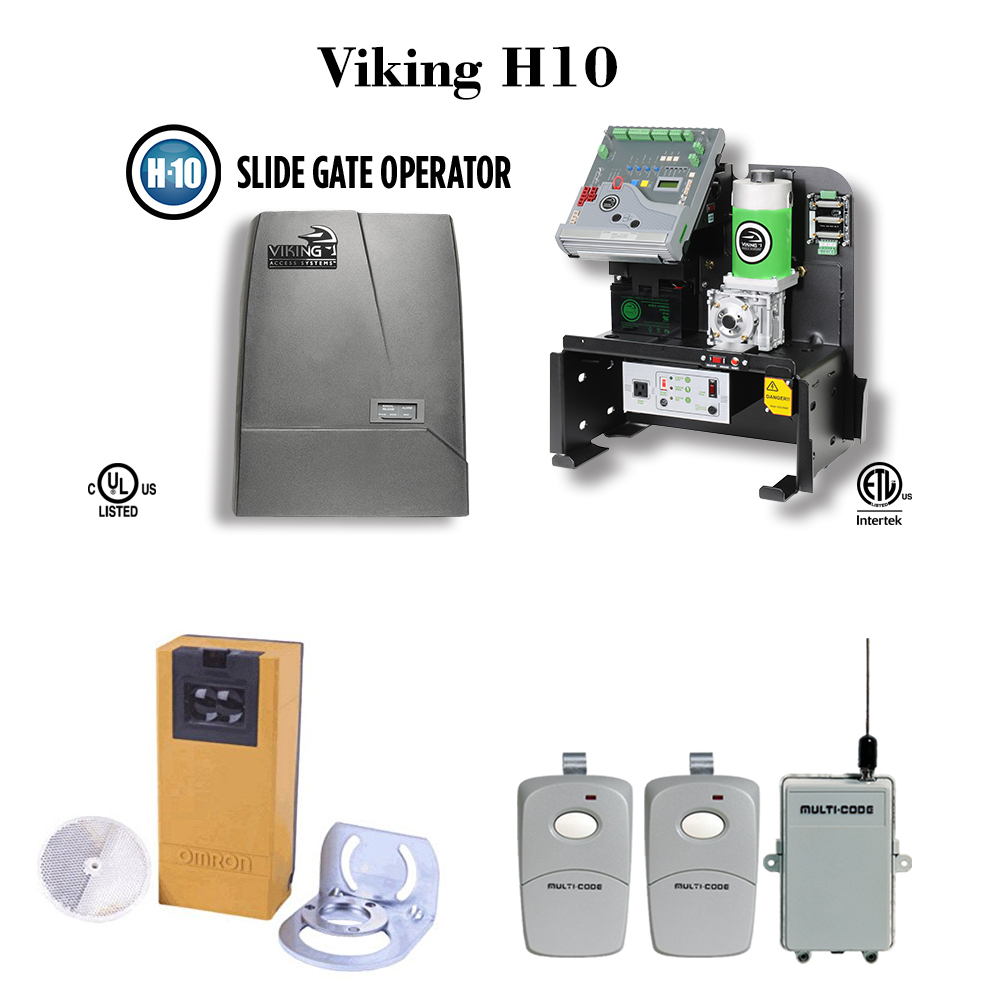

Viking H10 NX Kit 2
Add To Cart For Special Pricing - To Low To Advertise
|
| |
|
|
|
|
|
|
 |
|
The newly redesigned H-10™ slide gate operator
Featuring a built in heater, increased gate capacity of up to 2200 lbs., a 5 Year commercial or 7 Year residential warranty and Viking’s true battery backup system.
Kit Include
- Omron Safety Photo Eye
- Multi-Code 109950 Receiver
- Multi-Code Remote Control 308911
- AAS Wired Keypad Model 26-100L

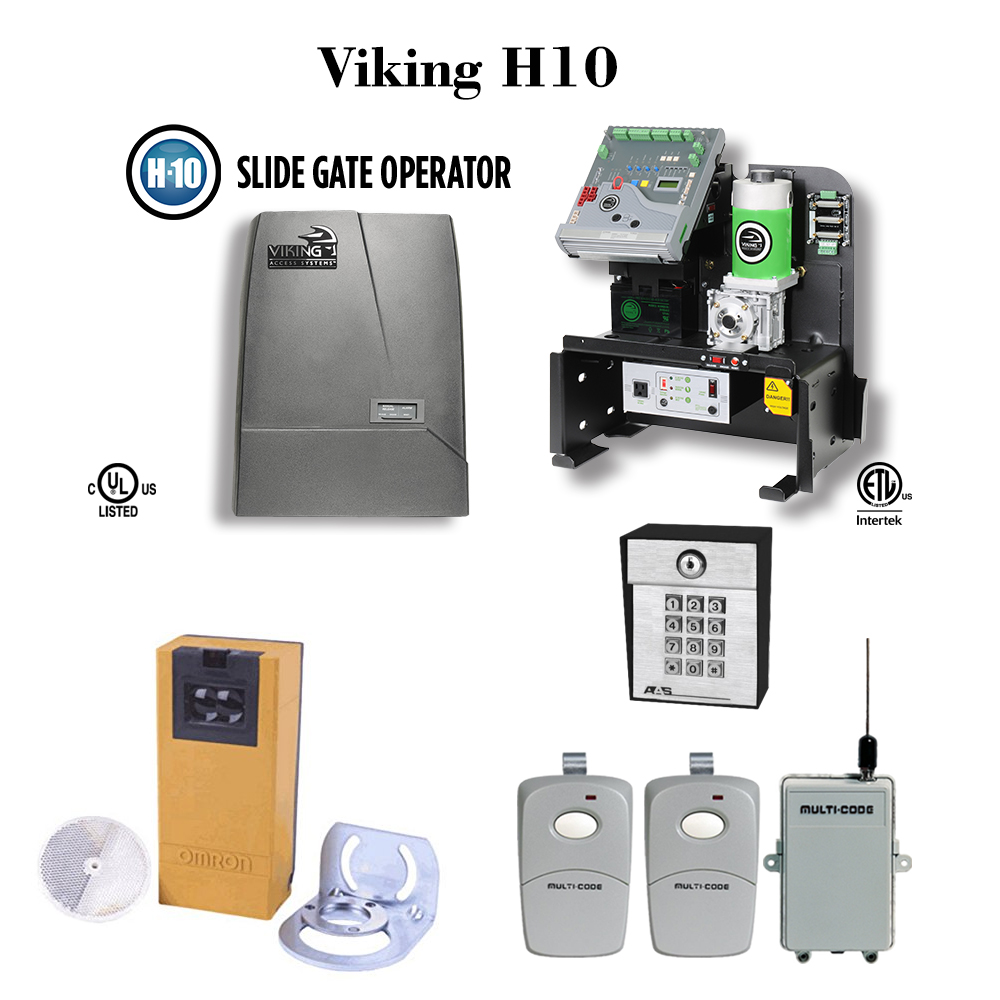

Viking H10 NX Kit 3
Add To Cart For Special Pricing - To Low To Advertise
|
|
 |
|
The newly redesigned H-10™ slide gate operator
Featuring a built in heater, increased gate capacity of up to 2200 lbs., a 5 Year commercial or 7 Year residential warranty and Viking’s true battery backup system.
Kit Include
- Omron Safety Photo Eye
- Multi-Code 109950 Receiver
- Multi-Code Remote Control 308911
- AAS Wired Keypad Model 26-100L
- Ultra Plugin Loop Detector & EMX Lite preformed Loop 4 x 8 ft

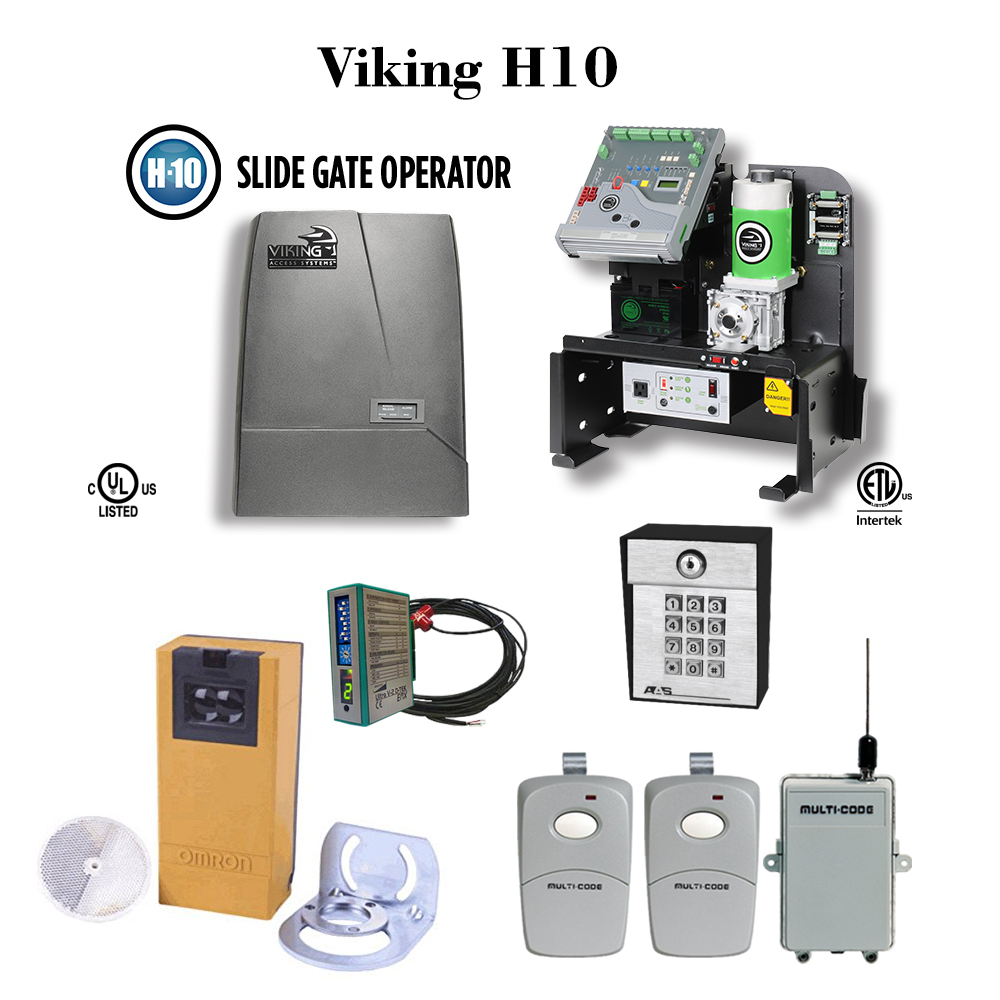

Viking H10 NX Kit 4
Add To Cart For Special Pricing - To Low To Advertise
|
Viking Blue Technology:
Plug and Play connection for “Viking Blue” add-on products.
Viking Blue – Wireless Diagnostic Tool provides diagnostic information wirelessly within range of the Control Board.
Lightening Protection:
Advanced lightning strike protection up 20,000 volts/10,000 Amps
On board surge protection monitoring
Solar Smart:
Power saving technology minimizes curret draw while at standby. New solar enabled feature to maximize operation time.
Diagnostics Display:
On-board LCD Monitor displays voltages, amps, gate status and diagnostics.
Viking RF-Link:
Plug and Play connection for "Viking Wifi" add-on. Remote access to the control board settings, programming, operator diagnostics, gate controls and gate status all from the convenience of a computer or any compatible handheld device.
Motor: 24 VDC 1 HP
Operating Speed: 12 inches per second
Duty Cycle: 100%
Battery Backup: 100 Cycles
Power Source Options: 115V/230V AC single Phase
24V AC/DC
Operating Temp: -20 F to 160° F
|
