Parking & Traffic Control Barrier Arm Operator

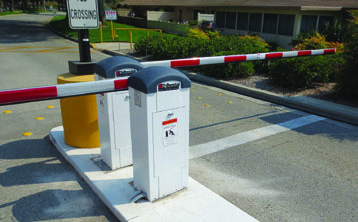

StrongArmPark DC 10 Barrier gate openers

StrongArmPark DC is HySecurity’s innovative electromechanical parking and revenue control barrier arm operator. It provides continuous duty with UPS battery backup and meets the high cycle, high reliability and low maintenance demands of the parking, residential, commercial and industrial automatic gate operator requirements. Intelligent charging system monitors battery conditions to maximize battery life. Sensitive auto rebound feature greatly reduces the possibility of injury or vehicle damage. Configure gate operation to exact user needs with the sophisticated and easy-to-use Smart DC Controller and Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.). Optional Hy8Relay™ provides eight additional relay output terminals to the Smart DC Controller. Each user relay can be configured to perform a specific function, including revenue control options.

The HyProtect™ advanced breakaway arm mount is standard equipment for all StrongArmPark DC operators. If a vehicle hits the arm, the bolts in the mount break allowing the arm to swing out of the way, lessening damage to the vehicle and operator and reducing the cost of arm replacement. Refit the arm in less than a minute! The HyProtect™ arm mount adapts easily to typical aftermarket arms such as 1 x 4 inch wood or 2.5 inch square PVC.

StrongArmPark DC delivers that same uncompromising quality to commercial customers, where ease of use, consistent operation, low maintenance, long life and high reliability is expected. For easy integration into parking systems, HySecurity offers a number of parking related relay options including an Hy8Relay™ which adds eight output relays to the Smart DC Controller. HySecurity strives for simplicity. Easy to install. Easy to configure. Easy to maintain. Easy to troubleshoot and repair. Your StrongArmPark DC barrier arm is built to last.

*Actual UPS cycles depend on accessory power draw, frequency of cycles, battery health, ambient temperature and other conditions.



StrongArmPark DC 10

Arm Length Max. up to 10 ft (2.4 and 3 m) standard length
Open/Close Time 3 speeds: 1.5/2/2.5 seconds. Field adjustable
Arm Design Custom aluminum up to 10 ft. Articulating arm; 8 ft (2.4 m) clear/10 ft (3m) extended or 9 ft (2.7 m) clear/11 ft (3.4) extended, combination aluminum-PVC
Duty Cycle Continuous*
Warranty 2 year

StrongArmPark DC 10

StrongArmPark DCS 10

StrongArmPark DC 14

Arm Length Max. 10, 12, and 14 ft (3, 3.7 and 4.3 m) standard lengths
Open/Close Time 3 speeds: 2.5/3/3.5 seconds. Field adjustable
Arm Design Custom aluminum
Duty Cycle Continuous*
Warranty 2 year

StrongArmPark DC 14

StrongArmPark DCS 14
