Viking L3 2nd Gen Slide Gate Operator


Viking is proud to announce the 2nd generation L3 Slide gate operator. A few of the great new features include:

 The newly redesigned L-3™ slide gate operator features the VFlex control board with on-board diagnostics LCD display and a removable power supply box for low voltage wiring.

The new chassis design provides easy viewing of the controls and integrated post-mount provisions. Featuring a built in heater, increased gate capacity of up to 1600 lbs., a 5 Year commercial or 7 Year residential warranty and Viking’s true battery backup system. The L-3™ includes simple push-button digital limits setup, lockable cover and convenient access to the switch for manual release making this operator an excellent choice for both your residential and commercial needs.

    OPERATIONS SPECIFICATIONS

  • Operational Voltage .......... 24 DC with 1/2 HP Motor
  • Main Power Source ......... 115 / 230 AC Single Phase
  • 24 AC/DC Solar Compatible
  • Battery ............................. 7AmpHr 12 DC x 2
  • Max Gate Capacity .......... 1600 lbs. / 60'
  • Max Operating Speed ...... 12" per Second
  • Battery Backup ................ 100 Full Continuous
  • Duty Cycle(1600 lbs)
  • Maximum Duty Cycle ....... 100% Continuous Cycle
  • Operating Temperature .... -20° F to 160° F
  • #40 Chain Kit, Nickle Coated

 Spec Sheet  Manual

Viking L3 - 2nd Generation - Slide Gate Operator - Commercial Use

Add To Cart For Special Pricing - To Low To Advertise

Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Compatible photo cell
More Information here



  The newly redesigned L-3™ slide gate operator features the VFlex control board with on-board diagnostics LCD display and a removable power supply box for low voltage wiring.

Kit Include

  • Seco Alarm Monitored Photo Cell

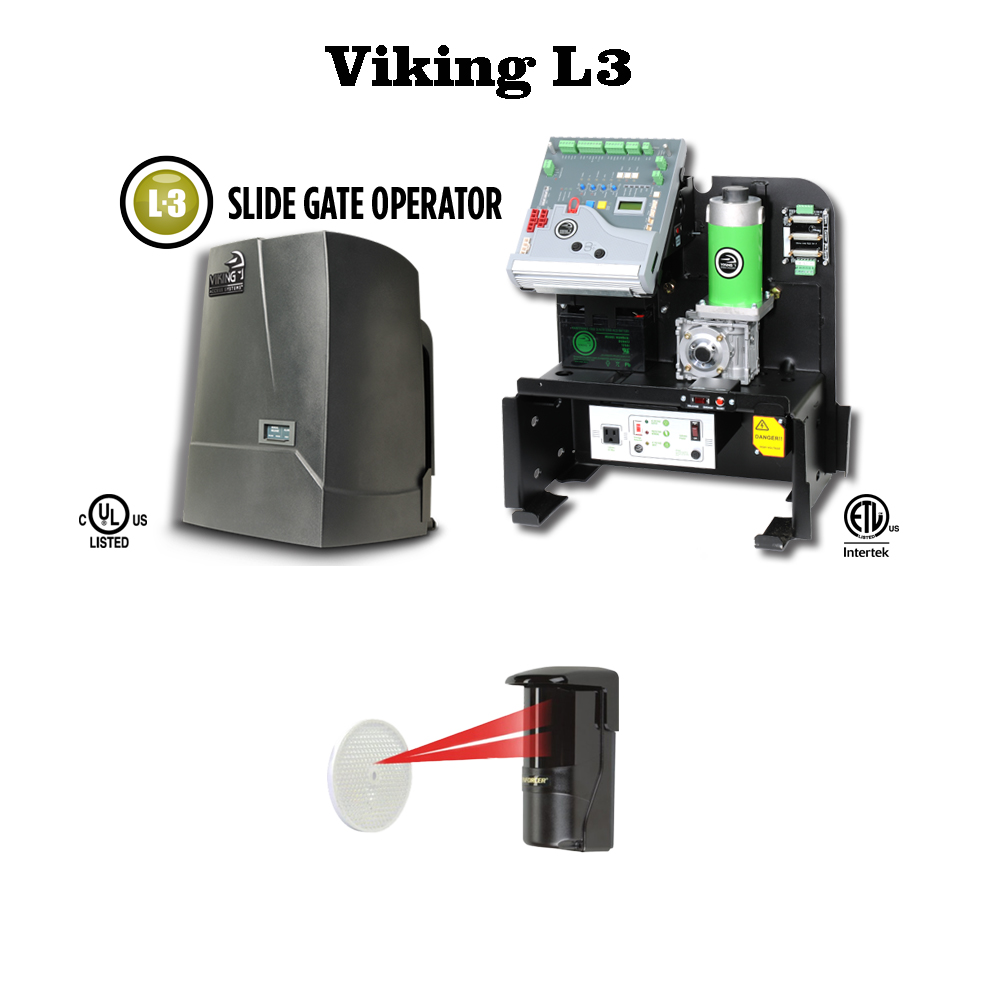

Viking L3 NX Kit 1



Add To Cart For Special Pricing - To Low To Advertise



The newly redesigned L-3™ slide gate operator features the VFlex control board with on-board diagnostics LCD display and a removable power supply box for low voltage wiring.

Kit Include

  • Seco Alarm Monitored Photo Cell
  • L.A Remote control and transmitter Kit 433 Mhz

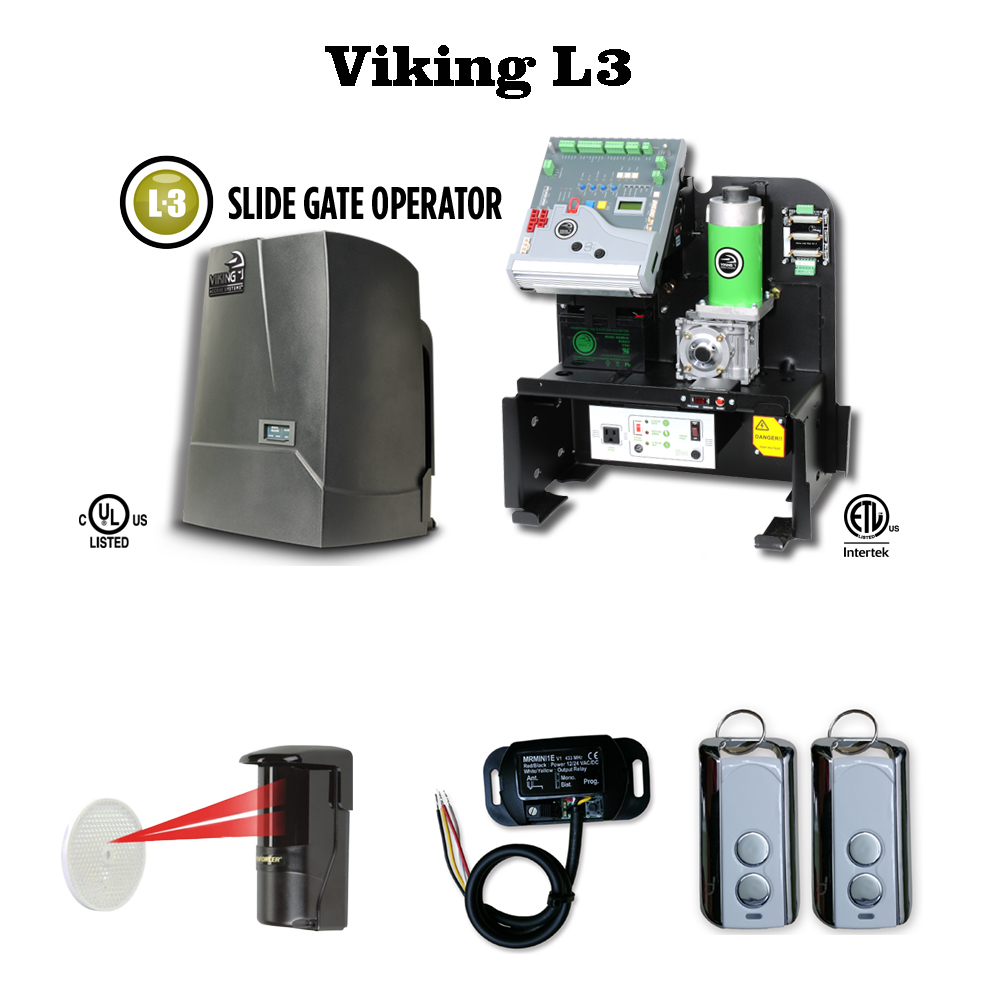

Viking L3 NX Kit 2

Add To Cart For Special Pricing - To Low To Advertise




The newly redesigned L-3™ slide gate operator features the VFlex control board with on-board diagnostics LCD display and a removable power supply box for low voltage wiring.

Kit Include

  • Seco Alarm Monitored Photo Cell
  • L.A Remote control and transmitter Kit 433 Mhz
  • L.A Wireless Keypad 433 MHz

Viking L3 NX Kit 3



Add To Cart For Special Pricing - To Low To Advertise



The newly redesigned L-3™ slide gate operator features the VFlex control board with on-board diagnostics LCD display and a removable power supply box for low voltage wiring.

Kit Include

  • Seco Alarm Monitored Photo Cell
  • L.A Remote control and transmitter Kit 433 Mhz
  • L.A Wireless Keypad 433 MHz
  • EMX Carsense 202 Exit Wand

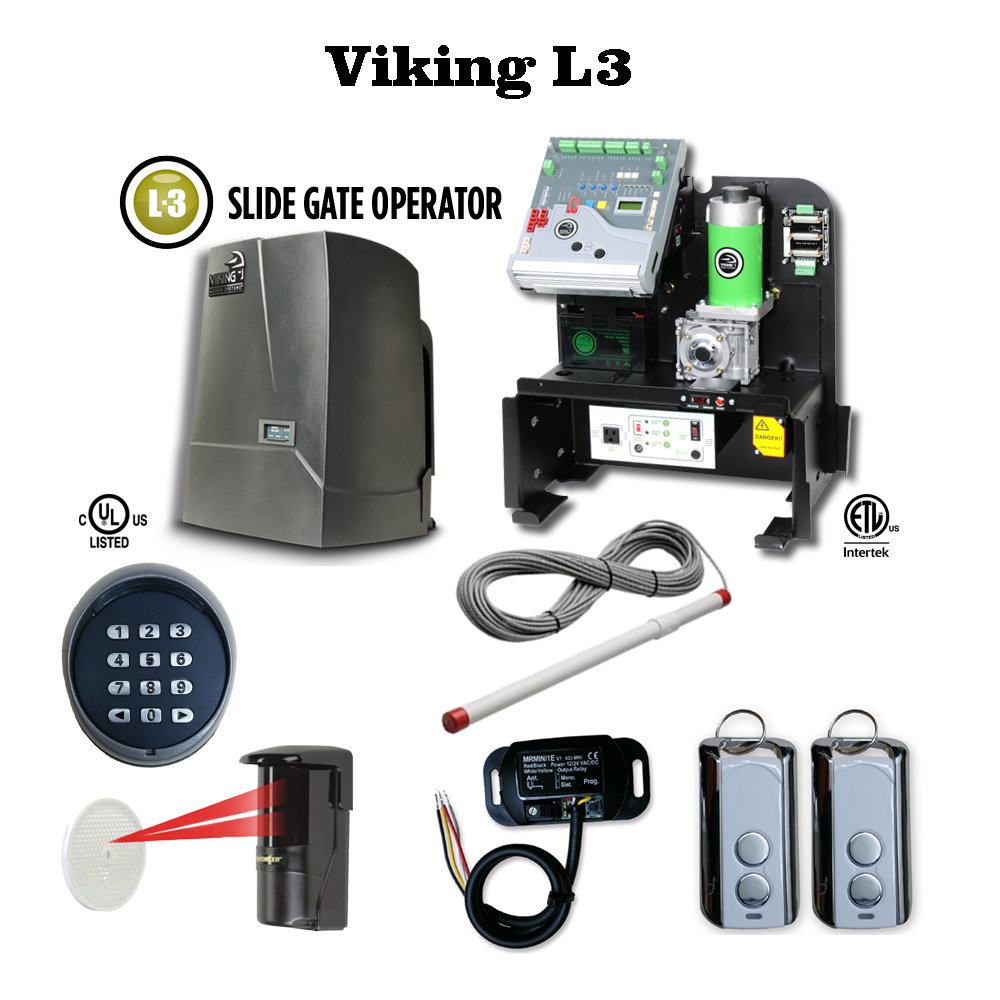

Viking L3 NX Kit 4

Add To Cart For Special Pricing - To Low To Advertise



Viking Blue Technology:
Plug and Play connection for “Viking Blue” add-on products.
Viking Blue – Wireless Diagnostic Tool provides diagnostic information wirelessly within range of the Control Board.

Lightening Protection:
Advanced lightning strike protection up 20,000 volts/10,000 Amps
On board surge protection monitoring

Solar Smart:
Power saving technology minimizes curret draw while at standby. New solar enabled feature to maximize operation time.

Diagnostics Display:
On-board LCD Monitor displays voltages, amps, gate status and diagnostics.

Viking RF-Link:
Plug and Play connection for "Viking Wifi" add-on. Remote access to the control board settings, programming, operator diagnostics, gate controls and gate status all from the convenience of a computer or any compatible handheld device.

Motor: 24 VDC 1/2 HP
Operating Speed: 12 inches per second
Duty Cycle: 100%
Battery Backup: 100 Cycles
Power Source Options: 115V/230V AC single Phase
24V AC/DC
Operating Temp: -20 F to 160° F
