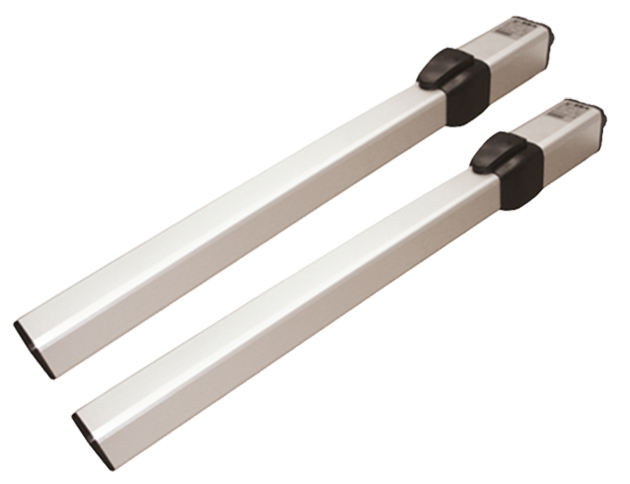

SEA Mini Tank Double Unit KIT- Hydraulic Swing Operator For Residential Use
- 2 Hydraulic operator MINI TANK SC
- 1 Control unit GATE 2 DG with RF UNI 433 MHz plug-in receiver
Features:
- SEA Total Quality: All parts are manufactured and tested IN-HOUSE
- The hydraulic system grants high and long term performances
- By-pass valves as an Anti-Crush safety system
- Electronic slow-down in opening and closing (GATE 2).
- Concealed positive stops in option.
- Manual release with key in case of power failure.
- Linear encoder for the best setting on reverse and position management (optional)
- Operator with external, hydraulic locks for easy replacement
- Standard version with lock in closing (SC)
- Duty Cycles*: 40 per hour
- Piston stroke 270 mm / 10.6 inchesasd
 Spec Sheet
|
SEA Mini Tank Double with Control Box -- $ 2,048.00

| Code |
Description |
Locks |
Stroke |
Max leaf
length |
Max leaf
weight |
Operator
weight |
Opening
time |
| 101SC2S0-CSA |
MINI TANK SC 110V |
Closing |
10 3/5 |
10 feet |
800 pounds |
16 pounds |
13 sec. / 90° |
ACCESSORIES
| 12710305 |
SEA Positive Stop (1 pcs) -- $ 105.31 |
|
| 12710295 |
SEA External Release with Box (1 pcs) -- $ 138.45 |
|
| 23105012 |
SEA Heater -- $ 86.24 |
|
| OIL |
SEA Oil in 1 Quart Bottle -- $ 40.83 |
|
| 16700055 |
SEA Electric Lock with Cylinder Kit -- $ 170.34 |
|
| G-LOCK |
EMX Outdoor Magnetic Lock G-Lock 1200lbs -$ 223.00 |
|
| 23105335 |
SEA Safety Gate (1 pcs) -- $ 101.49 |
|
| 12715070 |
SEA Post Bracket with Screws (1 pcs) -- $ 48.48 |
|
| 23105049 |
SEA Battery Back Up for A.C. Motors -- $ 1,023.52 |
|
| 23120420 |
SEA RF Receiver Module - Plug In 433MHz -- $ 23.76 |
|
CONTROL BOARDS - Replacement Only
| 2302a110g2-A |
Gate 2 |
receiver 433 Mhz and enclosure-- $ 480.41 |
|
| 2302A110g2PW |
Gate 2 |
pre-wired* receiver 433 Mhz and enclosure -- $ 932.75 |
|
| 2302A110g2-Ar |
Gate 2 |
replace only circuit -- $ 425.00 |
|
* GATE 2 Prewired: GATE 2 + Loop Module + Electric Switch + Plugs + Large Box + 2 plug-in Loop |
