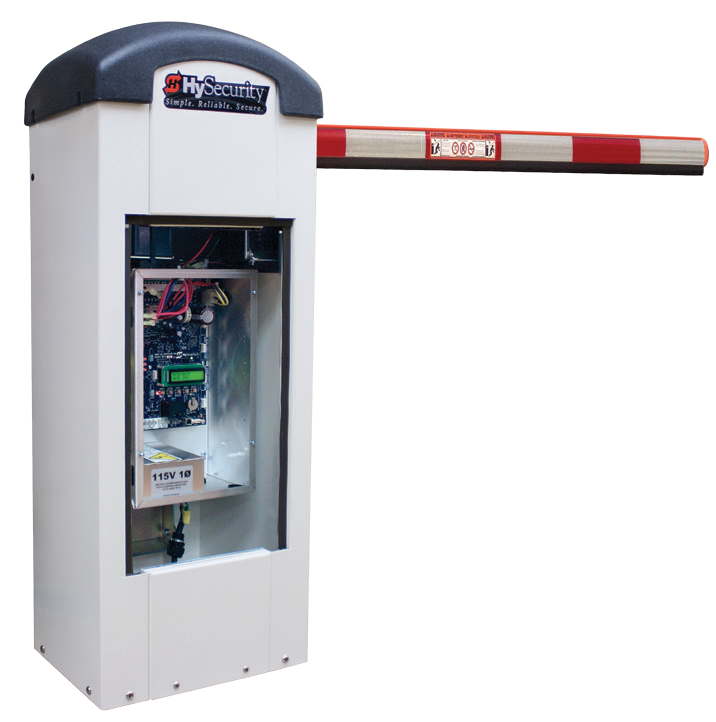

StrongArmPark DC 10 Barrier gate openers
|
|
 |
Advanced HyProtect™ breakaway arm mount
Every StrongArmPark DC™ operator includes an advanced HyProtect breakaway arm mount, which reduces the cost of arm replacement due to a vehicle strike. The HyProtect breakaway arm mount adapts easily to typical aftermarket arms such as 1 x 4 inch wood or 2.5 inch square PVC.
HySecurity barrier arms:
• Aluminum arms available in standard lengths of 8, 10, 12 and 14 ft (2.4, 3, 3.7 and 4.3 m) with LED lighting and bumper
• Articulating arms with bumper, ideal for low clearance garages. Available in 8 ft clear/10 ft extended (2.4 m/3 m) or 9 ft clear/11 ft extended (2.7 m/3.4 m)
StrongArmPark DC delivers that same uncompromising quality to commercial customers, where ease of use, consistent operation, low maintenance, long life and high reliability is expected.
For easy integration into parking systems, HySecurity offers a number of parking related relay options including an Hy8Relay™ which adds eight output relays to the Smart DC Controller.
HySecurity strives for simplicity. Easy to install. Easy to configure. Easy to maintain. Easy to troubleshoot and repair. Your StrongArmPark DC barrier arm is built to last.
Operator Components
| Model |
Part Number |
Est. Ship Weight |
Shipping Dimensions |
Shipping Class |
| StrongArm Park DC 10 |
StrongArm Park DC 10 |
170 lb |
48"w x 26"d x 20"h |
70 |
Regular Price: $
Our Price: $
StrongArmPark DC 10 Barrier gate openers
  |
|
Parking Barrier Arm, up to 10 ft arm, Open/Close: 1.5/2/2.5 seconds STRONGARMPARK DC 10 is an extremely reliable, continuous duty, electromechanical, UPS battery backed-up parking barrier arm operator designed for millions of maintenance-free cycles in access and revenue control applications. Every StrongArmPark DC™ operator includes an advanced HyProtect™ breakaway arm mount, which reduces the cost of arm replacement due to a vehicle strike. Safety features include resilient bumper along base and Dynamic Reversing Sensor feature, to reduce possibility of injury or vehicle damage. Cycle up to 10 ft arms, starting and stopping gracefully with three field-adjustable Open/Close speeds: 1.5/2/2.5 seconds. Strong, durable, heat resistant aluminum standard arms have bright, highly visible LED lights across the top of arm, decreasing likelihood of vehicle strikes.
Use HySecurity articulating arms for site clearance issues such as underground parking garages. Zinc-plated, white powder coated chassis provides excellent abrasion and corrosion resistance for an enduring, attractive finish. UPS standard back-up provides thousand plus cycles after AC power loss.* A HySecurity designed intelligent charging system monitors battery condition to maximize battery life. Easily configure gate operation to specific site requirements with unique and unequalled Smart DC Controller. PC interface provided for easy configuration and quick troubleshooting using Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.). Programmable dual gate or sequenced gate integration.
Two configurable user relays plus optional Hy8Relay™ - an extended relay module providing eight additional programmable relay outputs. StrongArmPark DC meets nearly any access and revenue control need. Monitor and communicate gate system and accessory malfunction or gate breach alert to service technician or security command and control in real time via Ethernet/fiber, using optional HyNet™ web based accessory. Security or operational alerts can be programmed for subscribers. The last 300 events logged in non-volatile memory can be downloaded from a remote location. Available soon. Note: Attachment plates for 1 x 4 inch wood and 2.5 inch square PVC downspout aftermarket arms are available. Barrier arm and arm specific mounting bracket are not included in the StrongArmPark DC base prices. See "StrongArmPark DC Options & Accessories" for available arm configurations.
| Duty Cycle |
Continuous* |
| Arm Length Max |
up to 10 ft (2.4 and 3 m) standard length |
| Arm Design |
Custom aluminum up to 10 ft. Articulating arm; 8 ft (2.4 m) clear/10 ft (3m) extended or 9 ft (2.7 m) clear/11 ft (3.4) extended, combination aluminum-PVC |
| Full Open Angle |
Adjustable 90º ± 10º |
| Horsepower |
1/2 hp |
| Drive |
Electromechanical |
| Uninterruptible Power Supply |
Two 8 Ah batteries. Operates for thousand plus cycles after AC power loss.* Field configurable to fail open or secure when batteries deplete. |
| Voltage Input |
115VAC, 3A, 50/60 Hz or 208-230VAC, 1.5A, 50/60 Hz |
| Accessory Power |
12VDC and 24VDC 1A each |
| Temperature Rating |
-13ºF to 158ºF (-25ºC to 70ºC) |
| Communication |
USB, RS-232, RS-485; Ethernet/fiber using optional HyNet™ accessory |
| User Controls |
Smart DC Controller with 70+ configurable settings. 32 character LCD display and 5 tact buttons or a PC using S.T.A.R.T. software. |
| Relays |
Two configurable user relays: 30VDC, 3A solid state and 250VAC, 10A electromechanical. Extended Hy8Relay™ module available |
| ETL Listed (UL325) |
Usage Class I, II, III, IV |
| Finish |
Zinc plated with powder coating |
| Cycle Tested |
2 million cycles |
| Warranty |
2 year |
| * |
*The operator’s normal duty cycle and the actual number of arm cycles available from battery depends upon arm length/weight, battery size, state of charge and health, ambient temperature, accessory power draw and frequency of arm cycles during power outage. |
|
