GATE OPENER BRANDS



Store  :  Apollo Gate Openers Swing Slide Commercial Residential Gate Operators



 Manual    Spec Sheet



Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Compatible photo cell
More Information here

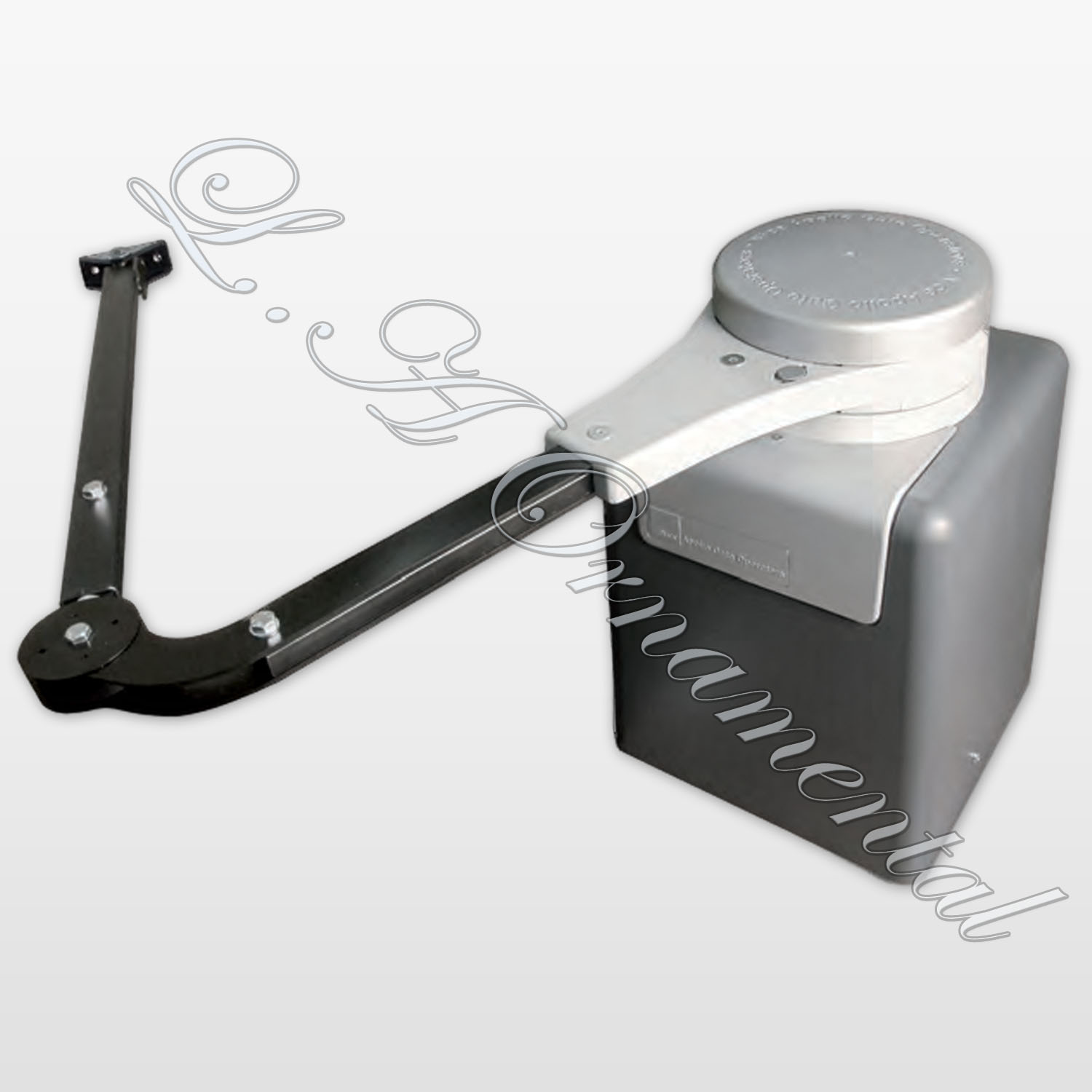

APollo-4500SW Swing Gate Openers

Ideal for commercial applications. Operator for swing gates up to 600 lbs weight and 20 ft length. 1 HP. Articulating Arm, Integrated control unit 1050.

24 V motor, 120 Vac Slide gate operator. Easy to program: speed, force, sensitivity to obstacles and other parameters can be simply adjusted according to specific site and installation conditions and needs.

Easy to install: all parts requiring initial adjustment, such as the limit switches, are easily accessible. Thanks to the pivot support, the integrated control unit 1050 can be tilted to make programming more comfortable: its LCD large display shows the status of the operator and allows easy visual observation of the input leds.

Innovative: the integrated 1050 circuit board offers several features, such as 7 day programming, protection against electric shocks, programmable connections to external accessories such as lights, keypads, etc. Plug-in receiver: up to 1,000 rolling-code transmitters, with more than 2X range than industry standard.

Master/slave management: two units synchronized for dual application. Reliable: the operator is safely protected from water and dust by the cover which can be easily removed to access the mechanical release in case of emergency. Corrosion resistant. The inside controls are separated from the external drive assembly to avoid water, dirty or small animals. Smart management of the battery charging. Solar power compatible.

  • Input Power: 120VAC
  • Motor: 24VDC 1HP
  • Maximum Speed: 1.8 (RPM)
  • Opening Speed: 12-18 seconds (90 degree)
  • Maximum Torque: 850 (Nm)
  • Size: 18.1 L x 18.5 W x 27.5 H
  • Weight:155 lbs

Features:

  • 24 V motors, 120 Vac main power.
  • 1HP
  • Easy to install
  • LCD Display
  • Plug-in receiver: up to 1,000 rolling-code transmitters
  • 7 day programmable event timer
  • Innovative Obstacle Detection System
  • Surge Protection
  • Programmable Inputs and Outputs
  • Advanced Dual Gate Management
  • Solar power compatible
  • Built in solar regulator
  • Corrosion resistant
  • Solar power compatible

APollo-4500SW Swing Gate Openers - (Up to 20 ft & 1000lbs Per Leaf) -1 HP Includes 1050 Control Board -- $ 2,033.22

APollo-4300SW Swing Gate Openers - (Up to 16ft & 600lbs Per Leaf) -½ HP Includes 1050 Control Board -- $ 1,550.15

Specs:

Operates swing gates up to 20 ft., 1000 lbs.
24 VDC operator commercial applications
Easy column or post installation, no welding required
External quick release with key allowing manual operation
Great innovative functions with the 1050 control board.
