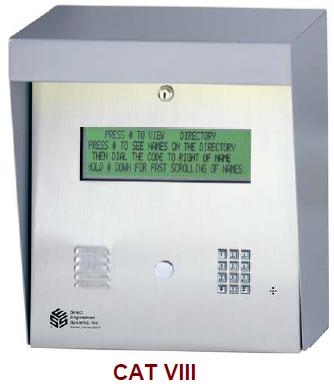

The CAT VIII and BlackCAT provide outstanding standard features:
Display provides 8 names at a time with characters that are 5/8” (14 mm) high and the directory scrolls forward and backward.
The LCD directory display is provided with back lighting, and is very clear even in bright sun light.
14,400 baud modem.
13,000 event log buffer.
The CAT 8 and BlackCAT will control two entrances, without options.
2 reader inputs (ready to add readers and cards or transmitters and receivers)
RS485 expansion port (add up to 12 additional readers and 256 relays)
16 time zones, 16 access levels and 16 access groups.
Maximum phone number capacity is 2,700.
Maximum card (transmitter) capacity is 16,200 (each with a name attached).
The CAT VIII and BlackCAT provide outstanding optional features:
NIC, Network Interface Card that provides a plug-in TCP/IP Network interface.
CATCOM-RF is a wireless RS485 data connection. Wireless and wired RS485 interfaces can coexist within the same CAT system.
System expansion using the 4 entrance and relay expansion modules.

 Spec Sheet

 Manual

STANDARD FEATURES CAPACITIES

• Up to 2,700 phone numbers.
• Up to 2,700 PIN codes.
• Up to 16,200 cards each with a reference name.
• Up to 16 entrances, (2 entrances standard)
• Controls as many as 256 relays for elevator and auxiliary control when adding the CATRLY8. (relay expansion modules)
• 8 CAT’s can be connected to one phone line using MUI’s, multi unit interface (one each) and all can be programmed remotely.
• 13,000 Event Log Buffer (before wrapping)
• 56K Baud modem.
• Program remotely with optional Selcom Secured compatible with Windows XP or Vista.
• Code / Phone / Card capacities can be upgraded remotely by the factory, through dealers only.
• Display provides 8 names per screen, 5/8” high (14 mm).
• Display is backlit with two columns of 4 names each.
• Two weigand card reader inputs.
• Two entrance control with 2 relays.
• RS485 expansion port.
• Data base has 6 cards per Code / Phone number.
• 56K baud modem.
• 13,000 event log buffer.
• Clock calendar.
• Non-volatile memory.
• Card/Code expansion remotely.
• Dials Touch ToneTM or pulse.
• Programmable via modem.
• Remotely activated speaker and microphone.
• Programmable PIN lengths, 1 to 6.
• REX (request to exit), alarm shunt and door sense input.
****Multi-level surge suppression protects all
electrical connections. Must be grounded.***

OPTIONS
• CATCOM-RF wireless data connection for expansion.
• NIC, network interface card provides a TCP/IP interface for network programming.
• OPTK4DR is a plug-on module for expanding the CAT
VIII from 2 to 4 reader inputs, internally.
• CATDR4 is a remote 4 door module that attaches to a CAT system to expand it’s capability up to 14 or 16 entrances depending on CAT configuration.
• CATRLY8 is a elevator / aux. relay module that contains 8 relays and can be programmed for elevator control, light or HVAC control. Up to 32 CATRLY8 can be connected to a CAT system.
• RS232 or current loop serial communications.
• Flush mount ring (CAT8 only).
• Special finishes available upon request.

APPLICATIONS
CAT8 is an all weather enclosure.
Residential gated communities or commercial use.
Apartment buildings / Condominiums / Townhouses.
Retirement homes / Convalescent homes.
Hospitals, Office buildings, Banks, Factories.

SPECIFICATIONS
• CAT8 SIZE: 16 1/4” wide x 19” high x 6” at top
and 3 3/8” at bottom.
• Construction (both):Hood 11 Ga. structural aluminum
primed and painted weather resistant finish; Front
Panel- 16 Ga. brushed stainless steel.
• Shipping Weight: approx. 12 to 15 lbs.
• Power input: 18 VAC 40 VA UL listed transformer
(provided with unit).
• CAT8 Mounting: Surface, flush or pedestal mount.
• Memory type: Non-volatile
• Tone Detection: Crystal controlled, capable of
detecting short burst 50MS DTMF tone.
• Telephone Line: Standard voice grade RJ11C Jack.
• CAT8 Hood Lighting: Low voltage incandescent.

GENERAL:
• Operating Environment: Temp: -4º to 104º F
(-20º to 40º C)
• Relative humidity: 5% to 95% non-condensing.
• Relay Output: Form C dry contact 28V @ 3AMP.
• FCC Reg.: #CPW74F63331MTE.
• Ringer Equivalence: 0.2A - 0.5B.
• ARL LISTED (UL equivalent)
