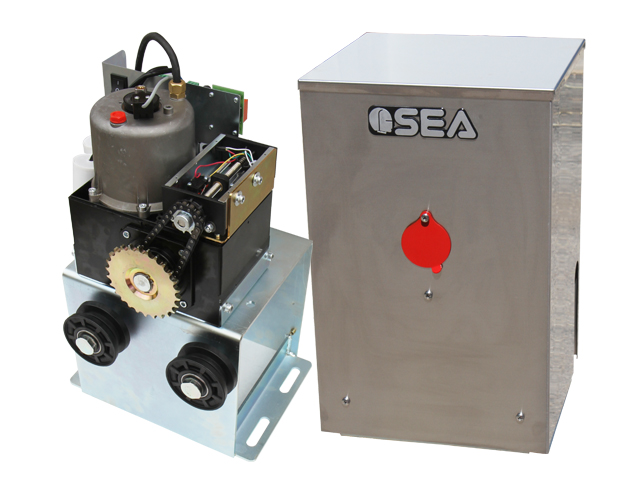

SEA Lepus Box Slide Gate Operator, SEA Lepus Box Slide Operator
|
|
 |
POWERFUL COMMERCIAL Chain SLIDING OPERATOR
The reliability of the oil-bath motor-reducer.
• Sliding motor for heavy duty application.
• For gates up to 37 feet length and 1200 pounds.
• SEA TOTAL QUALITY: all parts are manufactured and tested
“IN HOUSE”.
• Electric motor and reduction gear are constantly immersed
in oil-bath, granting long term performance.
• Gears housed in a single piece cast aluminum block.
• Mechanical clutch in oil-bath as an anti-crush safety device.
• Electronic clutch as an extra anti-crush safety device.
• Reversing system in case of obstruction (ENCODER).
• Easy and unique manual release with key.
• Ball bearing wheels.
• Polyethylene case with stainless steel door to access the
manual release.
• Multi-function control board Pre-Gate 2 with plug-in loop
detectors.
• Buzzer alarm.
• Duty Cycles*: 60 per hour.
Warranty Information:
- Operator: 2-year warranty
- Control Board: 1-year warranty
 Manual
Spec Sheet
SEA Lepus Box - Chain -- $ 1,706.25

|
| Code |
Description |
Max leaf
length |
Max leaf
weight |
Operator
weight |
Opening
time |
| 110MEcobox-a |
Lepus box |
37 feet |
1200 pounds |
95 pounds |
13 inch / sec |
ACCESSORIES
| G-LOCK |
Magnetic lock |
| OIL |
Oil in 1 quart bottle |
| 23105012 |
Heater |
• The package includes 20 feet of chain (type 40), external receiver, remote control SMART 433 Mhz.
|
