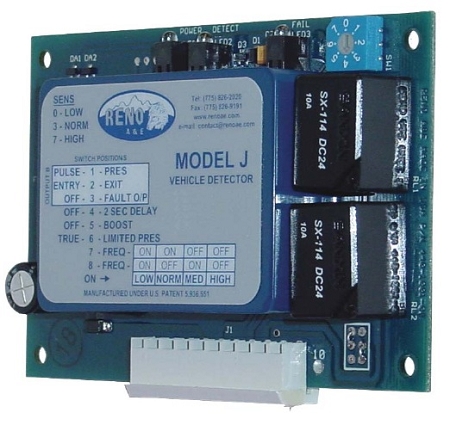

RENO J PC Board Exit Loop Detector, RENO PC Board Style Loop Detector |
![](../images/Reno Loop/reno-j-series-pc-board-type-loop-detector.jpg) |
RENO J PC Board Exit Loop Detector, RENO PC Board Style Loop Detector |
Vehicle Detector, PC Board Type; Single Channel Input / Dual Relay Outputs The Model J is a single channel, dual output, PC Board type vehicle detector that incorporates the reliable vehicle detection technology found in all of Reno A & E’s vehicle detectors. All detector functions and settings are easy to configure using a set of eight external DIP switches and an eight- position rotary switch.
![](../images/download-manual.jpg)
RENO J PC Board Exit Loop Detector, RENO PC Board Style Loop Detector --- $ 105.95
![](https://laornamental.com/store/shopsite-images/en-US/buttons/classy_deep_red/classy_deep_red_pr_view_cart.gif)
|
|
RENO Model J Series
Vehicle Detector, PC Board Type; Single Channel Input / Dual Relay
Outputs
The Model J is a single channel, dual output, PC Board type vehicle
detector that incorporates the reliable vehicle detection technology
found in all of Reno A & E’s vehicle detectors.
All detector functions and settings are easy
to configure using a set of eight external DIP switches and an eight-
position rotary switch.
The Model J is a single channel, dual output, PC Board type vehicle
detector that incorporates the reliable vehicle
detection technology found in all of Reno A & E’s vehicle detectors. All
detector functions and settings are easy
to configure using a set of eight external DIP switches and an eight-
position rotary switch. Available in 12 VDC
and 24 VDC configurations, the Model J is a full featured detector in a
compact package.
- 12 VDC and 24 VDC versions available
- Fail-Safe and Fail-Secure versions available
Dual relay outputs:
Output A
- Limited Presence
- True PresenceTM
Output B
- Presence (duplicates Output A)
- Pulse-on-Entry
- Pulse-on-Exit
- Fault Output
- Two second delay of Outputs A and B
- Sensitivity boost feature for gate operation where high-bed vehicles might be
encountered
- Detect memory feature maintains detection during momentary power
interruptions up to
two seconds
- Three high intensity LEDs provide separate indications of power, detect, and
loop fail
conditions
- Fail LED provides an indication of current loop failures or loop failures that
have previously occurred
- Eight levels of sensitivity
- Four loop frequencies
|
