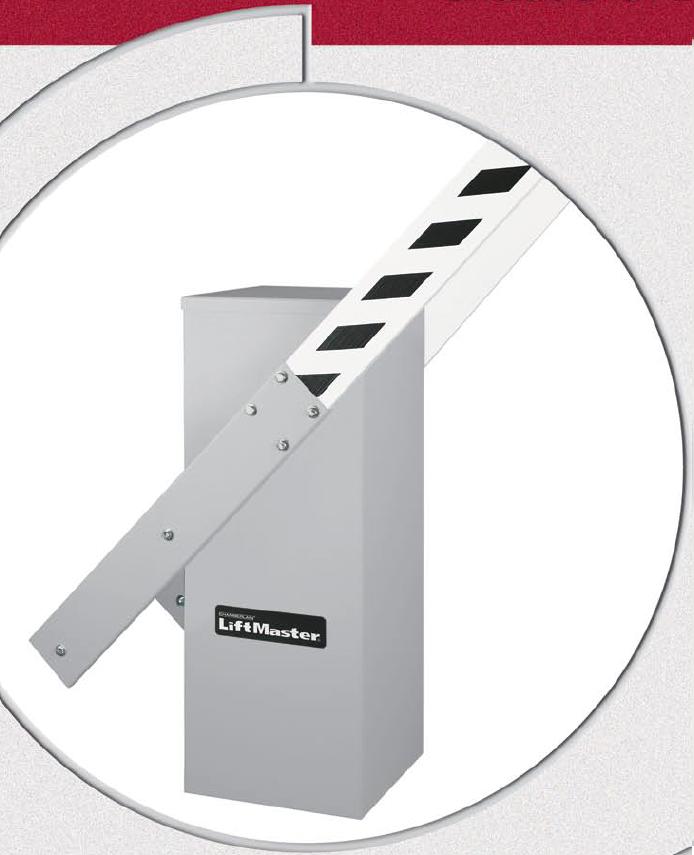

LiftMaster BG790 Industrial Duty Wishbone Arm Barrier Gate Operator
		When an application calls for a barrier gate, LiftMaster BG790 has the reliability and features you require for a commercial installation. The Liftmaster BG790 can be utilized in a high traffic area or integrated with another style gate to create a trap, preventing additional cars from entering a specified area prior to the previous car leaving. The Liftmaster BG790 is provided with a 24-foot wishbone-style arm. Whether the operator is used individually or when utilizing the optional master/slave feature, the Liftmaster BG790 will cover the majority of installations from 24 to 48 feet wide. For smaller entranceways, please see our Liftmaster BG770 Barrier Gate Operator that supports a 12-foot standard arm.  Manual  Spec Sheet

LiftMaster BG790 - 5011 115V 1 Phase Industrial-Duty Wishbone Arm Barrier Gate Operator / Opener -- Add To Cart For Special Pricing - To Low To Advertise


LiftMaster BG790 - 5021 230V 1-Phase Industrial-Duty Wishbone Arm Barrier Gate Operator / Opener -- Add To Cart For Special Pricing - To Low To Advertise


LiftMaster BG790 - 5023 230V 3-Phase Industrial-Duty Wishbone Arm Barrier Gate Operator / Opener -- Add To Cart For Special Pricing - To Low To Advertise


LiftMaster BG790 - 5043 460V 3-Phase Industrial-Duty Wishbone Arm Barrier Gate Operator / Opener -- Add To Cart For Special Pricing - To Low To Advertise


LiftMaster BG790 - 5053 575V 3-Phase Industrial-Duty Wishbone Arm Barrier Gate Operator / Opener -- Add To Cart For Special Pricing - To Low To Advertise


LiftMaster BG790 - 5081 208V 1-Phase Industrial-Duty Wishbone Arm Barrier Gate Operator / Opener -- Add To Cart For Special Pricing - To Low To Advertise


LiftMaster BG790 - 5083 208V 3-Phase Industrial-Duty Wishbone Arm Barrier Gate Operator / Opener -- Add To Cart For Special Pricing - To Low To Advertise


Specifications
*  Operator speed - Opening time:11 seconds
*  Power:
115/208/230 VAC, Single phase - 60 Hz
208/230/460/575 VAC, Three phase - 60 Hz
*  Operator weight - 350 pounds
*  Accessory power
One - 24 VAC
One - 115 VAC (available only with the 115V model)
*  Construction:
*  Gear Reduction: 60:1 wormgear reducer in oil
*  Motor: 1/2 HP continuous duty
*  Metal Frame: 11-gauge pre-galvanized steel

STANDARD FEATURES
Full Systems Capability
Security Loops
Secondary Obstruction Sensing
Multi-Gate Operation
Gate Movement Warning
Obstruction Sensing Alarm
Accessory Power
Removable Electrical Controls
Remote Device Connections
Access Panels
On/Off Switch
Control Station
Automatic/Manual Switch

LiftMaster's parking gates are designed for long life and durability. The weatherproof cabinet is composed of
heavy-duty 11-gauge pre-galvanized steel and is baked with a powder coat finish. A continuous duty 1/3 hp industrial
motor, with overload protection, is standard to withstand heavy usage and promote low maintenance.

LiftMaster BG790 Barrier Gate Openers Commercial Parking Gate Operators
Reliable gear-driven barrier gate operator for industrial applications
This barrier gate is designed for wishbone type arms with lengths up to 24 feet. Powder coated weather resistant steel
enclosure and a 1/2 HP commercial motor to ensure strong, dependable performance.
2-Year Warranty

Optional Equipment
Reverse Cabinet Modification
Timer to close: adjustable for 1 - 1,024 seconds
Single/dual panel bi-part operation
Flex red light strip
Thermostatically Controlled Heater
For use in extreme cold environments.
Single-Button Radio Modification
Allows you to use a radio control to both open and close the barrier arm.
