LiftMaster MEGA SWING Commercial DC Swing Gate Operator
|
|
|
|
The Mega Swing is a DC-powered addition to the LiftMaster® line
of gate operators. Designed with a 24VDC (1/2 HP equivalent)
motor, this model provides exceptional starting torque and
continuous operation, making it ideal for most applications.
Constructed with an aluminum alloy chassis, it is corrosion
resistant and light enough for one person to carry and install.
The heavy-duty motor supports gates weighing up to 1200 lbs.
or up to 18 ft. in length.
Click Here For Replacement Parts
 Spec Sheet
Manual

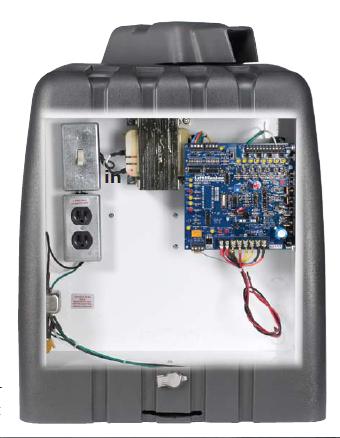

LiftMaster MEGA SWING Commercial DC Swing Gate Opener / Operator
Add To Cart For Special Pricing - To Low To Advertise

Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Compatible photo cell More Information here |
* 1/2 HPS DC motor with soft start stop -
Heavy-duty motor provides strong, reliable
operation
* Dynamic Braking -
Provides total gate position control
to ensure consistent gate closing
without coasting.
* New & Improved Built in
Surge Protection -
Motor oxide varistor provides power
line spike and surge protection at
point of incoming line voltage from
power line spikes and surges
* Highest grade Aircraft
Quality Aluminum Chassis -
High strength ” rust proof T-6
aluminum alloy chassis for superior
heat and corrosion resistance, built
to last
* Low-Voltage Control Inputs -
Connects a full range of optional external devices
* Selectable Auto Open -
15 seconds after power failure or upon
battery depletion gate can be set to
automatically open. 15 second delay
helps reduce nuisance call backs
due to short power interruptions
or brown outs. Meets fire code
for many local municipalities
* Inherent Obstruction
Setting -
Offers separate force
adjustments for both open
and closed directions
* LED Indicators -
For easy diagnostics
* Timer To Close -
Can be set between
1 and 33 seconds
* Heavy Duty Drive System -
Extra Large commercial grade
#80 gearbox provides strong
reliable operation
SPECIFICATIONS
* Horsepower -
1/2
* Operator Speed -
15-18 seconds per 90° opening
* Power -
110/220VAC – 50/60Hz
* Battery Backup (included)
(2) 7-Amp-Hour 12VDC Batteries
* Operator Weight -
124 lbs.
* Accessory Power -
24VDC 500 MA Accessory Power
* UL Listed
* UL325 & UL991 Listed–
Class I, II, III and IV
* Construction
* Gear Reduction:
Heavy-Duty 900:1 Reducer
in Synthetic Oil Bath
* Motor:
1/2 HP Equivalent
* Chassis:
Powdercoated 1/4"
Aluminum Alloy
ADDITIONAL FEATURES
* Universal Controller With 8 Inputs
* Right- Or Left-Handed Operation
* Safety-stop Tailgate Feature
* Anti-Tailgate Quick-Close Feature
* UV Stabilized Polyethylene 2-Part
Cover for Quick Access to the
Control Board
OPTIONAL EQUIPMENT
* Sequenced Access Management
System (SAMS) -
Provides the capability to sequentially control
a slide or swing gate operator in tandem with
a barrier gate operator.
* Heater -
Required for cold weather climates that reach
32°F and below. Available in 150 & 500 watts.
* Liftmaster STAR™ 450 receiver -
Ideal for gated communities. User-friendly
programming technology makes it easy to add,
block and delete up to 450 transmitters
individually. |
