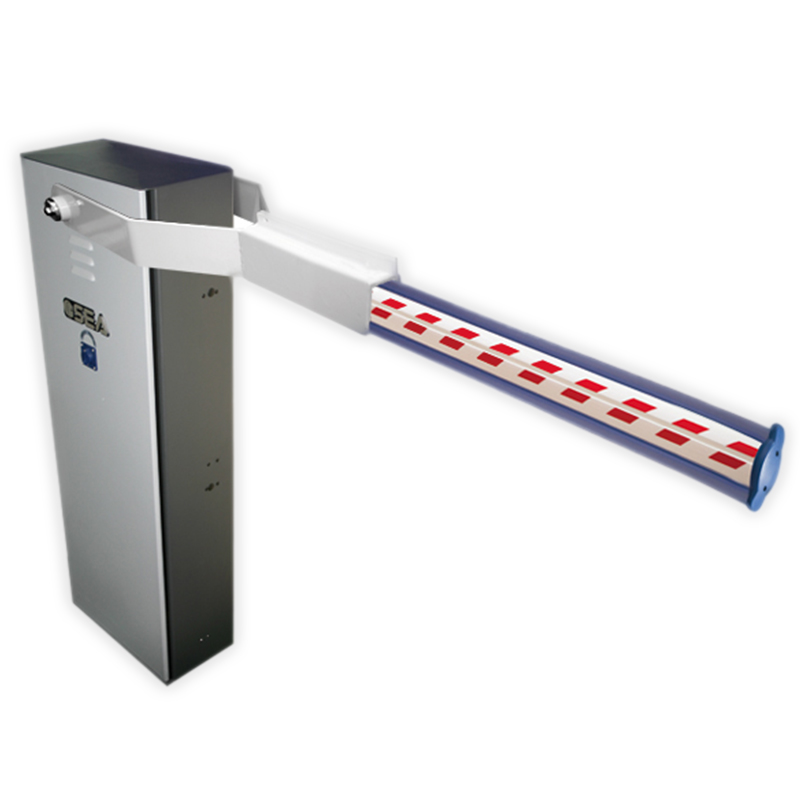

Vela Industrial
HYDRAULIC BARRIER FOR INDUSTRIAL USE for BEAMS
UP TO 7,5 M / 24,6 FEET
- Hydraulic barrier for intensive use
- The operation through oil and the inside lubrication of all mechanical components grant a longer life
- Adjustable mechanical limit switches
- Cataphoresis treated, polyester painted steel casing for long time lasting
- Stainless steel casing available

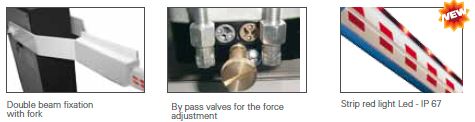

- Oval aluminium beam with protection rubber and optional STRIPLED light
- Modular beam in two pieces with connection joint for easy transportation
- Version with fixing for oval modular beam
- Universal right - left hand side
 Spec Sheet
|
SEA Vela Industrial Left Brake 12 Seconds -- $ 2,156.00

SEA Vela Industrial Left Brake 10 Seconds -- $ 2,156.00
SEA Vela Industrial Left Brake 8 Seconds -- $ 2,156.00
SEA Vela Industrial Right Brake 12 Seconds-- $ 2,156.00
SEA Vela Industrial Right Brake 10 Seconds -- $ 2,156.00
SEA Vela Industrial Right Brake 8 Seconds -- $ 2,156.00
| Code |
Description |
Power |
Max leaf
length |
Cycles |
Operator
weight |
Opening
time |
| 117AC4l06m |
Vela Industrial left |
1/3 HP |
24,6 feet |
Intensive |
160 pounds |
12 sec |
| 117AC4R06m |
Vela Industrial right |
1/3 HP |
24,6 feet |
Intensive |
160 pounds |
12 sec |
| 117AC4l0 |
Vela Industrial left |
1/3 HP |
23 feet |
Intensive |
160 pounds |
10 sec |
| 117AC4r0 |
Vela Industrial right |
1/3 HP |
23 feet |
Intensive |
160 pounds |
10 sec |
| 117AC4L01 |
Vela Industrial left |
1/3 HP |
19,7 feet |
Intensive |
160 pounds |
8 sec |
| 117AC4R01 |
Vela Industrial right |
1/3 HP |
19,7 feet |
Intensive |
160 pounds |
8 sec |
ACCESSORIES
| 11905010 |
Rigid beam 19,7 ft. |
| 11905015 |
Rigid beam 23 ft. |
| 11905020 |
Rigid beam 24,6 ft. |
| 16200105 |
Fork support for Vela beam |
| 16200085 |
Foundation plate for Vela |
|
