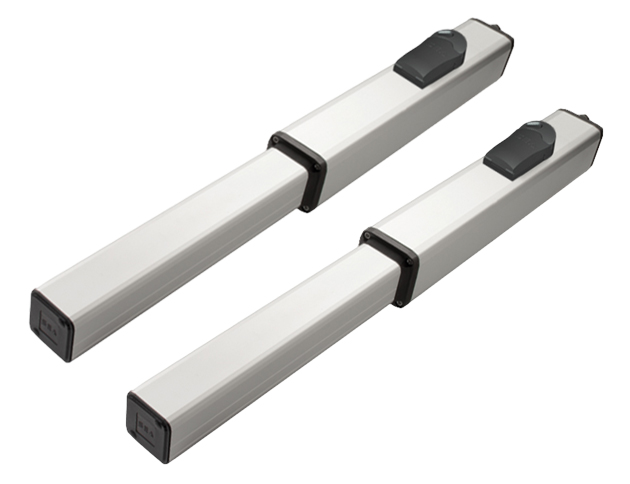

SEA FULL TANK Double Kit - Hydraulic Swing Operator For Commercial and Industrial Use
- 2 Hydraulic operator FULL TANK 120V
- 1 Control unit GATE 2 DG with RF UNI 433 MHz plug-in receiver
Features:
- SEA Total Quality: all parts are manufactured and tested in-house
- The hydraulic system grants high and long term performances
- Oil lubrication of all mechanical components
- Anti crushing guaranteed through by-pass valves for max. thrust adjustment
- 10,63 inches or 15,35 inches stroke (FULL TANK LARGE)
- Standard, oscillating aluminium fork back fixing
- Hydraulic distributor made from aluminium extrusion
- Version with separate piston and hydraulic unit, available on request FULL TANK SP
- Electronic reversing sensor available (on request)
- Cancealed positive stops
- 20 mm rod diameter
- Duty cyles* : 70 per hour
 Spec Sheet
SEA Full Tank Double with Control Box -- $ 2,916.00
  |
| Code |
Description |
Stroke |
Max leaf
length |
Max leaf
weight |
Operator
weight |
Opening
time |
| 106AC3S0-1 |
Full Tank AC |
10 3/5 |
23 feet* |
2.200 pounds |
20 pounds |
11,20 sec. |
| 106AC3S0 |
Full Tank AC Brake
|
10 3/5 |
23 feet* |
2.200 pounds |
20 pounds |
11,20 sec. |
| 107SB2S0 |
Full Tank Large SB |
15,35 inch |
23 feet |
2.200 pounds |
20 pounds |
11,20 sec. |
| 107AC4SO |
Full Tank Extended AC |
15,35 inch |
23 feet |
2.200 pounds |
20 pounds |
11,20 sec. |
ACCESSORIES
| 12710160 |
SEA Positive Stop for Full Tank Brake (1 pcs) -- $ 96.33 |
|
| 12710305 |
SEA Positive Stop (1 pcs) -- $ 105.31 |
|
| 12710165 |
SEA Positive Stop for Full Tank Large or Extended (1 pcs) -- $ 118.03 |
|
| 23105012 |
SEA Heater -- $ 86.24 |
|
| OIL |
SEA Oil in 1 Quart Bottle -- $ 40.83 |
|
| 16700055 |
SEA Electric Lock with Cylinder Kit -- $ 170.34 |
|
| G-LOCK |
EMX Outdoor Magnetic Lock G-Lock 1200lbs -- $ 223.00 |
|
| 23105335 |
SEA Safety Gate (1 pcs) -- $ 101.49 |
|
| 12715070 |
SEA Post Bracket with Screws (1 pcs) -- $ 48.48 |
|
| 23105049 |
SEA Battery Back Up for A.C. Motors -- $ 1,023.52 |
|
| 23120420 |
SEA RF Receiver Module - Plug In 433MHz -- $ 23.76 |
|
CONTROL BOARDS - Replacement Only
| 2302a110g2-A |
Gate 2 |
receiver 433 Mhz and enclosure-- $ 480.41 |
|
| 2302A110g2PW |
Gate 2 |
pre-wired* receiver 433 Mhz and enclosure -- $ 932.75 |
|
| 2302A110g2-Ar |
Gate 2 |
replace only circuit -- $ 425.00 |
|
* GATE 2 Prewired: GATE 2 + Loop Module + Electric Switch + Plugs + Large Box + 2 plug-in Loop |
