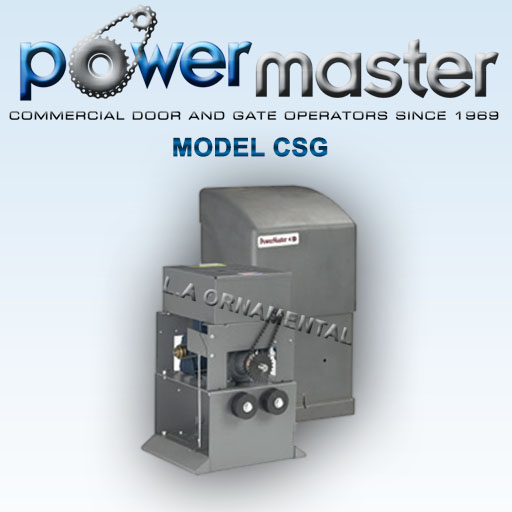

Power Master Gate CSG Opener Commercial Industrial Sliding Gate Operator
|
|
 |
Power Master CSG Sliding Gate Openers or Operators Architectural Specifications:
For use on Commercial or Industrial Slide Gates
Power requirements: 115 Volts, 1 Phase
Class 2 low voltage control circuit
Available horse power: ½ HP
Maximum gate weight: 1200 lb
Maximum cycles per hour: 25 CPH
Maximum gate width: 30 feet
Gate speed: 11 inches per second
U/L 325 listed for use in Class I through IV applications
Shipping weight: approx. 150 lb
PowerMaster CSG Slide Gate Operators or Openers Electrical Specifications:
Solid state control board with diagnostic LEDs to indicate all input and output functions.
Three button control station on circuit board to facilitate installation and maintenance.
External control, input terminalconnections for: Radio Receivers, Push Button Control Station, Key Switches,Loop Detectors, Card Key Readers,
Telephone Entry Systems, etc.
 Manual Exploded View Parts List
CSG Power Master Gate Opener Commercial Industrial Sliding Gate Operator -- $1,295.00

Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Compatible photo cell More Information here
|
Power Master Gate CSG Opener Commercial Industrial Kit
PowerMaster CSG Slide Gate Operators or Openers Electrical Specifications:
Solid state control board with diagnostic LEDs to indicate all input and output functions.
Three button control station on circuit board to facilitate installation and maintenance.
External control, input terminalconnections for: Radio Receivers, Push Button Control Station, Key Switches,Loop Detectors, Card Key Readers,
Telephone Entry Systems, etc.
Timer to close with 0-60 sec.
Adjustment standard. Longer timer available upon request.
Maximum run timer for equipment protection (self adjusting) Master/Slave option with dedicated terminal connection provided. Easy Left/Right
changeover.
Time delay on reverse to ensure smooth gate motion and less stress on equipment.
Emergency control enabling circuitry for safety with security. Spike suppressing circuitry for surge and lightning protection.
Magnetic gate lock control circuitry with 115 Volts output terminals. Integral current sensing, anti-entrapment circuitry with independent opening
and closing sensitivity adjustments.
External anti-entrapment circuitry with separate terminal connections for easy installation of contact and non-contact sensors.
Loop Detector socket, pre-wired for easy of loop detector installation. ½ HP, 115 Volts AC, 6 Amp., 1 phase, instant reversing, switch less, PSC
motor, with thermal overload protection and high speed ball bearing for smooth, quiet operation.
Internal ON/OFF power switch. Two grounded 115 Volts AC, 15 Amp. convenience receptacles. NEMA 1 three-button control station included.
Selectable three second advanced audio warning signal.
Power Master CSG Sliding Gate Openers or Operators Architectural Specifications:
For use on Commercial or Industrial Slide Gates
Power requirements: 115 Volts, 1 Phase
Class 2 low voltage control circuit
Available horse power: ½ HP
Maximum gate weight: 1200 lb
Maximum cycles per hour: 25 CPH
Maximum gate width: 30 feet
Gate speed: 11 inches per second
U/L 325 listed for use in Class I through IV applications
Shipping weight: approx. 150 lb
Power Master CSG Slide Gate Operators or Openers Mechanical Specifications:
Heavy duty #7 Ga. Galvanized steel frame providing a strong and durable unit.
Polyethylene exterior cover for years of durability while retaining it's original aesthetics
Hard shell, baked-on weather resistant powder coating, with an attractive textured finish, for years of protection
Cogged V-Belt primary reduction for smooth, quiet operation
30:1 oil bath type gear reducer for long service and smooth, quiet operation
Equipped with a hand crank, electrically interlocked, for manual operation in case of power failure
Heavy duty #41 drive chain with a spring loaded tensioning system for smooth starts, stops and reversals
Positive, chain driven, rotary limit switches for precision gate positioning. Settings are never affected by
manual operation
Pad mountable, with on board footprint, for easy installation
|
