Viking K-2 2nd Gen Slide Gate Operator


The newly redesigned K-2™ residential slide gate operator features the  VFlex control board with on-board diagnostics LCD display and simple push-button digital limits setup.

Featuring a built in heater, increased gate capacity of up to 700 lbs., a 5 Year residential warranty and Viking’s true standard battery backup system. With convenient fuse access and LED status indicators for incoming high voltage.

Solar energy efficient,  suitable for low voltage installation, reliable gate operation, piece of mind operation during a power failure due to its built-in battery backup system, safety compliance to ETL and UL makes the K-2 the operator of choice for your residential slide gate application.

    OPERATIONS SPECIFICATIONS

  • Operational Voltage ........... 24 DC
  • Main Power Source ........... 115 / 230 AC Single Phase
  • 24 AC/DC Solar Compatible
  • Battery .............................. 12 DC x 2
  • Max Gate Capacity ............ 700 lbs. / 30'
  • Max Operating Speed ........ 12" per Second
  • Battery Backup .................. 100 Full Continuous
  • Duty Cycle(700 lbs)
  • Maximum Duty Cycle ........ 100% Continuous Cycle
  • Operating Temperature ..... -20° F to 160° F

 Spec Sheet  Manual

Viking K-2 - 2nd Generation - Slide Gate Operator - Residential or Light Commercial Use

Add To Cart For Special Pricing - To Low To Advertise

Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Compatible photo cell
More Information here



  Solar energy efficient,  suitable for low voltage installation, reliable gate operation, piece of mind operation during a power failure due to its built-in battery backup system

Kit Include

  • Seco Alarm Monitored Photo Cell

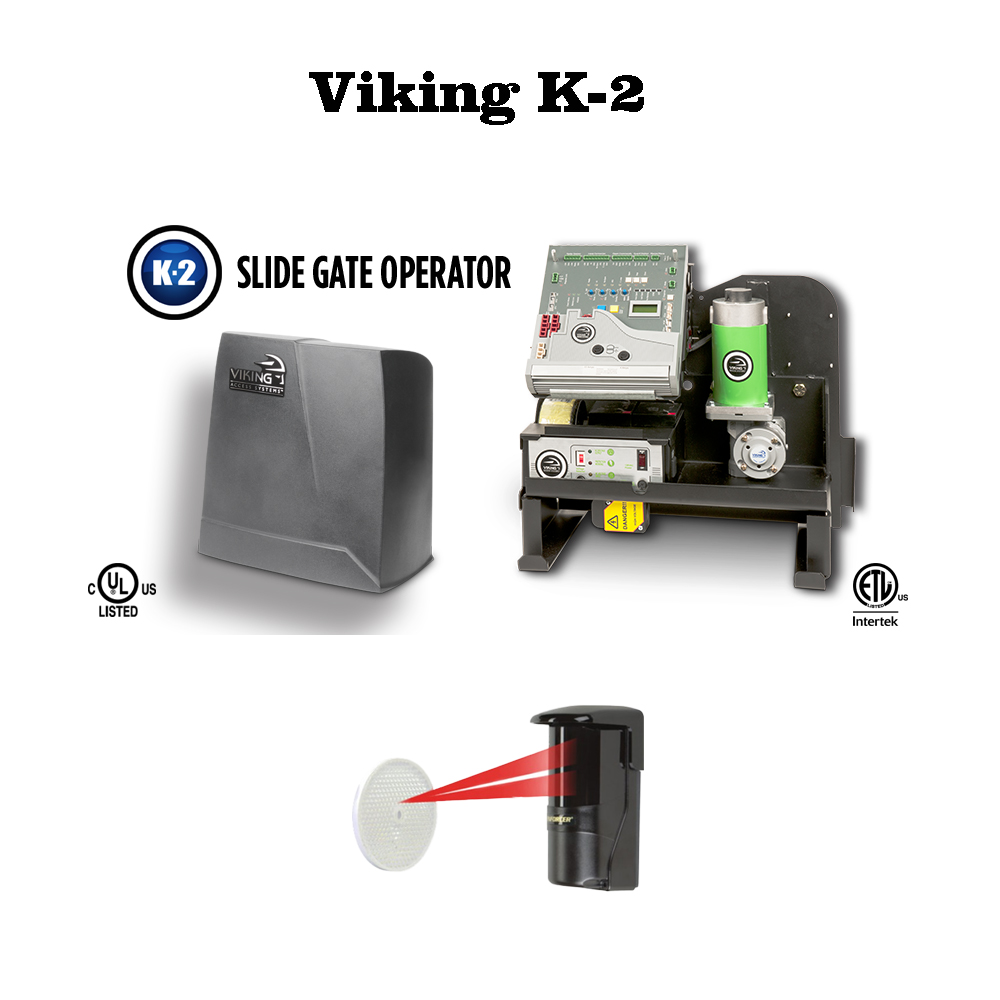

Viking K2 NX Kit 1



Add To Cart For Special Pricing - To Low To Advertise



Solar energy efficient,  suitable for low voltage installation, reliable gate operation, piece of mind operation during a power failure due to its built-in battery backup system

Kit Include

  • Seco Alarm Monitored Photo Cell
  • L.A Remote control and transmitter Kit 433 Mhz

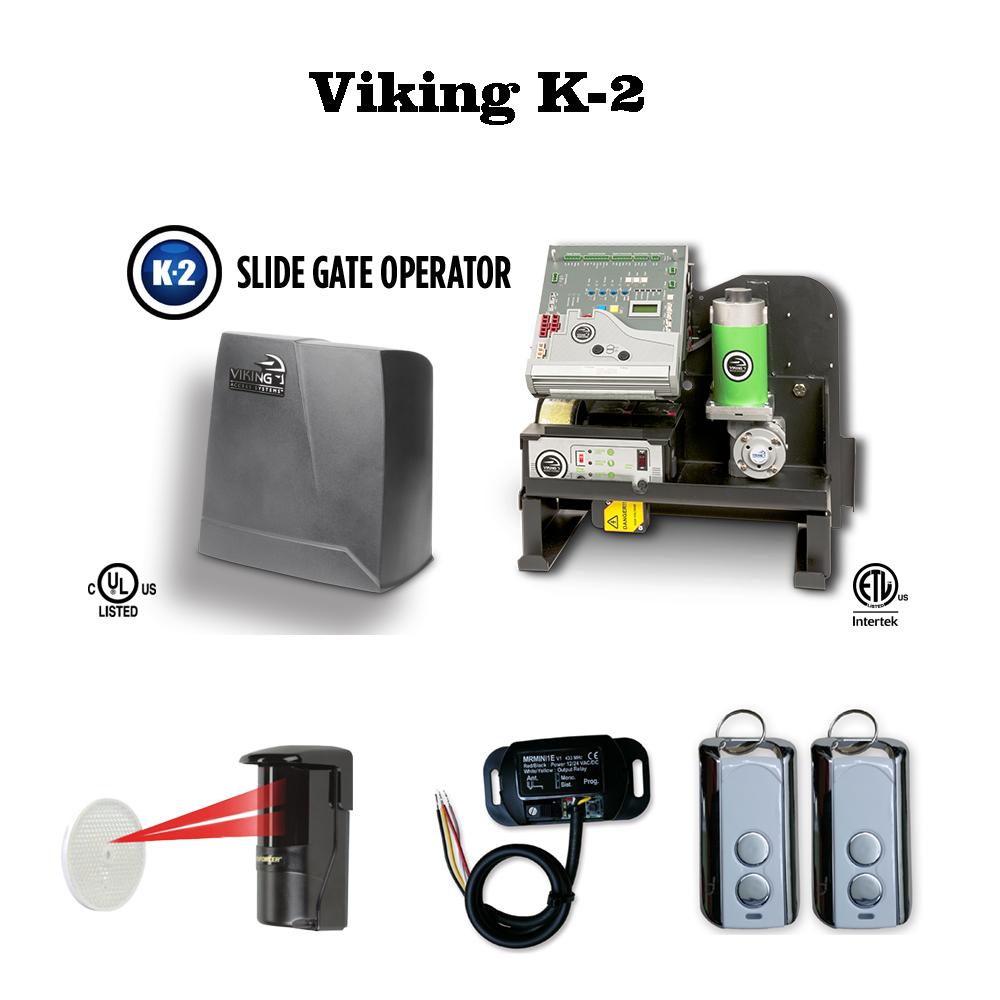

Viking K2 NX Kit 2

Add To Cart For Special Pricing - To Low To Advertise




Solar energy efficient,  suitable for low voltage installation, reliable gate operation, piece of mind operation during a power failure due to its built-in battery backup system

Kit Include

  • Seco Alarm Monitored Photo Cell
  • L.A Remote control and transmitter Kit 433 Mhz
  • L.A Wireless Keypad 433 MHz

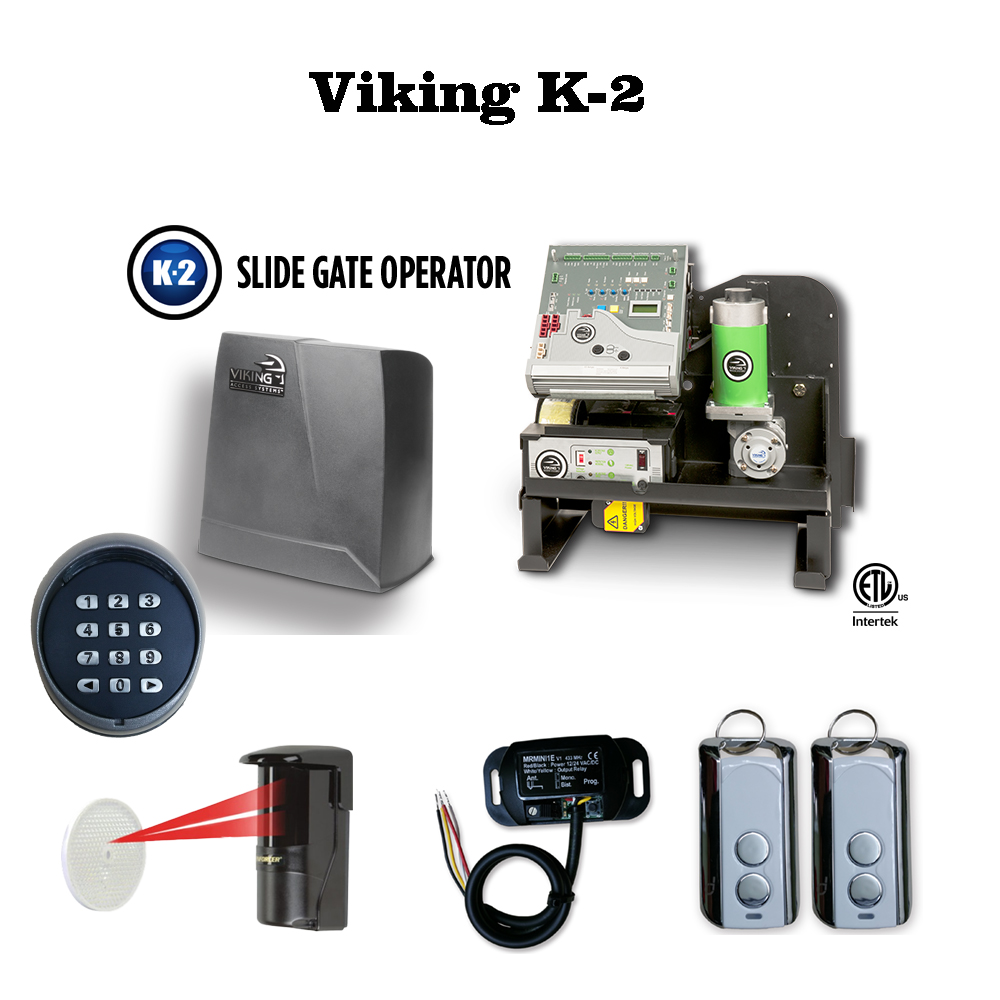

Viking K2 NX Kit 3



Add To Cart For Special Pricing - To Low To Advertise



Solar energy efficient,  suitable for low voltage installation, reliable gate operation, piece of mind operation during a power failure due to its built-in battery backup system

Kit Include

  • Seco Alarm Monitored Photo Cell
  • L.A Remote control and transmitter Kit 433 Mhz
  • L.A Wireless Keypad 433 MHz
  • EMX Carsense 202 Exit Wand

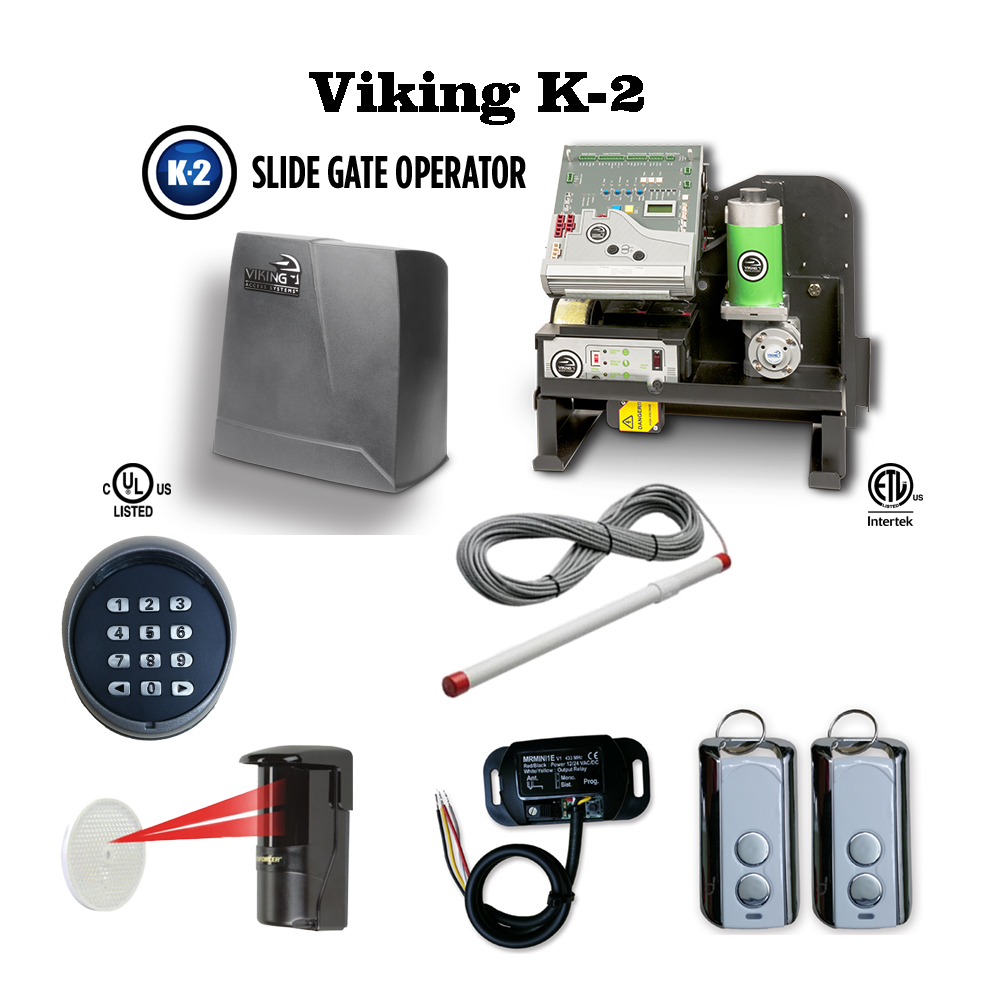

Viking K2 NX Kit 4

Add To Cart For Special Pricing - To Low To Advertise



Viking Blue Technology:
Plug and Play connection for “Viking Blue” add-on products.
Viking Blue – Wireless Diagnostic Tool provides diagnostic information wirelessly within range of the Control Board.

Lightening Protection:
Advanced lightning strike protection up 20,000 volts/10,000 Amps
On board surge protection monitoring

Solar Smart:
Power saving technology minimizes curret draw while at standby. New solar enabled feature to maximize operation time.

Diagnostics Display:
On-board LCD Monitor displays voltages, amps, gate status and diagnostics.

Viking RF-Link:
Plug and Play connection for "Viking Wifi" add-on. Remote access to the control board settings, programming, operator diagnostics, gate controls and gate status all from the convenience of a computer or any compatible handheld device.

Motor: 24 VDC
Operating Speed: 12 inches per second
Duty Cycle: 100%
Battery Backup: 100 Cycles
Power Source Options: 115V/230V AC single Phase
24V AC/DC
Operating Temp: -20 F to 160° F
