STANDARD FEATURES
Gate Control via SMS (Short Message Service) Text, Select Gate Mobile Control App, Keypad, Remote Touch Tones, or Card Readers 10 Phone Number Capacity (dialed via keypad)
1000 Caller ID Recognizable Phone Numbers
Call Forward to 3 Rollover Phone Numbers in Programmed Sequence
2000 Mix & Match Pins / Cards
Pin Code Range from 0001 to 9999
Card Number Range from 00001 to 65534
Site Code Range from 001 to 255
LED lights for easy viewing at night
Blue back lit keypad for the ease of reading
Latch Open Gate via SMS Text, Mobile App or Remote Touch Tones
Hold Gate Open 1 Hour via SMS Text, Mobile App or Remote Touch Tones
REX (Request to exit) Input
Gate Position Sense Input
Signal Strength verifier via SMS Text
Built-in 26 Bit Wiegand Input for Card Access
SPECIFICATIONS
Mounting dimensions: SG2CL 7” H x 9 7/16” W x 4 9/16” D
Construction: Back box: .090 aluminum, primed and painted black texture for exterior use.
Face plate: stainless steel
Power Input: 12 - 24V AC/DC (16.5V 20VA AC Transformer Included)
Current Draw: 90mA @ 12VDC; 80mA @ 24VDC
Operating Environment: Temperature –20 F to +140 F, Relative Humidity 5% to 95% non-condensing.
Relay Output (2): Form C dry contact, 24 V @ 3 AMPS.
Mounting: Surface or Pedestal.
Memory Type: non-volatile.
Tone Detection: Crystal controlled capable of detecting 100 mS. DTMF tone, (detects touch tones only).
 Spec Sheet Manual

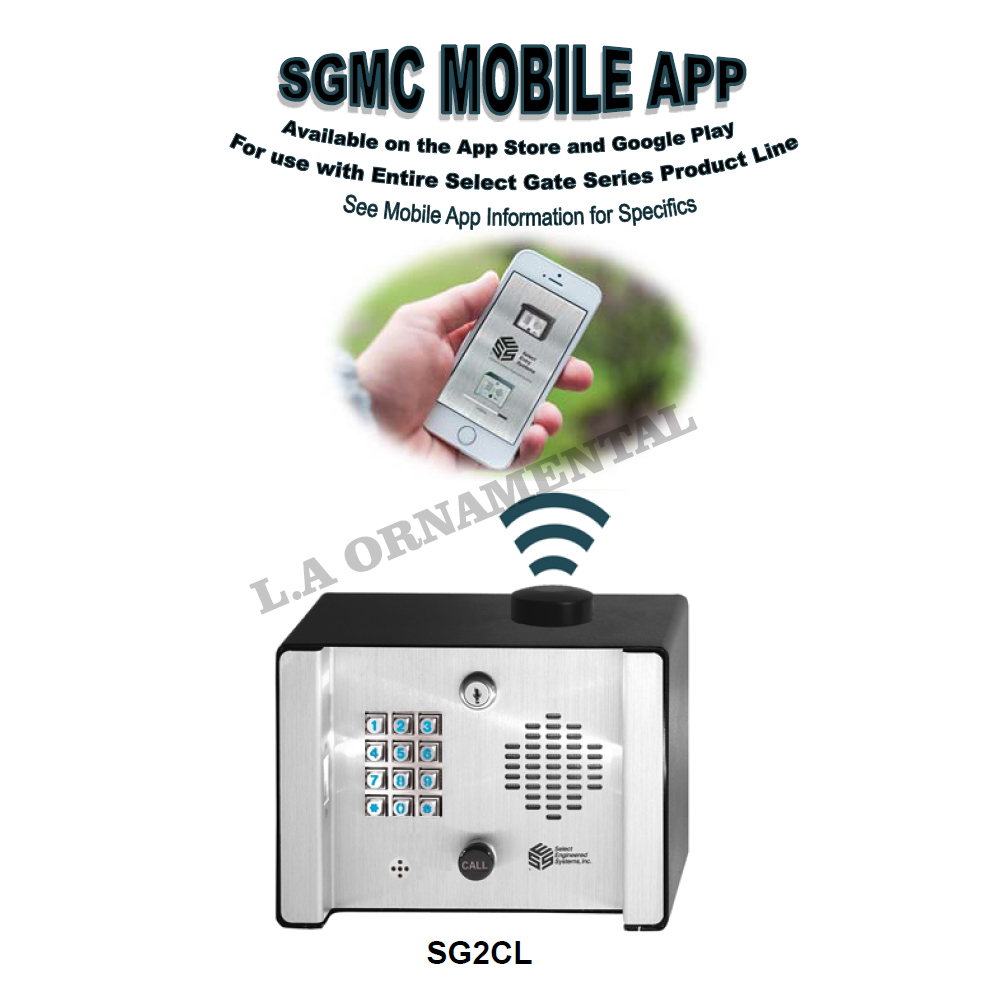

Cellular Gate Entry System SG2CL Access Control Entry Systems Keypad $ 995.00
  |
