Powermaster SL Operator

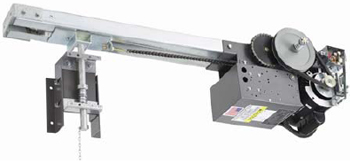

Powermaster SL Operator



Wiring Diagrams

331-3 333-3 1331-3 1333-3 6501-1 6503-3



Model "SL" Slide Door Operator

Power Master Model “SL” operators are designed for use on Sliding Doors.

Supply PowerMaster Model “SL” Slide Door Operator(s) RATED ____ HP, ____ VOLTS, ____ PHASE, for use on Sliding Doors. Primary reduction shall be by heavy duty V-Belt Drive. Secondary reduction shall be a chain and sprocket arrangement. Motor shall be continuous duty industrial type protected from overload by a current sensing or thermal type overload device.

Motor shall be of the high starting torque, continuous duty industrial type, protected from overload by a current sensing or thermal type overload device. Motor controller shall be a heavy duty, full voltage, across the line, magnetic reversing contactor, that is mechanically and electrically interlocked. Electrical components shall be installed in a NEMA 1 enclosure integral to the operator. A
transformer shall be provided to reduce control voltage to 24 VAC. Separate terminal strips shall be provided for connection of power supply line and all control devices. Operator shall be wired for an open/close/stop control station. Control circuit shall provide instant reverse motor wiring on 1Ø operators. Positive chain driven, rotary type limit switches shall be provided to limit full open and close
travel of door. Limit switch adjustment shall not be affected by removal of motor or by manual operation of door.

 Installation Manual

 Spec Sheet

An adjustable torque limiting clutch shall be provided to prevent overloading of the operator. A spring set solenoid released brake, and a disconnect arm for manual operation of the door shall be provided in case of power failure. The final reduction and drive shall be heavy duty # 41 roller chain and sprockets. The drive shaft shall be supported by pillow block bearings and be a minimum of ¾ In diameter.

Electrical Specifications:

  • High Starting Torque Motor with Full Overload Protection
  • Solid State Circuitry with Power and Program Feedback LED’s
  • On Board Open/Close/Stop buttons for service and adjustments
  • Terminals labeled and grouped by function
  • Auto-Detect monitored photo beam for simplified installation
  • Selectable Operating modes B2, C2, D1, E2, T, TS
  • Field adjustable built in functions including: timer to close, mid-stop, delay on reverse, lock bar sensing, maximum run time, etc.

Mechanical Specifications:

  • For Use on Sliding Doors
  • Heavy Duty V-Belt and Chain Reduction, Mechanically Self Locking
  • Heavy Duty #41 Roller Chain Included
  • Adjustable Torque Limiting Clutch
  • Positive Chain Driven Rotary Limit Switches
  • Manual Disconnect Arm for Operation of the Door in case of power failure
  • Baked on Grey Powder Coat finish

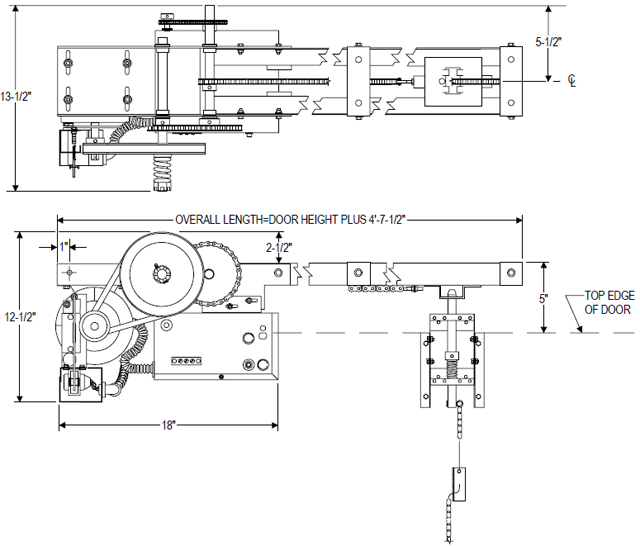

Powermaster SL Operator Exploded View



Description Part Number Price
PowerMaster SL-51, 1/2 HP, 115V, 1 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-51 Our Price: $1,251.78
PowerMaster SL-52, 1/2 HP, 208V /230V , 1 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-52 Our Price: $1,262.17
PowerMaster SL-53, 1/2 HP, 208V /230V , 3 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-53 Our Price: $1,293.34
PowerMaster SL-54, 1/2 HP, 460V , 3 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-54 Our Price: $1,303.73
PowerMaster SL-71, 3/4 HP, 115V, 1 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-71 Our Price: $1,314.11
PowerMaster SL-72, 3/4 HP, 208V /230V , 1 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-72 Our Price: $1,324.50
PowerMaster SL-73, 3/4 HP, 208V /230V , 3 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-73 Our Price: $1,334.89
PowerMaster SL-74, 3/4 HP, 460V , 3 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-74 Our Price: $1,345.28
PowerMaster SL-101, 1 HP, 115V, 1 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-101 Our Price: $1,355.67
PowerMaster SL-102, 1 HP, 208V /230V , 1 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-102 Our Price: $1,370.21
PowerMaster SL-103, 1 HP, 208V /230V , 3 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-103 Our Price: $1,380.60
PowerMaster SL-104, 1 HP, 460V , 3 Phase, Heavy Duty V-Belt Drive Slide Door Operator SL-104 Our Price: $1,397.22
