Powermaster GJ Operator


Powermaster GJ Operator



Wiring Diagrams

331-3 333-3 1331-3 1333-3 6501-1 6503-3



Model "GJ" Gear Reduced Jackshaft Operator

PowerMaster Model “GJ” operators are designed for use on Rolling Service Doors, Rolling Grilles, and Counter Shutters.

Supply PowerMaster model "GJ" Industrial Duty Gear Reduced Jackshaft type operator rated ______HP, ____VOLTS, ____ PHASE, for use on Rolling Service Doors, Rolling Grilles, and Counter Shutters.


Primary speed reduction shall be by means of an industrial gear box with bronze worm gear in an oil bath. Motor shall be of the high starting torque, continuous duty industrial type, protected from overload by a current sensing or thermal type overload device. Motor controller shall be a heavy duty, full voltage, across the line, magnetic reversing contactor, that is mechanically and electrically interlocked. Electrical components shall be installed in a NEMA 1 enclosure integral to the operator. A transformer shall be provided to reduce control voltage to 24 VAC. Separate terminal strips shall be provided for connection of power supply line and all control devices.
Operator shall be wired for an open/close/stop control station.

 Installation Manual

 Spec Sheet

Control circuit shall provide instant reverse motor wiring on 1Ø operators. Positive chain driven, rotary type limit switches shall be provided to limit full open and close travel of door. Limit switch adjustment shall not be affected by removal of motor or by manual operation of door.

An adjustable torque limiting clutch shall be provided to protect the operator in case an obstruction is contacted. Final drive chain shall be a #41 roller chain. Operator shall be capable of right or left hand mounting in either a vertical or horizontal position.

Electrical Specifications:

  • High Starting Torque Motor w/full overload protection
    ß Solid State Circuitry with Power and Program Feedback LED’s
  • On Board Open/Close/Stop buttons for service and adjustments
  • Terminals labeled and grouped by function
  • Auto-Detect monitored photo beam for simplified installation
  • Selectable Operating modes B2, C2, D1, E2, T, TS
  • Field adjustable built in functions including: timer to close, mid-stop, delay on reverse, lock bar sensing, maximum run time, etc.

Mechanical Specifications:

  • For Use on Rolling Service Doors, Rolling Grilles, and Counter Shutters.
  • Heavy Duty Worm Gear Reduction
  • Heavy Duty #41 Roller Chain & Driven Sprocket for Final Drive Included
  • Adjustable Torque Limiting Clutch
  • Positive Chain Driven Rotary Limit Switches
  • Baked on Grey Powder Coat finish

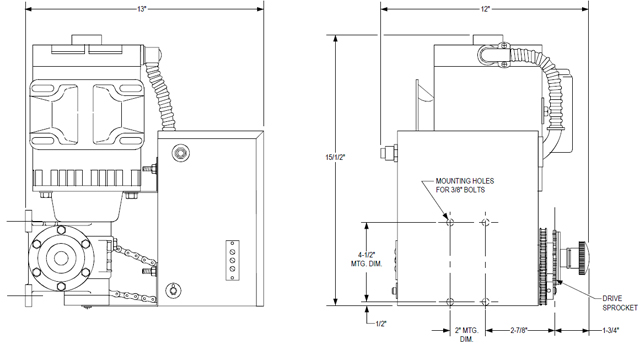

Powermaster GJ Operator Exploded View

Description Part Number Price
PowerMaster GJ-51, 1/2 HP, 115V, 1 Phase, Industrial Duty Hoist Type JackShaft Operator for Carwash GJ-51 Our Price: $857.03
PowerMaster GJ-52, 1/2 HP, 208V /230V , 1 Phase, Industrial Duty Hoist Type JackShaft Operator for Carwash GJ-52 Our Price: $867.42
PowerMaster GJ-53, 1/2 HP, 208V /230V , 3 Phase, Industrial Duty Hoist Type JackShaft Operator for Carwash GJ-53 Our Price: $877.81
PowerMaster GJ-54, 1/2 HP, 460V , 3 Phase, Industrial Duty Hoist Type JackShaft Operator for Carwash GJ-54 Our Price: $888.20
