Hy Security SwingRiser 30 Swing Gate Opener, Hy Security Swing Gate Operator
|
|

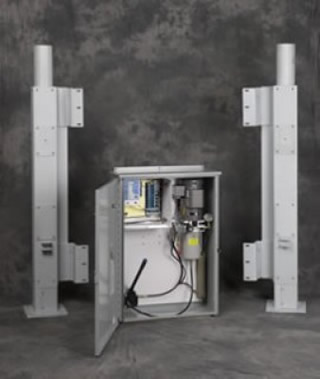

SwingRiser 30 Swing gate operator, single post, 30 sec. to open/close
Continuous duty, single post, heavy gate, swing gate operator. Opens or closes in 30 seconds and cycles up to a 16’ wide, 3,000
lb. gate.
Note: Includes up to 50 feet of hydraulic hose (custom cut to size by HySecurity according to customer’s fi eld measurements; quick
disconnects are pre-attached and hoses are pre-fi lled with hydraulic fl uid). Separate HydraSupply enclosure contains Smart Touch
Controller, electric motor, and pump pack. See SwingRiser Fact Sheet for more information. Submit completed and signed Swing-
Riser order form with each order.
| Duty Cyle: Continuous |
Power Rating: 1 HP |
Travel Speed: Open/Close: 30 sec |
Drive: Hydraulic cylinder |
| Gate Capacity: 3,000 lb. gate max. |
Gate Length: 16’ wide gate max. per leaf |
UL App Classes: I, II, III, IV |
|
HySecurity SwingRiser 30 Swing gate operator, single post, 30 sec. to open/close" -- $16,471.00

 Spec Sheet
|
 |
SwingRiser 30 UPS UPS backup, swing gate operator, single post, 30 sec. to open/close
All the features of SwingRiser 30 plus full functionality during AC power outage using DC power from uninterruptible power supply
batteries (UPS). 100-cycle back-up provided by two, 110 amp hour batteries and a 25 amp charger. The ultimate in security. Available
only in 115/208/230 volts, single-phase power.
Note: See SwingRiser 30. This UPS backup model comes with a separate DC Power Supply enclosure containing battery charger
and batteries. The DC Power Supply must be mounted within 20 feet of the HydraSupply and connected with minimum 2 gauge
wire. See SwingRiser Fact Sheet for more information.
| Duty Cyle: Continuous |
Power Rating: 1 HP |
Travel Speed: Open/Close: 30 sec |
Drive: Hydraulic cylinder |
| Gate Capacity: 3,000 lb. gate max. |
Gate Length: 16’ wide gate max. per leaf |
UL App Classes: I, II, III, IV |
|
HySecurity SwingRiser 30 UPS UPS backup, swing gate operator, single post, 30 sec. to open/close" -- $21,996.00
Spec Sheet |
 |
SwingRiser 30-Twin Swing gate operator, twin posts, 30 sec. to open/close
Continuous duty, twin posts, heavy gate, swing gate operator. Opens or closes in 30 seconds and cycles dual gates up to 16’ wide,
3,000 lb. per leaf.
Note: Includes up to 150 feet of hydraulic hose (custom cut to size by HySecurity according to customer’s fi eld measurements;
quick disconnects are pre-attached and hoses are pre-fi lled with hydraulic fl uid). Separate HydraSupply enclosure contains Smart
Touch Controller, electric motor, and pump pack. See SwingRiser Fact Sheet for more information. Submit completed and signed
SwingRiser order form with each order.
| Duty Cyle: Continuous |
Power Rating: 2 HP |
Travel Speed: Open/Close: 30 sec |
Drive: Hydraulic cylinder |
| Gate Capacity: 3,000 lb. gate max. |
Gate Length: 16’ wide gate max. per leaf |
UL App Classes: I, II, III, IV |
|
HySecurity SwingRiser 30-Twin Swing gate operator, twin posts, 30 sec. to open/close" -- $28,899.00
Spec Sheet |
 |
SwingRiser 30-Twin UPS UPS backup, swing gate operator, twin posts, 30 sec. to open/close
All the features of SwingRiser 30 Twin plus full functionality during AC power outage using DC power from uninterruptible power
supply batteries (UPS). 100-cycle back-up provided by two, 110 amp hour batteries and a 25 amp charger. The ultimate in security.
Available only in 115/208/230 volts, single-phase power.
Note: See SwingRiser 30 Twin. This UPS backup model comes with a separate DC Power Supply enclosure containing battery
charger and batteries. The DC Power Supply must be mounted within 20 feet of the HydraSupply and connected with minimum 2
gauge wire. See SwingRiser Fact Sheet for more information.
| Duty Cyle: Continuous |
Power Rating: 2 HP |
Travel Speed: Open/Close: 30 sec |
Drive: Hydraulic cylinder |
| Gate Capacity: 3,000 lb. gate max. |
Gate Length: 16’ wide gate max. per leaf |
UL App Classes: I, II, III, IV |
|
HySecurity SwingRiser 30-Twin UPS UPS backup, swing gate operator, twin posts, 30 sec. to open/close" -- $34,424.00
Spec Sheet |
|
