Shortest length, up to 14’ arm. 2 seconds to open, 3 seconds to close. Duty rating: 2,000 cycles per day. No counterweights.
Hydraulic traffi c barrier arm operator installed at sites demanding ultra high reliability and low maintenance, heavy arms, or to
manage traffi c driving through wide openings. Arm can rest in open or closed position. Available in nearly all domestic and international
single and three phase voltages. Programmable Smart Touch Controller. Three user relays with 26 programmable options.
Troubleshooting with LED, LCD, and downloadable fault log. Communicates gate status to command and control software. Rated
-40F to +167F degrees (-40C to +75C). “Safety Yellow” enamel for an enduring, attractive fi nish. This is a robust, ultra-reliable
operator with a 5 year warranty.
Note: The barrier arm and arm mounting bracket prices are not included in StrongArm base prices, but are included with the arm
assemblies. See “StrongArm Options” for available arm confi gurations. See StrongArm Fact Sheet for more information.
Duty Cyle: 2,000 cycles/day
Power Rating: 3/4 HP UL
App Classes: I, II, III, IV
Arm Speed: 2 sec. to open; 3 sec. to close
Arm Length: Up to 14’ arm
Arm Design: Side mount aluminum, wood or fi berglass
1Ø Voltages: 115/208/230 60Hz; 110/220 50Hz
3Ø Voltages: 208/230/460/575 60Hz; 220/380 50Hz
Operator Components:

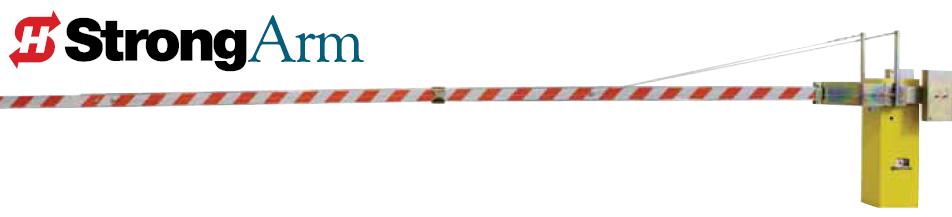

Model: StrongArm 14F
Part Number: HTG 320-2 ST
Est. Ship Weight: 335 lbs
HySecurity StrongArm 14F Traffi c barrier arm, fast, 14' arm, 2 sec. to open (Arm Not Included)" -- $7,033.00

 Spec Sheet
|
