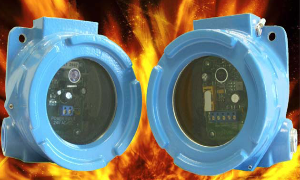

EMX Infrared Exposive Environment Photoswitch |
|
 |
Designed for explosive environments, the rugged IRB-EXP photocell is
used as a safety, reversing, or opening device in conjunction with
automatic operators. The IRB-EXP will work with any control board that
accepts dry contact on the input. The easy-to-install IRB-EXP is used with
garage doors, rolling doors, parking barriers and other equipment
located in explosive environments.
EMX IRB-EXP Infrared Explosive
Environment Photoswitch -- $642.20

 Spec Sheet
|
EMX IRB-EXP Infrared Explosive Environment Photoswitch
Designed to operate in areas with explosive environments.
NEMA 4 and 7 housingNEC Class I, Groups B, C & D,
Class II, Groups E, F & G CSA certified, CENELEC certified, EExd IIC.
Copper free Aluminum with Epoxy finish.
Potentiometer range adjustment to allow more precise tuning to site.
Easy alignment and increased reliability.
Through beam design is not affected by shiny surfaces.
Modulated infrared to reduce the effect of sunlight, fog, rain, dust and dirt.
No focusing lens
EMX IRB-EXP Infrared Explosive Environment Photoswitch
The IRB-EXP photocell is used as a safety, reversing, or opening device in conjunction with automatic operators. The
IRB-EXP will work with any control board that accepts dry contact on the input. The easy to install IRB-EXP is used
with garage doors, rolling doors, parking barriers and other equipment located in explosive environments.
Power 12- 24volts AC or DC
Current TX = < 21mA
RX = 23mA standby 17mA detect
Range 25 – 115 feet
Operating Temp -40o F to +170o F
Relay contact rating 5A @ 30VDC/250VAC
Housing Material NEMA 4 & 7 Cast Aluminum
Dimensions W – 4.69” x H – 4.5” x D – 3.44”
Detection angle 18o
Gain Adjustment Potentiometer
Certifications CLASS I Groups B, C & D,
CLASS II Groups E, F & G, CSA,
CENELEC, EExd IIC
|
