Store  :  BFT Gate Operators - BFT Swing Gate Openers, BFT Slide Gate Openers, Arm Barriers

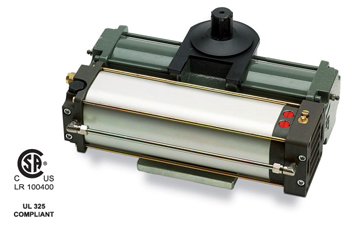

BFT SUB UL/CSA



Underground Hydraulic Operator For Swing Gates



A MODEL FOR EVERY NEED

  • Two versions available, for 125° and 180° opening angles.
SAFE USE
  • Crushing protection guaranteed by two adjustable bypass valves.
SIMPLER INSTALLATION
  • Maintenance is carried out without any need to raise or disassemble the gate.
  • The special foundation case makes it possible to remove the operator without taking off the gate leaf.

 Installation Manual

 Spec Sheet

Special features:
• Opening angles up to 125 or 180 degrees
• Irreversible (cannot be opened manually when motor is engaged)
• Easy manual release in case of power failure
• Opening and closing times: 14 seconds at 125 degrees
• Rated up to 500 opening and closing cycles per day
• Bearing foundation box for easy installation and maintenance
• Slow down on both opening and closing (up to 130 degrees) for smooth operation
• Optional thermostatically controlled heater available to ensure smooth operation in colder climates
• Install a complete pre-wired electrical enclosure box to further improve aesthetics and add many optional entry and safety systems all in one confined lockable enclosure box



Model Voltage Leaf Weight Leaf Length Price
BFT SUB R UL/CSA 120V RIGHT WITH CID
120 V
 up to 1750 lb (800 kg) up to 11’6’’ (3.5 m) Our Price: $1,065.00
BFT SUB R UL/CSA 120V LEFT WITH CID
120 V
 up to 1750 lb (800 kg) up to 11’6’’ (3.5 m) Our Price: $1,065.00
BFT SUB G UL/CSA 120V 60HZ RIGHT WITH CID
120 V
 up to 1750 lb (800 kg) up to 11’6’’ (3.5 m) Our Price: $1,142.91
BFT SUB G UL/CSA 120V 60HZ LEFT WITH CID
120 V
 up to 1750 lb (800 kg) up to 11’6’’ (3.5 m) Our Price: $1,142.91



Technical Features

  SUB R UL/CSA SUB G UL/CSA
Control panel RIGEL 4 UL/CSA (suggested) RIGEL 4 UL/CSA (suggested)
Reversible/irreversible operator irreversible irreversible
Power supply 120 V 60 Hz single-phase 120 V 60 Hz single-phase
Absorbed power 0.33 hp (250 W) 0.33 hp (250 W)
Thermal protection integrated integrated
Opening angle 125° 180°
Opening and closing time 14 s 33 s
Slowdown opening/closing opening/closing
Impact reaction hydraulic clutch hydraulic clutch
Lock hydraulic opening/closing hydraulic opening/closing
Manual release release key release key
Operating cycle intensive use intensive use
Environmental conditions from 14°F (-10°C) to 140°F (+60°C) from 14°F (-10°C) to 140°F (+60°C)
Degree of protection IP67 IP67
Operator weight 48 lbs (~22 kg) 53 lbs (~24 kg)
Dimensions see below see below
Fuse value Rigel 5 board Transformer 2A T 2A T
Fuse value Rigel 5 board Logic board 1A T 1A T
Fuse value Rigel 4 board Transformer 2A T 2A T
Fuse value Rigel 4 board Logic board 1A T 1A T

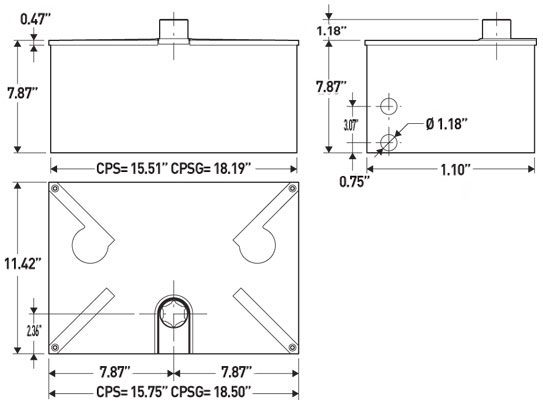

Dimensions

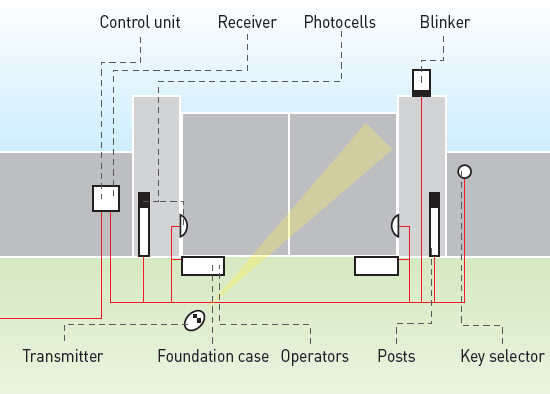

Residential and Collective Use
