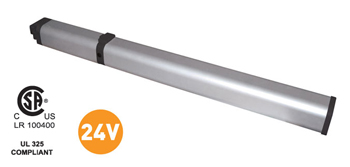

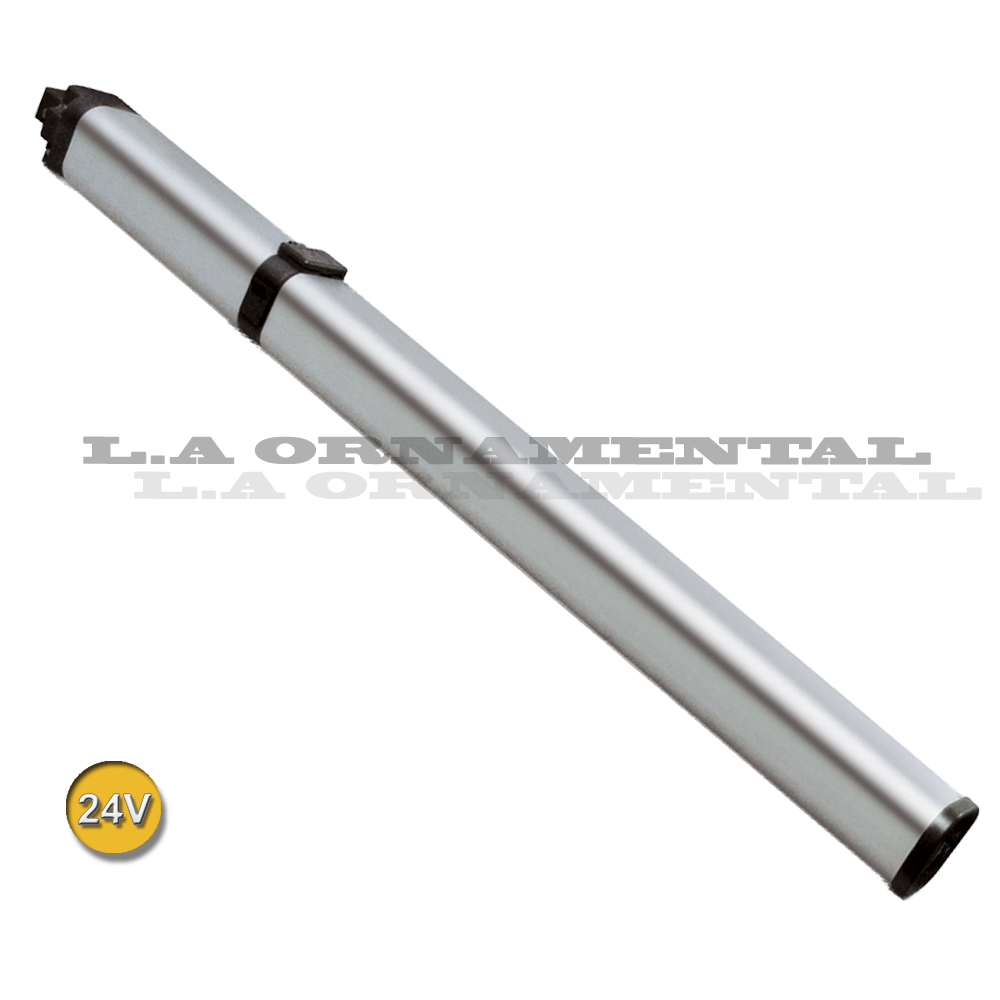

BFT LUX BT
|
|
 |
Hydraulic Operator For Swing Gates
A MODEL FOR EVERY NEED
Several versions available:
- with slowdown
- internal positive stops
- longer stroke.
- All of them are irreversible.
SAFE USE
- Crushing prevention guaranteed by two adjustable bypass valves.
 Installation Manual
User Guide
Presentation
 Spec Sheet
|
 |

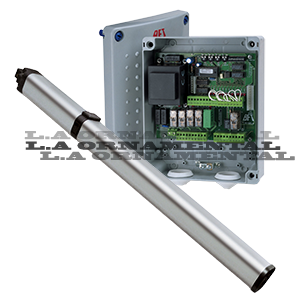

BFT Lux FC 2B Hydraulic Swing Gate Kit 110 Volt Handles Gates 660lbs
Kit Include:
- (1) Arm Swing gate opener
- Rigal 4 Control Panel
Our Price: $ 1,052.45
  |
 |

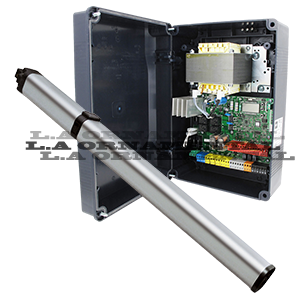

BFT Lux G BT 2B Hydraulic Swing Gate Kit 24 Volt Handles Gates 1750lbs
- (1) Arm Swing gate opener
- Thalia P Control Panel
Our Price: $ 1,257.06
|
|
BFT Lux FC 2B Hydraulic Swing Gate Kit 110 Volt Handles Gates 660lbs 10'
Kit Include:
- (1) Arm Swing gate opener
- Rigal 4 Control Panel
Our Price: $ 958.06
|
|
BFT Lux BT 2B Hydraulic Swing Gate Kit 24 Volt Handles Gates 660lbs 10'
Kit Include:
- (1) Arm Swing gate opener
- Thalia P Control Panel
Our Price: $ 1,153.85
|
|
BFT Lux BV2B Hydraulic Swing Gate Kit 110 Volt Handles Gates 700lbs 15'
Kit Include:
- (1) Arm Swing gate opener
- Rigal 4 Control Panel
Our Price: $ 1,257.06
|
|
BFT Lux R 2B 2SN Hydraulic Swing Gate Kit 110 Volt Handles Gates 660lbs 10'
Kit Include:
- (1) Arm Swing gate opener
- Rigal 4 Control Panel
Our Price: $ 1,133.21
|
Special features:
• Opening angles of 120 degrees
• Irreversible (cannot be opened manually when motor is engaged)
• Easy manual release in case of power failure
• Opening and closing: 17 seconds (30 seconds on larger model)
• Adjustable working time from LCD panel control board
• Rated up to 500 opening and closing cycles per day
• Six different models to ensure that all application and installation scenarios are met
• Optional internal positive stops available on some operators: no need for external stops on the driveway
• Optional thermostatically controlled heater available to ensure smooth operation in colder climates
• Install a complete pre-wired electrical enclosure box to further improve aesthetics and add many optional entry and safety systems all in one confined lockable enclosure box
• Hydraulic adjustable torque setting.
• Electronic obstruction detection device from the control panel.
• Adjustable slow-down on opening and closing.
Technical Features
| |
LUX BT |
LUX G BT |
| Control panel |
LIBRA CLX |
LIBRA CLX |
| Reversible/irreversible operator |
irreversible |
irreversible |
| Power supply |
24 V |
24 V |
| Absorbed power |
0.4 hp (300W) |
0.4 hp (300W) |
| Thermal protection |
integrated |
integrated |
| Rod working stroke |
10.6” (270 mm) |
15.4” (392 mm) |
| Rod speed |
0.55 ips (14 mm/s) |
0.55 ips (14 mm/s) |
| Opening and Closing Time |
14 s |
20 s |
| Slowdown |
- |
- |
| Impact Reaction |
hydraulic clutch |
hydraulic clutch |
| Lock |
hydraulic opening/closing |
hydraulic opening/closing |
| Manual Release |
release key |
release key |
| Operating cycle |
intensive use |
intensive use |
| Environmental conditions |
from 5°F (-15°C) to 140°F (+60°C) |
from 5°F (-15°C) to 140°F (+60°C) |
| Degree of protection |
IP55 |
IP55 |
| Operator weight |
19 lbs (~8,7 kg) |
19 lbs (~8,7 kg) |
| Dimensions |
see below |
see below |

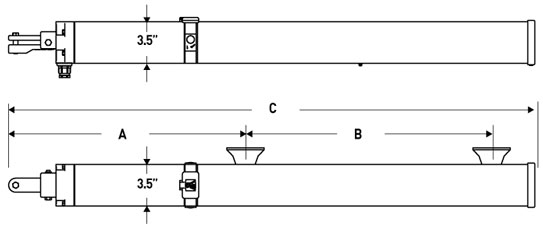

Dimensions

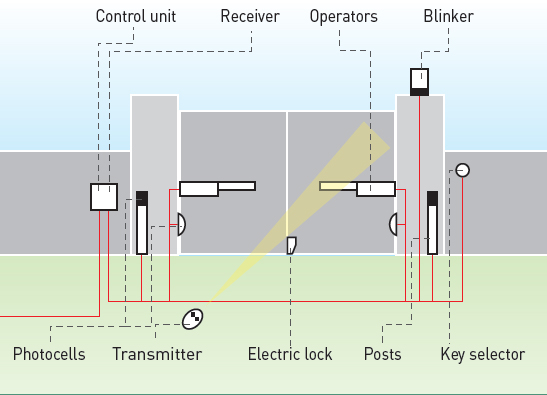

Residential and Collective
|
