Store  :  BFT Gate Operators - BFT Swing Gate Openers, BFT Slide Gate Openers, Arm Barriers

BFT E5

BFT E5



Electromechanical Operator For Swing Gates



A MODEL FOR EVERY NEED

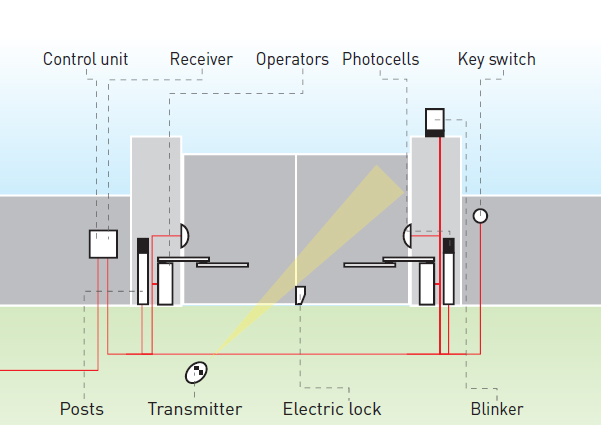

  • Multiple installation possibilities thanks to the optional articulated arms (BLE5 or BSE5) which allow the use of the operator on a pillar or in very tight spaces
SAFE USE
  • Crushing prevention guaranteed by the adjustable mechanical clutch.

 Installation Manual

 Spec Sheet



Model Voltage Leaf Weight Leaf Length Price
P930003 00002 E5
120 V
up to 440 lb (200 kg) up to 6’ 6’’ (2 m) Our Price: $671.05



Technical Features

Control panel RIGEL 4 UL/CSA (suggested)
Reversible/irreversible operator reversible
Power supply 120 V 60 Hz single-phase
Absorbed power 0.3 hp (200 W)
Thermal protection integrated
Opening and Closing Time 22 s
Impact Reaction mechanical clutch
Lock electric lock
Manual Release reversible operator
Operating cycle semi intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C)
Degree of protection IP44
Operator weight 17 lb (~8 kg)
Dimensions see below

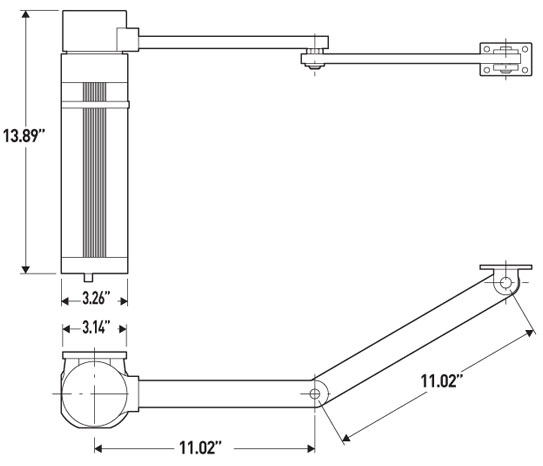

Dimensions

Residential Use
