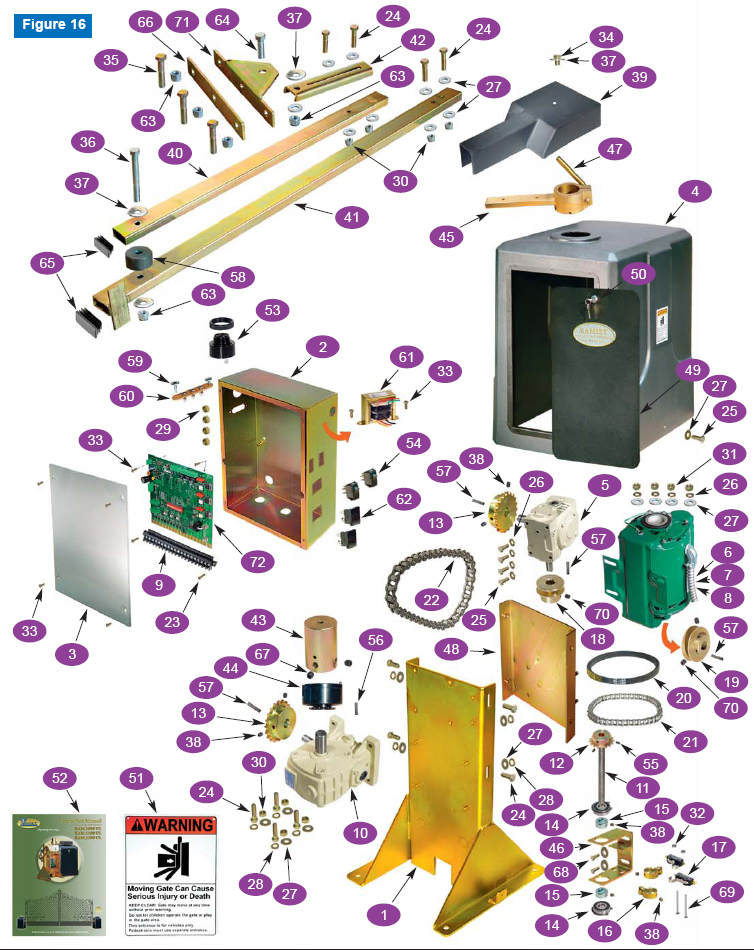

| Item |
Description |
Part Number |
Price |
| 1 |
1/4" Hot Rolled Metal Chassis |
50-006 |
|
| 2 |
Board Metal Box |
50-009 |
|
| 3 |
Lexan Board Cover |
50-015 |
|
| 4 |
Polyethylene Cover |
50-022 |
|
| 5 |
Speed Reducer Size 40/40:1 Gear Ratio |
50-029 |
|
| 8 |
1 Hp 220 VAC Electric Motor |
50-035 |
|
| 9 |
20 Pin Edge Connector |
50-039 |
|
| 10 |
Speed Reducer Size 70/30:1 Ratio |
50-040 |
|
| 11 |
1/2" x 5 1/2" Limit Switch Shaft |
50-044 |
|
| 12 |
35 b 17 x 1/2" Sprocket |
50-051 |
|
| 13 |
40 b 21 x 3/4" Sprocket |
50-054 |
|
| 14 |
6202-2rs Ball Bearing |
50-059 |
|
| 15 |
1/2" Shaft Collard |
50-061 |
|
| 16 |
1/2" Limit Switch Cam |
50-068 |
|
| 17 |
Limit Switch 00h-3 |
50-069 |
|
| 18 |
2" Cast Iron Pulley |
50-070 |
|
| 19 |
2 1/2" Cast Iron Pulley |
50-071 |
|
| 20 |
4L V Belt # 170 |
50-076 |
|
| 21 |
#35 Limit Switch Chain |
50-085 |
|
| 22 |
#40 Driver Chain (26 Links) |
50-086 |
|
| 23 |
# 6 x 1" Machine Screw |
50-091 |
|
| 24 |
3/8-16 x 1 1/2" Hex Head Bolt |
50-092 |
|
| 25 |
5/16-18 x 3/4" Hex Head Bolt |
50-095 |
|
| 26 |
5/16" Split Lock Washer |
50-096 |
|
| 27 |
5/16" Flat Washer |
50-097 |
|
| 28 |
3/8" Split Lock Washer |
50-101 |
|
| 29 |
1/4-20 Hex Head Nut |
50-102 |
|
| 30 |
3/8-16 Hex Head Lock Nut 8 |
50-103 |
|
| 31 |
5/16-18 Hex Head Nut |
50-104 |
|
| 32 |
#6 Hex Head Nut |
50-105 |
|
| 33 |
#6 x 3/8" Machine Screw |
50-107 |
|
| 34 |
1/2-14 x 3/4" Head Bolt |
50-109 |
|
| 35 |
1/2-14 x 2 1/2" Hex Head Bolt |
50-110 |
|
| 36 |
1/2-14 x 3 1/2" Hex Head Bolt |
50-111 |
|
| 37 |
1/2" Flat Washer |
50-112 |
|
| 38 |
1/4-20 Socket Head Screw |
50-114 |
|
| 39 |
Polyethylene Cup Cover |
50-115 |
|
| 40 |
1" x 2" x 32" Rectangular Metal Tube |
50-117 |
|
| 41 |
1" x 2" x 42" Rectangular Metal Tube |
50-118 |
|
| 42 |
3/4" x 1 1/2" Channel |
50-126 |
|
| 43 |
2 1/2" x 4" Pivot |
50-132 |
|
| 44 |
4" Limit Switch Hub |
50-133 |
|
| 45 |
Clamp Release Arm |
50-134 |
|
| 46 |
C Bracket for Limit Switch |
50-135 |
|
| 47 |
Release Lever Handle |
50-136 |
|
| 48 |
Back Channel |
50-147 |
|
| 49 |
Access Door |
50-148 |
|
| 50 |
Access Door Lock |
50-149 |
|
| 51 |
Warning Sign for Gate |
50-151 |
|
| 52 |
Instruction Manual |
50-157 |
|
| 53 |
Horn Alarm |
50-168 |
|
| 54 |
Rocker Switch |
50-215 |
|
| 55 |
#8 Socket Head |
50-222 |
|
| 56 |
1/4" x 1 1/2" Key Way |
50-264 |
|
| 57 |
3/16" x 3/4" Key Way |
50-265 |
|
| 58 |
1 1/2" UHMW Spacer |
50-275 |
|
| 59 |
#8 Self-Tap Sheet Metal Screw |
50-295 |
|
| 60 |
Radio Receiver Terminal |
50-299 |
|
| 61 |
120/240 Intelligate Transformer |
50-304 |
|
| 62 |
Square Outlet |
50-318 |
|
| 63 |
1/2" Hex Head Lock Nut |
50-321 |
|
| 64 |
1/2" x 1 1/2" Hex Head Bolt |
50-337 |
|
| 65 |
1" x 2" Plastic Cap |
50-339 |
|
| 66 |
1/4" x 1 1/2" x 10" Ext. Gate Bracket |
50-419 |
|
| 67 |
1/2" Socket Head |
50-521 |
|
| 68 |
1/4" x 3/4" Hex Head Bolt |
50-522 |
|
| 69 |
#6 x 2" Machine Screw |
50-529 |
|
| 70 |
5/16" Socket Head Screw |
50-539 |
|
| 71 |
1/4" x 2" x 4" Gate Bracket |
50-546 |
|
| 72 |
Intelligate Control Board |
50-777 |
|
