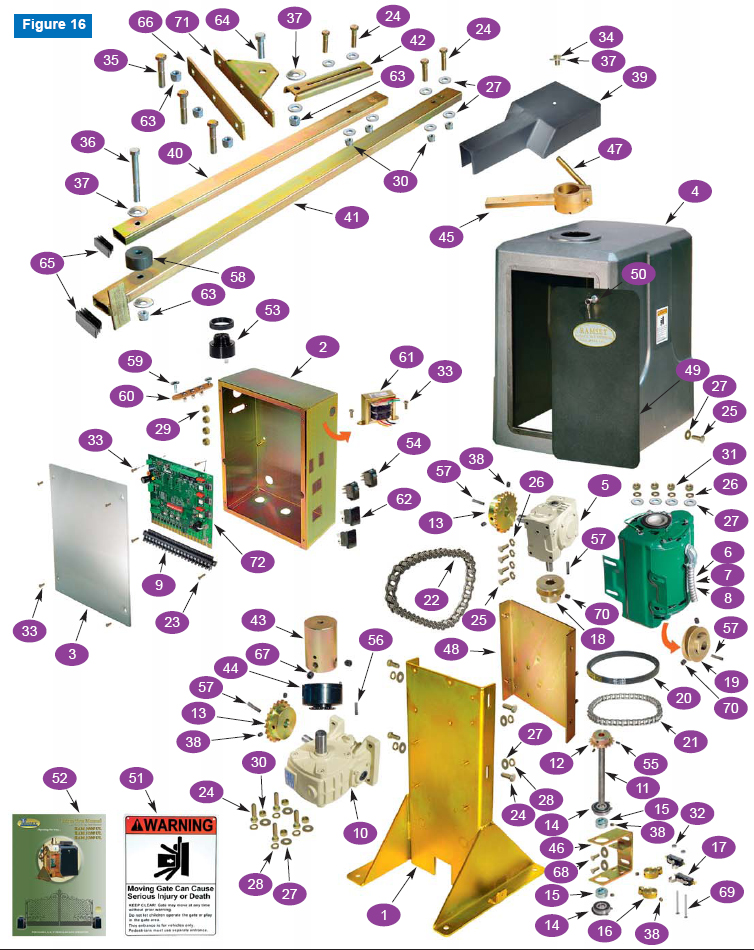

Ramset Operator Parts - RAM 3100 Operator Old

Ramset Operator Parts - RAM 3100 Operator Old

Item Description Part Number Price
1 1/4" Hot Rolled Metal Chassis 50-006
2 Board Metal Box 50-009
3 Lexan Board Cover 50-015
4 Polyethylene Cover 50-022
5 Speed Reducer Size 40/40:1 Gear Ratio 50-029
7 3/4 Hp 115 VAC Electric Motor 50-034
9 20 Pin Edge Connector 50-039
10 Speed Reducer Size 70/30:1 Ratio 50-040
11 1/2" x 5 1/2" Limit Switch Shaft 50-044
12 35 b 17 x 1/2" Sprocket 50-051
13 40 b 21 x 3/4" Sprocket 50-054
14 6202-2rs Ball Bearing 50-059
15 1/2" Shaft Collard 50-061
16 1/2" Limit Switch Cam 50-068
17 Limit Switch 00h-3 50-069
18 2" Cast Iron Pulley 50-070
19 2 1/2" Cast Iron Pulley 50-071
20 4L V Belt # 170 50-076
21 #35 Limit Switch Chain 50-085
22 #40 Driver Chain (26 Links) 50-086
23 # 6 x 1" Machine Screw 50-091
24 3/8-16 x 1 1/2" Hex Head Bolt 50-092
25 5/16-18 x 3/4" Hex Head Bolt 50-095
26 5/16" Split Lock Washer 50-096
27 5/16" Flat Washer 50-097
28 3/8" Split Lock Washer 50-101
29 1/4-20 Hex Head Nut 50-102
30 3/8-16 Hex Head Lock Nut 8 50-103
31 5/16-18 Hex Head Nut 50-104
32 #6 Hex Head Nut 50-105
33 #6 x 3/8" Machine Screw 50-107
34 1/2-14 x 3/4" Head Bolt 50-109
35 1/2-14 x 2 1/2" Hex Head Bolt 50-110
36 1/2-14 x 3 1/2" Hex Head Bolt 50-111
37 1/2" Flat Washer 50-112
38 1/4-20 Socket Head Screw 50-114
39 Polyethylene Cup Cover 50-115
40 1" x 2" x 32" Rectangular Metal Tube 50-117
41 1" x 2" x 42" Rectangular Metal Tube 50-118
42 3/4" x 1 1/2" Channel 50-126
43 2 1/2" x 4" Pivot 50-132
44 4" Limit Switch Hub 50-133
45 Clamp Release Arm 50-134
46 C Bracket for Limit Switch 50-135
47 Release Lever Handle 50-136
48 Back Channel 50-147
49 Access Door 50-148
50 Access Door Lock 50-149
51 Warning Sign for Gate 50-151
52 Instruction Manual 50-157
53 Horn Alarm 50-168
54 Rocker Switch 50-215
55 #8 Socket Head 50-222
56 1/4" x 1 1/2" Key Way 50-264
57 3/16" x 3/4" Key Way 50-265
58 1 1/2" UHMW Spacer 50-275
59 #8 Self-Tap Sheet Metal Screw 50-295
60 Radio Receiver Terminal 50-299
61 120/240 Intelligate Transformer 50-304
62 Square Outlet 50-318
63 1/2" Hex Head Lock Nut 50-321
64 1/2" x 1 1/2" Hex Head Bolt 50-337
65 1" x 2" Plastic Cap 50-339
66 1/4" x 1 1/2" x 10" Ext. Gate Bracket 50-419
67 1/2" Socket Head 50-521
68 1/4" x 3/4" Hex Head Bolt 50-522
69 #6 x 2" Machine Screw 50-529
70 5/16" Socket Head Screw 50-539
71 1/4" x 2" x 4" Gate Bracket 50-546
72 Intelligate Control Board 50-777
