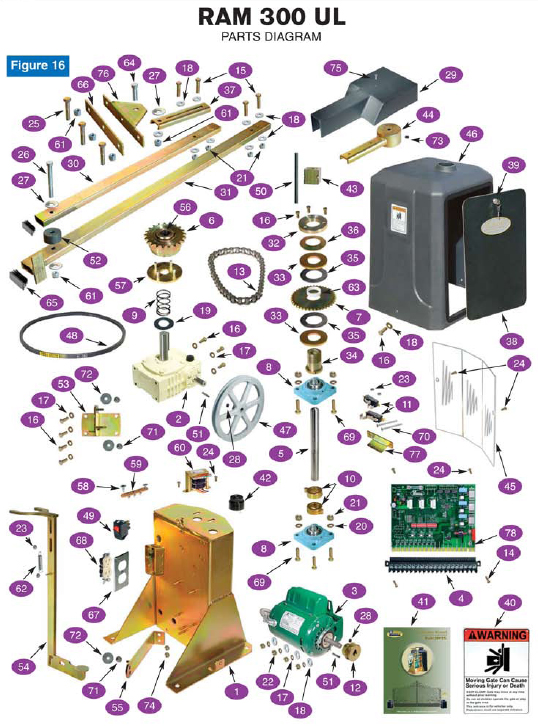

| Item |
Description |
Part Number |
Price |
| 1 |
3/16" Hot Rolled Metal Chassis |
50-003 |
|
| 2 |
Speed Reducer Size 50 60:1 Ratio |
50-026 |
|
| 3 |
1/2 Hp 115 VAC Electric Motor |
50-033 |
|
| 4 |
20 Pin Edge Connector |
50-039 |
|
| 5 |
1" x 12" Shaft |
50-043 |
|
| 6 |
41B21 Clutch Release |
50-047 |
|
| 7 |
40 a 35 or 40 a 45 Sprocket |
50-049 |
|
| 8 |
F 205 Flange Bearing |
50-060 |
|
| 9 |
2" Tension Spring (Clutch Spring) |
50-065 |
|
| 10 |
1" Limit Switch Cam |
50-067 |
|
| 11 |
Limit Switch 00h-3 |
50-069 |
|
| 12 |
2" Cast Iron Pulley |
50-070 |
|
| 13 |
# 40 Drive Chain |
50-084 |
|
| 14 |
# 6 x 1" Machine Screw |
50-091 |
|
| 15 |
3/8-16 x 1 1/2" Hex Head Bolt |
50-092 |
|
| 16 |
5/16-18 x 3/4" Hex Head Bolt |
50-095 |
|
| 17 |
5/16" Lock Washer |
50-096 |
|
| 18 |
5/16" Flat Washer |
50-097 |
|
| 19 |
3/4" Flat Washer Release |
50-100 |
|
| 20 |
3/8" Lock Washer |
50-101 |
|
| 21 |
3/8-18 Hex Head Lock Nut |
50-103 |
|
| 22 |
5/16" Hex Head Nut |
50-104 |
|
| 23 |
# 6 Hex Head Nut |
50-105 |
|
| 24 |
# 6 x 3/8" Machine Screw |
50-107 |
|
| 25 |
1/2-14 x 2 1/2" Hex Head Bolt |
50-110 |
|
| 26 |
1/2-14 x 3 1/2" Hex Head Bolt |
50-111 |
|
| 27 |
1/2" Flat Washer |
50-112 |
|
| 28 |
1/4-20 Socket Head Screw |
50-114 |
|
| 29 |
Polyethylene Cup Cover |
50-115 |
|
| 30 |
1" x 2" x 34" Rectangular Metal Tube |
50-117 |
|
| 31 |
1" x 2" x 46" Rectangular Metal Tube |
50-118 |
|
| 32 |
Torque Limited Nut |
50-119 |
|
| 33 |
3 1/2" Torque Limited Washer |
50-120 |
|
| 34 |
3 1/2" Torque Limited Arbor |
50-121 |
|
| 35 |
3 1/2" Torque Limited Friction Disc |
50-122 |
|
| 36 |
3 1/2" Torque LImited Tension Washer |
50-123 |
|
| 37 |
Channel |
50-126 |
|
| 38 |
Access Door |
50-148 |
|
| 39 |
Access Door Lock |
50-149 |
|
| 40 |
Warning Sign for Gate |
50-151 |
|
| 41 |
Instruction Manual |
50-157 |
|
| 42 |
Horn Alarm |
50-168 |
|
| 43 |
1 1/2" x 1 1/2" Sq. Pivot |
50-171 |
|
| 44 |
3 1 1/2" Clamp Release |
50-172 |
|
| 45 |
Lexan Glass Cover |
50-173 |
|
| 46 |
Polyethylene Cover |
50-174 |
|
| 47 |
10" Cast Iron Pulley |
50-175 |
|
| 48 |
4L V Belt # 350 |
50-202 |
|
| 49 |
Rocker Switch |
50-215 |
|
| 50 |
1/4" x 5" Key Way |
50-263 |
|
| 51 |
3/16" x 3/4" Key Way |
50-265 |
|
| 52 |
1 1/2" UHMW Spacer |
50-275 |
|
| 53 |
Foot Release Guide Bracket |
50-277 |
|
| 54 |
Foot Pedal Release |
50-278 |
|
| 55 |
Under Foot Release Bracket |
50-279 |
|
| 56 |
Arbor Release |
50-282 |
|
| 57 |
4 Pin Disc Release |
50-283 |
|
| 58 |
#8 Self-Tap Sheet Metal Screw |
50-295 |
|
| 59 |
Radio Receiver Terminal |
50-299 |
|
| 60 |
120/240 Intelligate Transformer |
50-304 |
|
| 61 |
1/2" Hex Head Lock Nut |
50-321 |
|
| 62 |
Spring 1/4" x 2" for Pedal Release |
50-335 |
|
| 63 |
2" UHMW Ring |
50-336 |
|
| 64 |
1/2" x 1 1/2" Hex Head Bolt |
50-337 |
|
| 65 |
1" x 2" Plastic Cap |
50-339 |
|
| 66 |
Outlet Switch Cover |
50-510 |
|
| 67 |
120 VAC Double Outlet |
50-511 |
|
| 68 |
3/8" x 1 1/2" Carriage Bolt |
50-519 |
|
| 69 |
#6 x 2" Machine Screw |
50-529 |
|
| 70 |
1/4" Hex Head Lock Nut |
50-537 |
|
| 71 |
5/16" Fender Washer |
50-538 |
|
| 72 |
5/16" Socket Head Screw |
50-539 |
|
| 73 |
5/16" Hex Head Lock Nut |
50-540 |
|
| 74 |
1/4" x 1/2" Phillips Machine Screw |
50-545 |
|
| 75 |
Gate Bracket |
50-546 |
|
| 76 |
Intelligate Control Board |
50-777 |
|
