OSCO Swing Gate Operator Control Box Parts - SWR

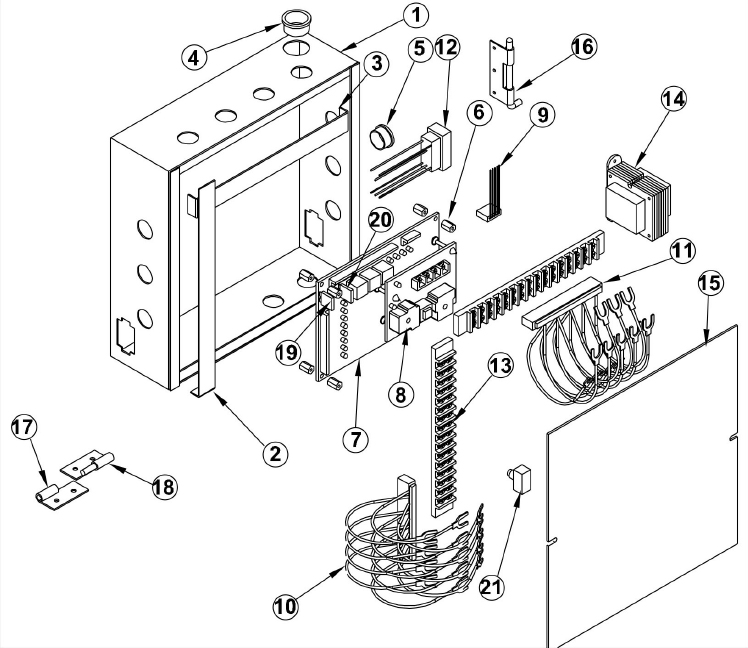

OSCO Swing Gate Operator Control Box Parts - SWR

Item Description Part Number Price
1 Control Box Wrapper 2100-1778-PLT
2 Terminal Strip Bracket, output side 2100-1762 Our Price: $10.27
3 Terminal Strip Bracket, input side 2100-1761 Our Price: $10.27
4 Heyco Bushing, 1.09 diameter 2300-735
5 Heyco Bushing, .87 diameter 2200-122 Our Price: $3.10
6 Control Board Standoff 2500-1948 Our Price: $2.00
7 Control Board 2510-268 Our Price: $349.00
8 AC Motor Drive Board 2500-1946 Our Price: $110.00
  Control Board with AC Motor Board 2510-244 Our Price: $439.00
9 Limit Switch Harness Assembly 2510-380 Our Price: $37.15
10 Input Wire Harness Assembly 2510-249 Our Price: $37.15
11 Output Wire Harness Assembly 2510-250 Our Price: $37.15
12 Control Box Motor Harness Assembly 2510-261 Our Price: $30.71
13 Terminal Strip, 16-141 2500-071 Our Price: $21.83
14 Transformer, 115/24VAC, 40VA 2500-212 Our Price: $36.93
  Transformer, 230/24VAC, 40VA 2500-791 Our Price: $36.93
15 Clear Control Box Cover 2300-696 Our Price: $17.12
16 Pull Pin Disconnect 2200-940 Our Price: $5.89
17 Control Box Hinge, Female (riveted to control box) 2200-873-PLT
18 Control Box Hinge, Male (riveted to accessory shelf) 2200-874-PLT
19 2 Amp Fuse for Control Board 2500-1966 Our Price: $2.00
20 3 Amp Fuse for Control Board 2500-1975 Our Price: $2.00
  Complete Controller Assembly 115VAC (order limit harness and mounting hardware separately) 2520-391-F Our Price: $472.66
  Complete Controller Assembly 230VAC (order limit harness and mounting hardware separately) 2520-392-F Our Price: $479.16
21 Stop/Reset Button
2500-1495
