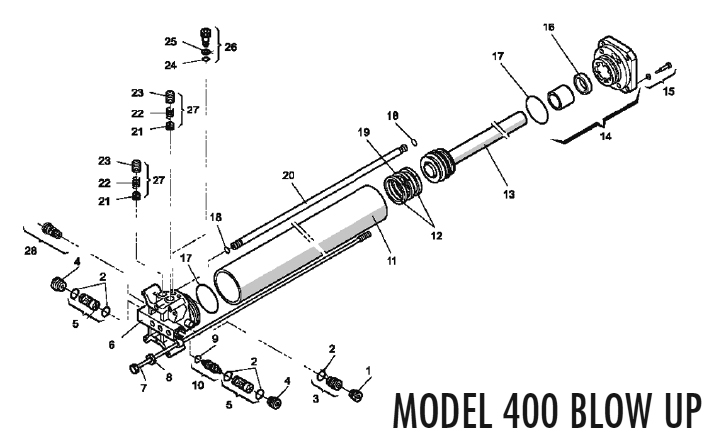

FAAC Gate Operator - Model 400
| Item |
Description |
Part Number |
Price |
| 1 |
Valve Retainer |
7049005 |
|
| 2 |
O-Ring |
N/A |
|
| 3 |
Inlet Valve |
4404065 |
 |
| 4 |
Retainer (Brass) |
7049005 |
|
| 5 |
Lock Valve (Bi-Metal) |
4404085 |
|
| 6 |
Valve Body (CBAC) |
4994345 |
|
| 7 |
Tie-Rod (Cylinder) |
7230295 |
|
| 7a |
Tie-Rod (Cylinder) (Long/EG) |
7230305 |
|
| 8 |
Star Washer (5 mm) |
N/A |
|
| 9 |
O-Ring (Shuttle Piston) |
N/A |
|
| 10 |
Shuttle Piston |
4180285 |
|
| 11 |
Cylinder |
7366025 |
|
| 11a |
Cylinder (Long/EG) |
7366015 |
|
| 12 |
Piston Rod Seals |
7091015 |
|
| 13 |
Piston Rod Assembly |
4350105 |
|
| 13a |
Piston Rod Assembly (Long/EG) |
4350115 |
|
| 14 |
Front Flange |
4994625 |
|
| 15 |
Front Flange Bolt (5 x 20 mm) |
N/A |
|
| 16 |
O-Ring Front Flange (Internal) |
N/A |
|
| 17 |
O-Ring (Valve Body) |
7090360025 |
|
| 18 |
O-Ring (Retract Tube 06’) |
7090815 |
|
| 19 |
Guide Ring (Piston) |
7049005 |
|
| 20 |
Retract Tube |
7361335 |
|
| 21 |
By-Pass Cap Assembly (06) |
4180415 |
|
| 24 |
O-Ring (Manual Release) |
7090280015 |
|
| 25 |
Spacer (Manual Release) |
N/A |
|
| 26 |
Manual Release |
4180195 |
|
| 28 |
Inlet Valve (Bi-Directional) |
4404095 |
|
