GATE OPENER BRANDS

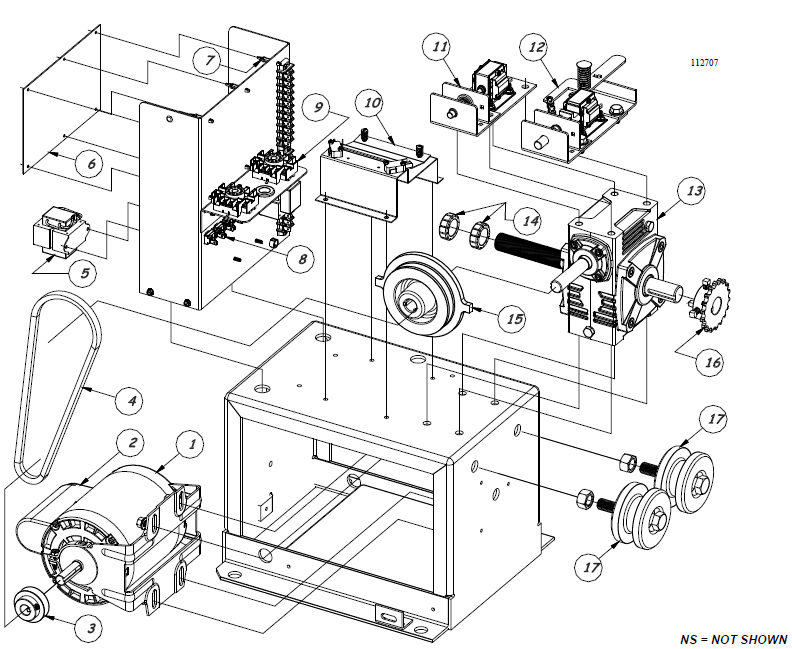

All Star Model LPX1000

Item Description Part Number Price
1 Motor,1/2 HP,56 FRM,115 VAC,ODP,PSC 010172
2 Capacitor,Motor,65 MFD,180VAC,Leeson 3014-13 010121
3 Motor Pulley, 4L 010213
4 V Belt,4L310 111814
5 Transformer,115-24 VAC,40 VA 005244
6 Motor Control Board,120V, Leader+ 110001
6a Motor Control Board,120V, LDR, High Speed 112359
7 Standoff, Motor Control Board 157149
8 Switch, Push Button, SPST, NO, Black 112726
8a Switch, Push Button, SPST, NO, Red 111727
9 Socket, Octal,11 Pin, DIN/Panel MNTG 111725
10 Switch ASSY, Limit, LDR 103829
10a Switch, SPDT, 15A/250V, SIMUL Roller Lever 112032
11 Lock Assembly, Solenoid, Cont. Duty, LDR 102076
11a Solenoid, Lock, Push, 120 VAC 102551
12 Lock Assembly, Fail Secure Lock, CMPLT w/solenoid 113366
12a Solenoid, 115 VAC, Horizontal Pull, 8# Max Pull` 100879
12 Reducer, Speed, 10:1 103427
14 Limit Nut, 1 x 16 010606
15 Pulley, Lock PLT, Continuous Duty 102077
16 Sprocket, 41B18, 1” Thru Bore, 1/4 Key 110131
16a Sprocket, 40B30, 1 TB, 1/4 Key, High Speed 009136
17 Pulley, Idler, UHMW, 3.5 OD 104395
NS Receptacle, Duplex, Outlet/Switch, 120 VAC 110132
NS Sign, Gate, Warning/OSHA 103671
NS Manual, Installation/User, LPX1000 111785
NS Cover Assembly, Operator, LPX1000 112749
NS Chain, #41, Roller, 600P, 25 FT 010203
NS Chain, #40, Roller, 600P, 25 FT, High Speed 010209
NS Bracket, Chain Take-Up, Heavy Duty 010272
