GATE OPENER BRANDS





All Star Gate Star 1000

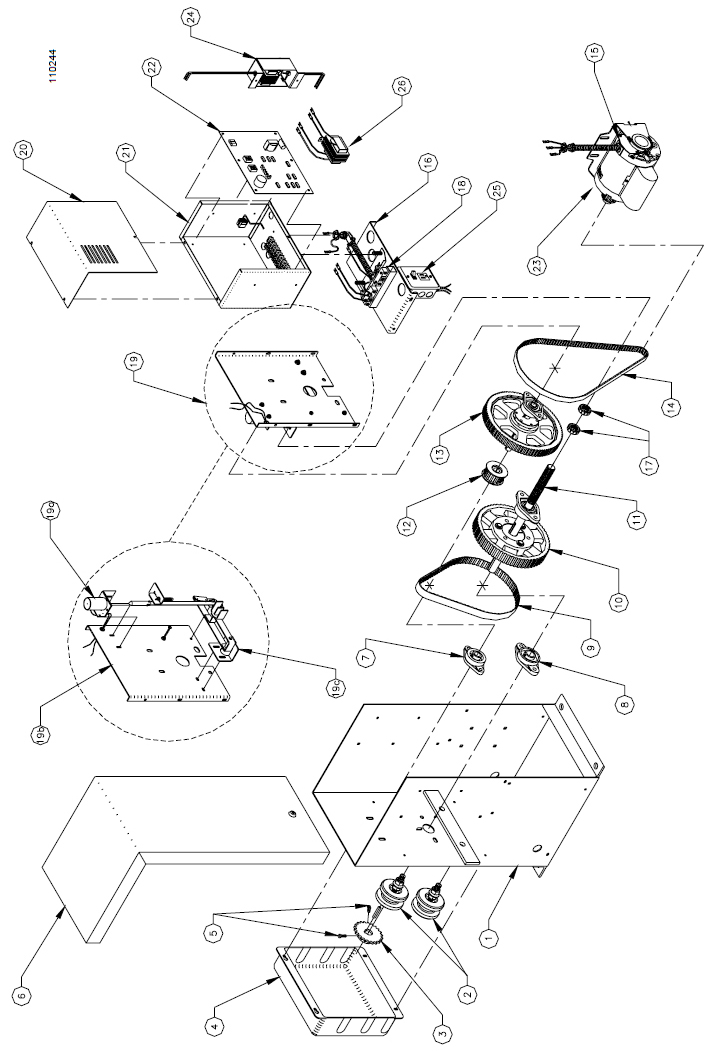

STANDARD #40 CHAIN GS1000 OPERATOR

Item Description Part Number Price
3 Sprocket, Drive, 22T #40 010206
4 Cover, Sprocket, GS1000 010289
5 Screw, SQ HD, Knurled, 5/16-18 x 3/4 010025
6 Cover Assy, Operator, GS1000 102833
7 Bearing, Pillow BLK, 3/4" BORE 010192
8 Bearing, Pillow Block, 1" Bore 010191
9 Belt, Timing, 360L100 010201
10 Pulley, Timing Belt, 9.54 PD, 60 GR 010195
11 Shaft, Lower, GS1000 010605
12 Bushing, Taper-Lock, 3/4 Bore 010198
13 Pulley, Timing Belt, 10.03 PD, 84GR 010193
14 Belt, Timing, 480L075 010200
15 Motor, 1/2HP 010172
16 Plate Assy, Limit, GS1000 102813
17 Nut, Limit, 1-16 UN 010606
18 Switch, SPDT, w/Lever 00E063
19 Plate Assy, Lock, HI PERF, GS1000 102806
19a Solenoid, 24VDC, 16W, Coil INTR 010148
19b Backplate, U Frame, GS1000 101754
19c Lock Assy, HI PERF, GS1000 102807
20 Cover, Control Box, GS1000, CGA2K 110114
21 Control Box, GS1000, CGA2K 110116
22 Control Board, GS1000, CGA2K, 120V 110128
23 Pulley, 14FL075, 5/8 Shaft 010194
24 Power Supply, 120VAC - 24VDC, 1A 107750
25 Power Switch / Outlet Combo 110132
26 Transformer,115/24 VAC,40 VA 005244



HIGH SPEED OPTION

Item Description Part Number Price
1 Frame, 2 Ft/Sec, GS1000 010645
3 Sprocket, 22T, Drive, #50 010456
6 Cover Assy, Oper, HISPD, GS1000 103371
23 Pulley, TL20L075 Type 3F TL1008 010599



DROP OUT LOCK OPTION

Item Description Part Number Price
19 Plate Assy, DOL, GS1000 103003
19c Lock Assy, DOL, GS1000 103004
22 Control Board, GS1000-DO, CGA2K, 120V 110129



#50 CHAIN OPTION

Item Description Part Number Price
3 Sprocket, Drive, 17T #50 010208
