Doorking Parts - 9310-080

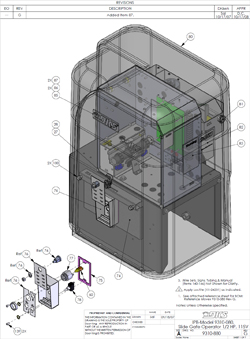

Doorking Parts - 9310-080 (View 1)

Click Image to Enlarge

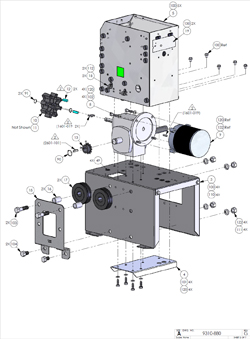

Doorking Parts - 9310-080 (View 2)

Click Image to Enlarge

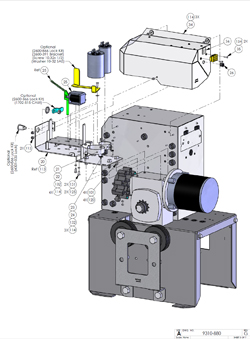

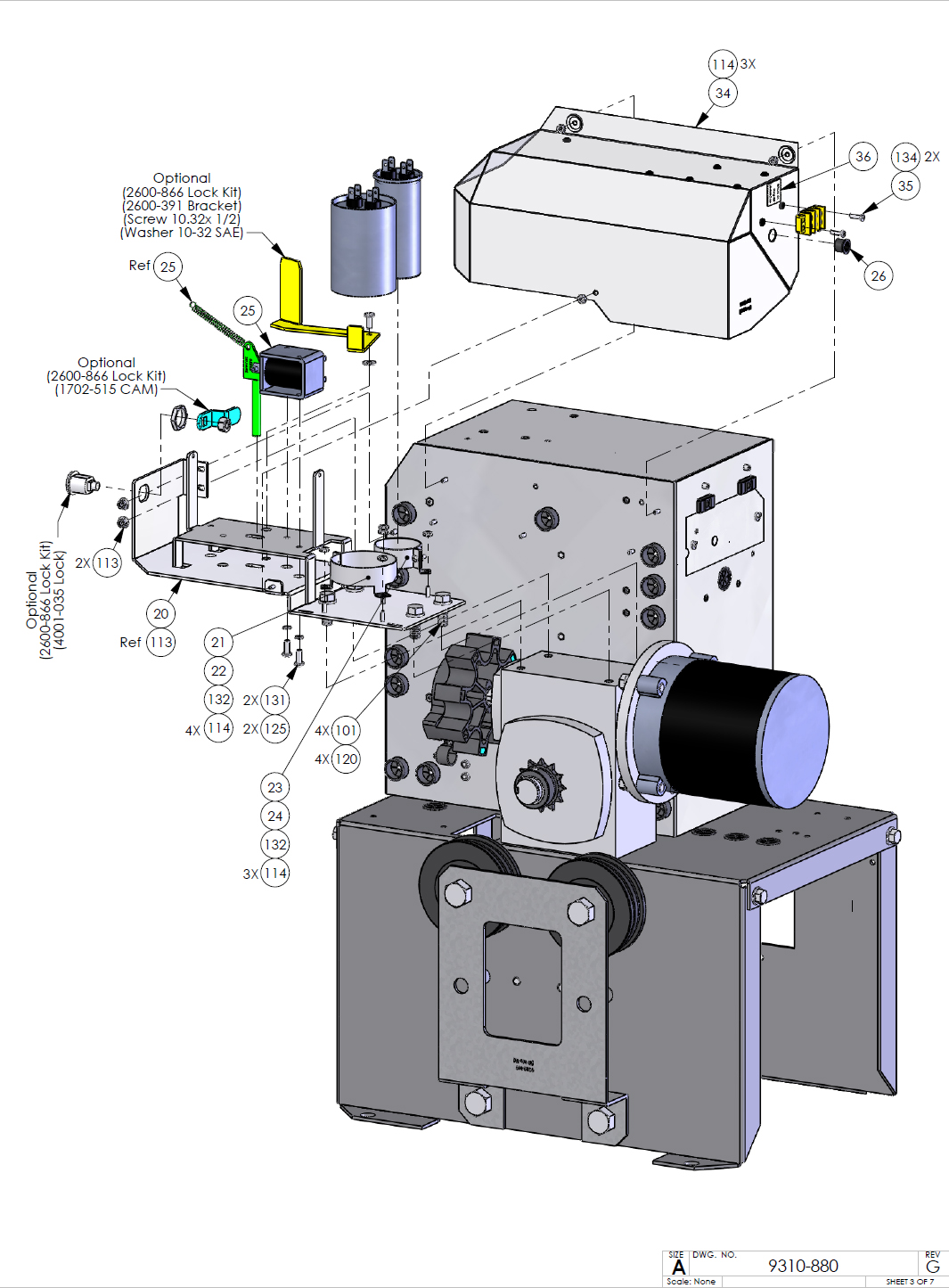

Doorking Parts - 9310-080 (View 3)

Click Image to Enlarge

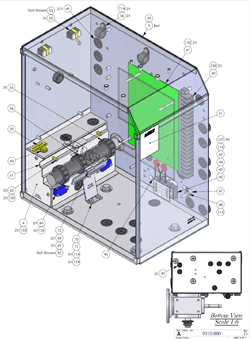

Doorking Parts - 9310-080 (View 4)

Click Image to Enlarge

Doorking Parts - 9310-080 (View 5)

Click Image to Enlarge



CALL FOR PRICE

Item Description Part Number
1 IBP-Slide Gate Operator 1/2 HP 115V 9310-880
3 Base 9310 9310-304
4 Base Stiffener Model 9300 2600-305
5 Box Control 9310 9310-106
6 Bracket Wire Cover 2600-318
8 Gearbox LIM-60D 10:1 9310 2600-350
9 Motor 1/2 HP C Face Emerson 2600-156
10 Lock Sprocket Nylon ST801 2600-365
11 Label Caution Remove Rod 2599-220
12 Magnet Rectangular 2600-908
13 Sprocket 12 tooth 1" Bore #41 2600-366
15 Bracket Idler 9310 9310-109
16 Bushing 9300 1.5L x 1.0 OD x .63 ID 2600-888
17 Idler Chain 2600-398
18 Wire Clp-5/8 Concord 770-1209 2600-619
19 Cover Plastic Insulator 2600-945
20 Panel Solenoid 9310 9310-390
21 Capacitor Mounting Clamp 2600-875
22 Capacitor 50uf 370VAC 2600-102
23 Capacitor Clamp VR6B 2600-239
24 Capacitor 30uf 370VAC 2600-234
25 Solenoid Lock Assy 9310 2600-861
26 Bushing 1/2 2600-820
27 Lock N16058BDxSFx2K Key 16120 4001-035
28 Cam "J" Hook 1702-507
34 Cover Solenoid Panel 9310 9310-103
35 Terminal Block-3 Position 2600-413
36 Label Radio 9310 2599-038
39 Cover Plastic 9310-006
40 Terminal 20 Pin 4001-020
41 PCB Gate Operator 4403-010
42 Marker Strip Silkscn Both Side 2600-410
43 Terminal Block-2 Position 2600-414
44 MOV Assembly 130VAC 4001-093
45 Terminal Block Cover 2 Position 3129-002
46 Decal Copper Wire Only 2599-014
47 Decal SUPPLY GND 2599-006
48 Washer Cup - Brass 2600-439
49 Bushing 7/8 Poke Thru Flaps 2600-810
50 Outlet Snap-In Leviton 1306 1200-028
51 Label Patent 2599-008
52 Wire Nut #71B 1215-018
53 Wire Crimp On #9 Full Insul 2600-753
55 Limit Nut 2600-246
56 Limit Nut w Magnet Assembly 2600-248
59 Label Key Model 9310 2599-096
60 Switch Push Button N.O. 1812-005
61 Bracket Wheel Lock 9300 2600-307
65 Spring-Compression Limits 2600-857
66 Switch Micro No NC C 1804-024
68 Screw Flat Head #0-90x1/4 Slot 2616-031
69 Nut Hex 00-90 Brass Zinc Plt 2620-399
70 Bracket Partial Limit 9310 9310-300
71 Bracket Partial Limit Mt. 9310 9310-301
72 Switch Magnetic Sensor 1601-256
74 Bracket Switch 9310 9310-102
75 Gasket Switch Cover 2600-731
76 Switch Cover Doorking Lockable 2600-533
77 Tone Generator Loud 1506-071
78 Switch Toggle SPST 2POS 1601-041
80 Cover Operator 9310 1/2 Hp 2600-505
81 Hole Plug Blk Nylon 1.00" dia. 2600-793
82 Label Universal 2599-199
83 Label Gate Operator 2599-034
85 Nameplate Plastic DKS 2600-732
86 Washer Push on Clamp 2802-040
87 Gasket, Microphone Support 1897-052
90 Snap Ring 1" #3100-100ZD 2630-011
91 Snap Ring 5/8 5100-62-ZY 2630-015
100 Bolt Whiz Lock 5/16-18 x 1/2 2615-252
101 Bolt Hex Head 3/8-16 x 1 2615-052
102 Bolt Hex Head 3/8-16 x 1 1/2 2615-055
103 Bolt Hex Head 5/8-11 x 2 1/2 2615-035
104 Bolt Hex Head 5/8-11 x 1 2615-031
110 Nut Hex Flange Lock 5/16-18 2620-411
111 Nut Hex 5/8-11 2620-435
113 Nut Nylon Lock 8-32 2902-004
114 Nut Hex 6-32 2620-400
116 Key Polarizing Tyco 1437410-5 4001-021
120 Lockwasher 3/8 2620-047
122 Lockwasher 5/8 2620-049
124 Washer 3/8 SAE 2620-019
125 Washer #10 SAE 2620-010
130 Screw Round Head 4-40 x 1/4 2904-001
131 Screw 10-32 x 1/4 1816-039
132 Screw Phillips Head 6-32 x 1/4 2616-000
134 Screw Phillips Head 6-32 x 1/2 2616-002
135 Screw Phillips Head 6-32 x 3/4 2616-003
136 Screw Round Head 4-40 x 5/8 2904-004
137 Screw Phillips Head 8-32 x 3/4 2616-019
138 Screw Phillips Head 6-32 x 5/8 2616-007
139 Screw Phillips 10-32 x 3/8 2616-051
140 Wire Set 9310 115/230 Single P 9300-043
141 Wire Blue 18AWG 24" 7082-192
142 Wire MiniFit Recept Start Cap 7082-193

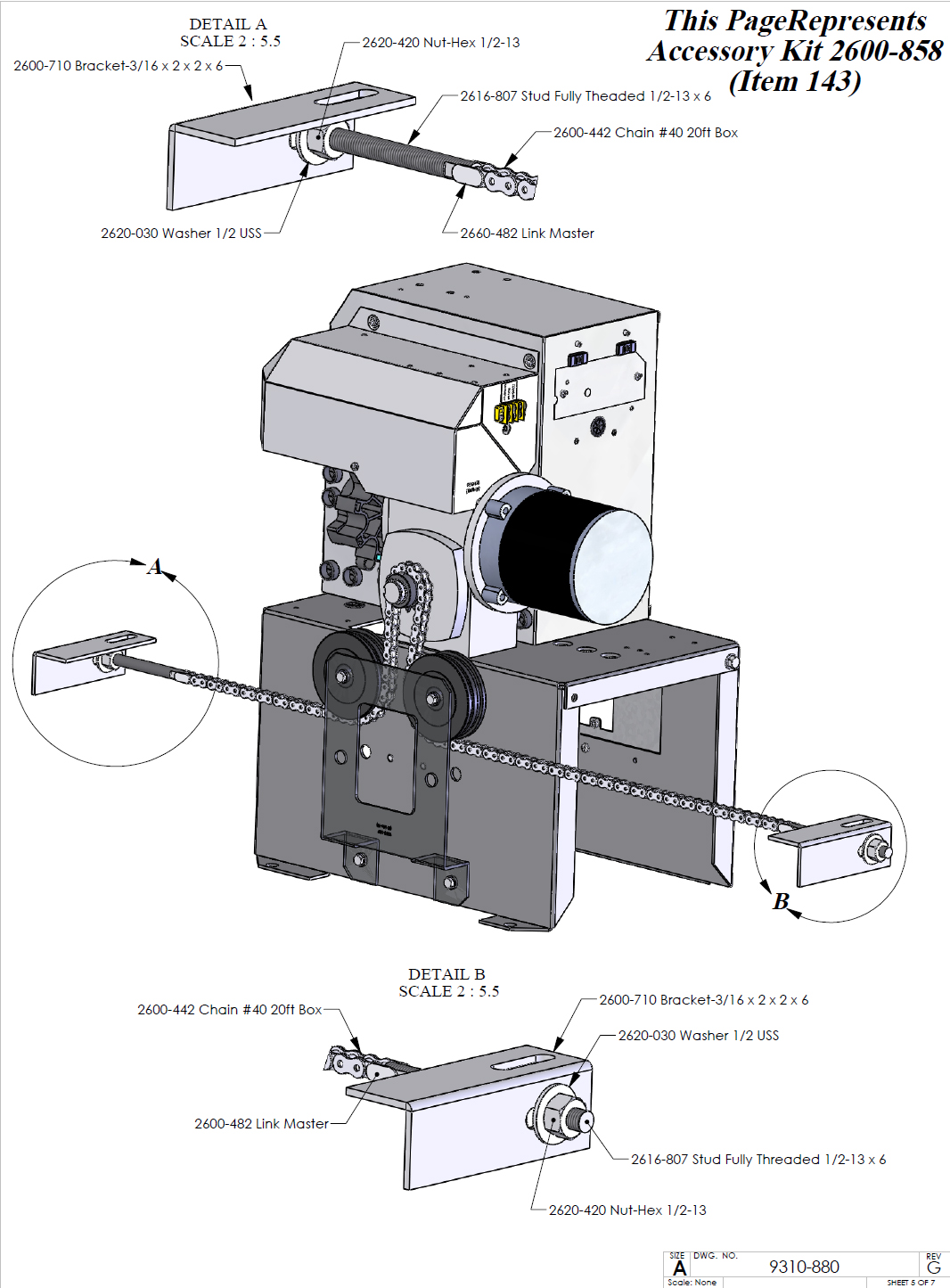

143 Accessory Box 9300 Operator 2600-858
144 Sign Warning 2599-100
145 Tubing Flex/slit 1/4OD 9402-053
146 Manual 9310-065



PRODUCT: "Doorking 9310, 2600-254, Limit Nut w Magnet Assembly """ -- Add To Cart For Special Pricing - To Low To Advertise

PRODUCT: "Doorking 9310, 2600-259, Limit Nut """ --Add To Cart For Special Pricing - To Low To Advertise
