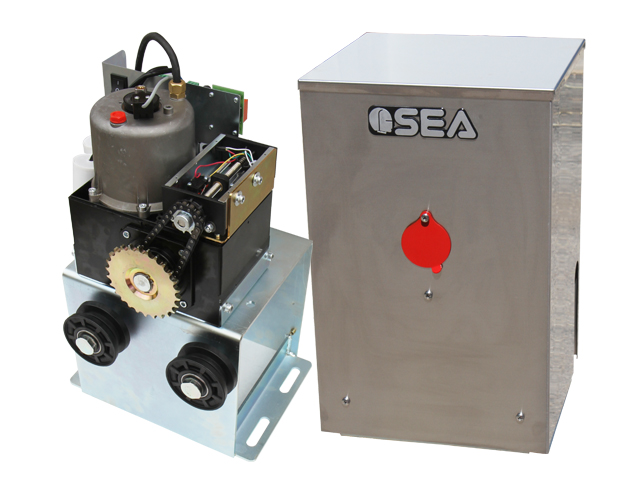

SEA Lepus Box Slide Gate Operator, SEA Lepus Box Slide Operator


SEA Lepus Box Slide Gate Operator, SEA Lepus Box Slide Operator

POWERFUL COMMERCIAL Chain SLIDING OPERATOR
The reliability of the oil-bath motor-reducer.
• Sliding motor for heavy duty application.
• For gates up to 37 feet length and 1200 pounds.
• SEA TOTAL QUALITY: all parts are manufactured and tested
“IN HOUSE”.
• Electric motor and reduction gear are constantly immersed
in oil-bath, granting long term performance.
• Gears housed in a single piece cast aluminum block.
• Mechanical clutch in oil-bath as an anti-crush safety device.
• Electronic clutch as an extra anti-crush safety device.
• Reversing system in case of obstruction (ENCODER).
• Easy and unique manual release with key.
• Ball bearing wheels.
• Polyethylene case with stainless steel door to access the
manual release.
• Multi-function control board Pre-Gate 2 with plug-in loop
detectors.
• Buzzer alarm.
• Duty Cycles*: 60 per hour.

 Manual

 Spec Sheet

SEA Lepus Box - Chain -- $ 1,349.33




Code Description Max leaf
length
Max leaf
weight
Operator
weight
Opening
time
110MEcobox-a Lepus box 37 feet 1200 pounds 95 pounds 13 inch / sec

ACCESSORIES

G-LOCK Magnetic lock
OIL Oil in 1 quart bottle
23105012 Heater

• The package includes 20 feet of chain (type 40), external receiver, remote control SMART 433 Mhz.
