GATE OPENER BRANDS

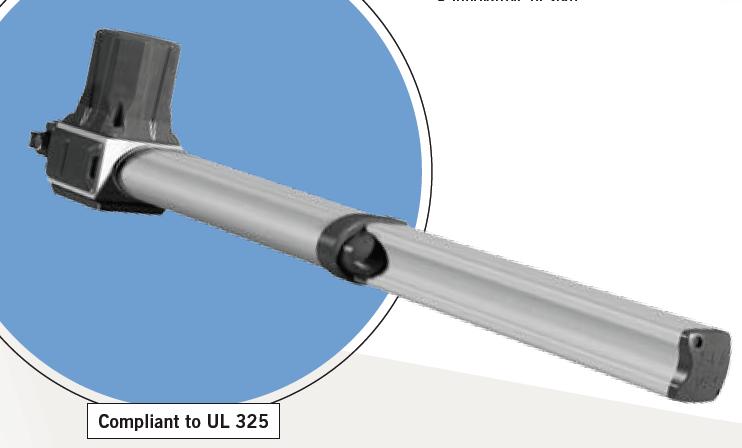

SEA ALPHA / Alpha 550 24V
ELECTRO-MECHANICAL SWING OPERATOR FOR RESIDENTIAL APPLICAT ION

  • Electromechanical irreversible swing gate operator, for max. leaf length of 18 feet
  • 24V version
  • Stainless steel rod
  • On request version without housing for installations closer to the gate tip
  • Optional oscillating aluminium front bracket for inclined opening
  • Optional oscillating aluminium fork back fixing (standard on ALPHA 550)
  • Cable and capacitors inside the operator, accessible through front lid
  • Mechanical positive stop o request
  • Release with key

 Spec Sheet

SEA Alpha 24V Single with Control Box - Left -- $ 1,133.44 SEA Alpha Single with Control Box - Left -- $ 909.33

SEA Alpha 24V Single with Control Box - Right -- $ 1,133.44 SEA Alpha Single with Control Box - Right -- $ 909.33




Code Description Stroke Max leaf
length
Max leaf
weight
Operator
weight
Opening
time
1095524OD-1-CSA ALPHA 550 24V DC right 15 3/4 18 feet 1100 pounds 20 pounds Adjustable
1095524OS-1-CSA ALPHA 550 24V DC left 15 3/4 18 feet 1100 pounds 20 pounds Adjustable

ACCESSORIES

12710305 SEA Positive Stop (1 pcs) -- $ 105.31
16700055 SEA Electric Lock with Cylinder Kit -- $ 170.34
G-LOCK EMX Outdoor Magnetic Lock G-Lock 1200lbs -- $ 223.00
10900230 SEA Reversing Sensor Encoder Kit -- $ 74.90
12715070 SEA Post Bracket with Screws (1 pcs) -- $ 48.48
23105049 SEA Battery Back Up for A.C. Motors -- $ 1,023.52
23120420 SEA RF Receiver Module - Plug In 433MHz -- $ 23.76

CONTROL BOARDS - Replacement Only

2302a110g2-A Gate 2 receiver 433 Mhz and enclosure-- $ 480.41
2302A110g2PW Gate 2 pre-wired* receiver 433 Mhz and enclosure -- $ 932.75
2302A110g2-Ar Gate 2 replace only circuit -- $ 425.00
2302a24g2 PRE-Gate 2 24V** receiver 433 Mhz and enclosure -- $ 396.00
2302a24g2-r PRE-Gate 2 24V replace only circuit -- $ 330.88

* GATE 2 Prewired: GATE 2 + Loop Module + Electric Switch + Plugs + Large Box + 2 plug-in Loop
** Battery backup included
