Store  :  BFT Gate Operators - BFT Swing Gate Openers, BFT Slide Gate Openers, Arm Barriers

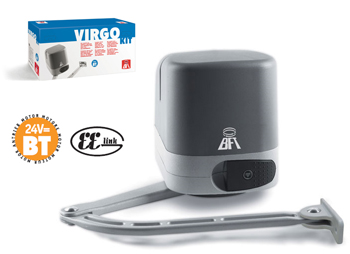

BFT Virgo Series




A MODEL FOR EVERY NEED
  • Great versatility thanks to the levers that permit installation on columns for opening up to 120°. Maximum offset 8” (20 cm).
SMART TECHNOLOGY
  • Incorporated positive stops and adjustable electric limit switches.
  • Separate programming of the two motors.
  • Control unit with self-learning and selfdiagnostic functions.
  • Quick delayed motor reversing.
  • Control unit compatible with the EELink protocol.
SAFE USE
  • Specially designed for simpler and faster installation in compliance with latest safety standards.
  • Thanks to the obstruction sensing device, the operator reverses motion and prevents damage to people and vehicles in the event of contact.
SIMPLER INSTALLATION
  • Incorporated control unit positioned frontally for easier accessibility.
  • Control unit programming by LCD display.
  • Boltable and weldable post brackets.



 Installation Manual  Spec Sheet

BFT Virgo BT Column Mount Swing Gate Operator Double Kit Handles Gates 440LBS

Kit Includes

  • 2 Operators
  • 1 Receiver
  • 2 Remote Controls
  • Reflective Safety Eye

Our Price: $ 1,298.61

BFT Virgo BT Column Mount Swing Gate Operator Single Kit Handles Gates 440LBS

Kit Includes

  • 1 Operators
  • 1 Receiver
  • 2 Remote Controls
  • Reflective Safety Eye

Our Price: $ 715.00



Model Voltage Leaf Weight Leaf Length Price
BFT VIRGO OPERATOR BT W/BOARD (CONTROL PANEL)
24 V
up to 440 lb (~200 kg) up to 6’ 6’’ (2 m) Our Price: $550.58
BFT VIRGO SQ OPERATOR ONLY
24 V
up to 440 lb (~200 kg) up to 6’ 6’’ (2 m) Our Price: $331.71



Technical Features

Control panel LINX (incorporated)
Reversible/irreversible operator irreversible
Power supply 120 V 60 Hz single-phase
Absorbed power 0.05 hp (40 W)
Thermal protection integrated
Opening and Closing Time 14 s
Impact Reaction electronic torque limiter integrated in the control panel
Lock mechanical on closing and opening
Manual Release release lever with key
Operating cycle intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C)
Degree of protection IP44
Operator weight VIRGO 17 lb (~8 kg) - VIRGO SQ 13 lb (~6 kg)
Dimensions see below

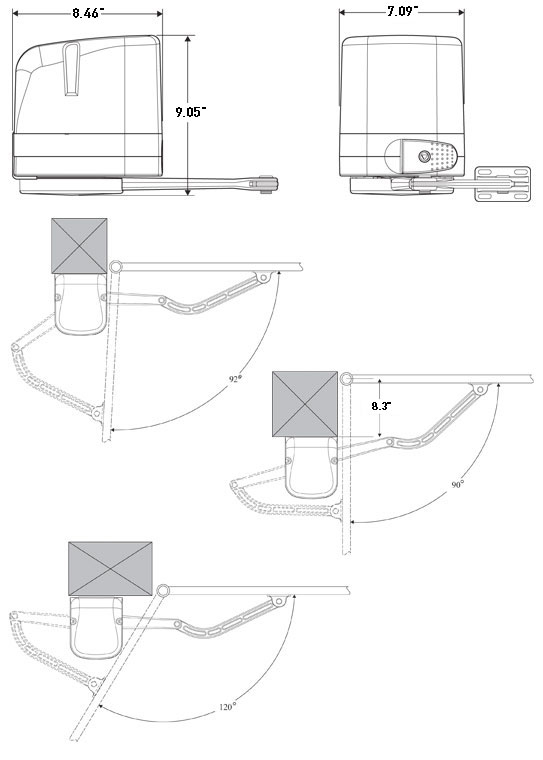

Dimensions

Residential Use
