Store  :  BFT Gate Operators - BFT Swing Gate Openers, BFT Slide Gate Openers, Arm Barriers

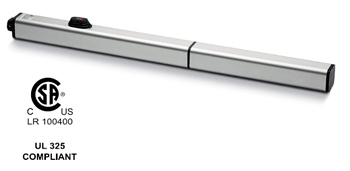

BFT P7 - P4,5




Hydraulic Operator For Swing Gates



A MODEL FOR EVERY NEED

  • Two versions available, one for gates with leaves up to 15’ (4.5 m) and one for leaves up to 23’ (7 m).
SMART TECHNOLOGY
  • Adjustable slowdown when closing.
  • Customized release key.
SAFE USE
  • Crushing prevention guaranteed by two adjustable bypass valves.

 Installation Manual

 Spec Sheet


Special features:
• Opening angles of 120 degrees
• reversible
• Easy manual release in case of power failure
• Opening and closing: 17 seconds (30 seconds on larger model)
• Adjustable working time from LCD panel control board
• Rated up to 500 opening and closing cycles per day
• Six different models to ensure that all application and installation scenarios are met
• Optional internal positive stops available on some operators: no need for external stops on the driveway
• Optional thermostatically controlled heater available to ensure smooth operation in colder climates
• Install a complete pre-wired electrical enclosure box to further improve aesthetics and add many optional entry and safety systems all in one confined lockable enclosure box
• Hydraulic adjustable torque setting.
• Torque limiter from the control panel
• Heated board option for cold weather climate



Model Voltage Leaf Weight Leaf Length Price
BFT P4.5 UL/CSA 120V
120 V
up to 1100 lb (500 kg) up to 15’ (4.5 m) Our Price: $949.75
BFT P7 UL/CSA 120V
120 V
up to 1100 lb (500 kg) up to 23’ (7 m) Our Price: $949.75



Technical Features

  P4,5 P7
Control panel RIGEL 4 UL/CSA (suggested) RIGEL 4 UL/CSA (suggested)
Reversible/irreversible operator reversible reversible
Power supply 120 V, 60 Hz single-phase 120 V, 60 Hz single-phase
Absorbed power 0,33 hp (250 W) 0,33 hp (250 W)
Thermal protection integrated integrated
Rod working stroke 15.35’’ (390 mm) 15.35’’ (390 mm)
Rod speed 0.55 ips (14 mm/s) 0,33 ips (8,3 mm/s)
Opening Time 30 s 45 s
Closing Time 28 s + slowdown 42 s + slowdown
Slowdown hydraulic on closing hydraulic on closing
Impact Reaction hydraulic clutch hydraulic clutch
Lock electric lock electric lock
Manual Release reversible + release knob reversible + release knob
Operating cycle intensive use intensive use
Environmental conditions da 14°F (-10°C) a 140°F (+60°C) da 14°F (-10°C) a 140°F (+60°C)
Degree of protection IP55 IP55
Operator weight 122,5 N (~12,25 kg) 122,5 N (~12,25 kg)
Dimensions see below see below

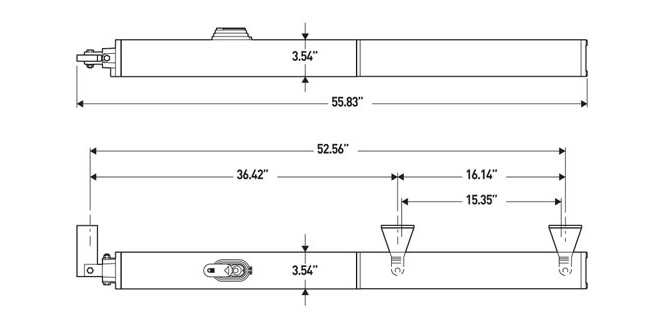

Dimensions

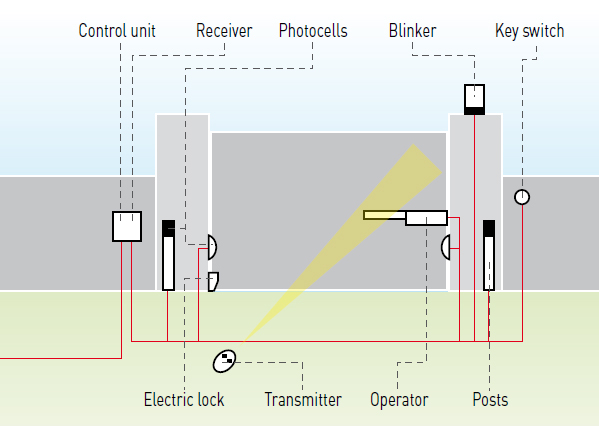

Collective and Industrial Use
