Store  :  BFT Gate Operators - BFT Swing Gate Openers, BFT Slide Gate Openers, Arm Barriers

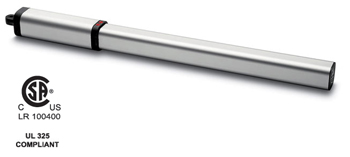

BFT LUX




Hydraulic Operator For Swing Gates



A MODEL FOR EVERY NEED

    Several versions available:
  • with slowdown
  • internal positive stops
  • longer stroke.
  • All of them are irreversible.
SAFE USE
  • Crushing prevention guaranteed by two adjustable bypass valves.

 Installation Manual

 Spec Sheet


BFT Lux FC 2B Hydraulic Swing Gate Kit 110 Volt Handles Gates 660lbs

Kit Include:

  • (1) Arm Swing gate opener
  • Rigal 4 Control Panel

Our Price: $ 1,052.45

BFT Lux G BT 2B Hydraulic Swing Gate Kit 24 Volt Handles Gates 1750lbs

  • (1) Arm Swing gate opener
  • Thalia P Control Panel

Our Price: $ 1,257.06

BFT Lux FC 2B Hydraulic Swing Gate Kit 110 Volt Handles Gates 660lbs 10'

Kit Include:

  • (1) Arm Swing gate opener
  • Rigal 4 Control Panel

Our Price: $ 958.06

BFT Lux BT 2B Hydraulic Swing Gate Kit 24 Volt Handles Gates 660lbs 10'

Kit Include:

  • (1) Arm Swing gate opener
  • Thalia P Control Panel

Our Price: $ 1,153.85



BFT Lux BV2B Hydraulic Swing Gate Kit 110 Volt Handles Gates 700lbs 15'

Kit Include:

  • (1) Arm Swing gate opener
  • Rigal 4 Control Panel

Our Price: $ 1,257.06

BFT Lux R 2B 2SN Hydraulic Swing Gate Kit 110 Volt Handles Gates 660lbs 10'

Kit Include:

  • (1) Arm Swing gate opener
  • Rigal 4 Control Panel

Our Price: $ 1,133.21



Model Voltage Leaf Weight Leaf Length Price
BFT LUX 2B UL/CSA 120 Volt - ARM ONLY
120 V
up to 660 lb (300 kg) up to 10’ (3 m) Our Price: $592.28
BFT LUX FC-2B UL/CSA 120 Volt - ARM ONLY
120 V
up to 660 lb (300 kg) up to 10’ (3 m) Our Price: $681.33
BFT LUX R2B 2SN UL/CSA 120 Volt - ARM ONLY
120 V
up to 660 lb (300 kg) up to 10’ (3 m) Our Price: $702.30
BFT LUX GV-2B UL/CSA 120 Volt - ARM ONLY
120 V
up to 700 lb (320 kg) up to 15’ (4,5 m) Our Price: $684.85

BFT Lux BT 2B Hydraulic Swing Gate

A MODEL FOR EVERY NEED

  • Several versions available: with slowdown, internal positive stops, longer stroke. All of them are irreversible.

SAFE USE

  • Crushing prevention guaranteed by two adjustable bypass valves.
  • These 120 volt hydraulic linear arms will give full satisfaction and will smoothly operate any gate up to 700 pounds per leaf.

Special features:

  • Opening angles of 120 degrees.
  • Irreversible (cannot be opened manually when motor is engaged).
  • Easy manual release in case of power failure.
  • Opening and closing: 17 seconds (30 seconds on larger model).
  • Adjustable working time from LCD panel control board.
  • Rated up to 500 opening and closing cycles per day.
  • Six different models to ensure that all application and installation scenarios are met
  • Optional internal positive stops available on some operators: no need for external stops on the driveway
  • Optional thermostatically controlled heater available to ensure smooth operation in colder climates.
  • Install a complete pre-wired electrical enclosure box to further improve aesthetics and add many optional entry and safety systems all in one confined lockable enclosure box.
  • Hydraulic adjustable torque setting.
  • Electronic obstruction detection device from the control panel.
  • Adjustable slow-down on opening and closing.



REFERENCE
DESCRIPTION
VOLTAGE
LEAF WEIGHT
LEAF LENGTH
P935080 00001 LUX BT 2B 24 V up to 660 lbs (~300 kg) up to 10’ (3 m)
P935083 00001 LUX G BT 2B 24 V up to 1750 lbs (~800 kg) up to 16’ (5 m)
P935011 00013 LUX 2B UL/CSA 120 V up to 660 lbs (~300 kg) up to 10’ (3 m)
P935039 00002 LUX FC 2B UL/CSA 120 V up to 660 lbs (~300 kg) up to 10’ (3 m)
P935046 00004 LUX R 2B 2SN UL/CSA 120 V up to 660 lbs (~300 kg) up to 10’ (3 m)
P935014 00010 LUX GV2B UL/CSA 120 V up to 700 lbs (~320 kg) up to 15’ (4,5 m)



TECHNICAL FEATURES
LUX BT
LUX G BT
LUX 2B UL/CSA
Control panel LIBRA CLX LIBRA CLX RIGEL 4 UL/CSA (suggested)
Reversible/irreversible operator irreversible irreversible irreversible
Power supply 24V 24V 120 V, 60 Hz single-phase
Absorbed power 0.4 hp (300W) 0.4 hp (300W) 0.33 hp (250 W)
Thermal protection integrated in the control board integrated in the control board integrated
Rod working stroke 10.6” (270 mm) 15.4” (392 mm) 10.63’’ (270 mm)
Rod speed 0.55 ips (14 mm/s) 0.55 ips (14 mm/s) 0.55 ips (14 mm/s)
Opening and closing time 14s 20s 17s
Slowdown - - -
Impact reaction hydraulic clutch hydraulic clutch hydraulic clutch
lock hydraulic opening/closing hydraulic opening/closing hydraulic opening/closing
Manual release release key release key release key
Operating cycle intensive use intensive use intensive use
Environmental conditions from 14°F (-10°C) to 140°F (+60°C) from 14°F (-10°C) to 140°F (+60°C) from 14°F (-10°C) to 140°F (+60°C)
Degree of protection IP55 IP55 IP57
Operator weight 19 lbs (~8,7 kg) 19 lbs (~8,7 kg) 19 lbs (~8,7 kg)
Dimensions see drawing see drawing see drawing



TECHNICAL FEATURES

LUX FC 2B UL/ CSA
LUX R 2B 2SN UL/CSA
LUX GV 2b UL /csa
Control panel RIGEL 4 UL/CSA (suggested) RIGEL 4 UL/CSA (suggested) RIGEL 4 UL/CSA (suggested)
Reversible/irreversible operator irreversible irreversible irreversible
Power supply 120 V, 60 Hz single-phase 120 V, 60 Hz single-phase 120 V, 60 Hz single-phase
Absorbed power 0.33 hp (250 W) 0.33 hp (250 W) 0.33 hp (250 W)
Thermal protection integrated integrated integrated
Rod working stroke 11.02’’ (280 mm) 9.84’’ (250 mm) 15.35” (390 mm)
Rod speed 0.55 ips (14 mm/s) 0.55 ips (14 mm/s) 0.55 ips (14 mm/s)
Opening AND CLOSING TIME 18 s 16 s 27 s
Slowdown - - -
Impact reaction hydraulic clutch hydraulic clutch hydraulic clutch
lock hydraulic opening/closing hydraulic opening/closing hydraulic opening/closing
Manual release release key release key release key
Operating cycle intensive use intensive use intensive use
Environmental conditions from 14°F (-10°C) to 140°F (+60°C) from 14°F (-10°C) to 140°F (+60°C) from 14°F (-10°C) to 140°F (+60°C)
Degree of protection IP57 IP57 IP57
Operator weight 19 lbs (~8,7 kg) 19 lbs (~8,7 kg) 19 lbs (~8,7 kg)
Dimensions see drawing see drawing see drawing

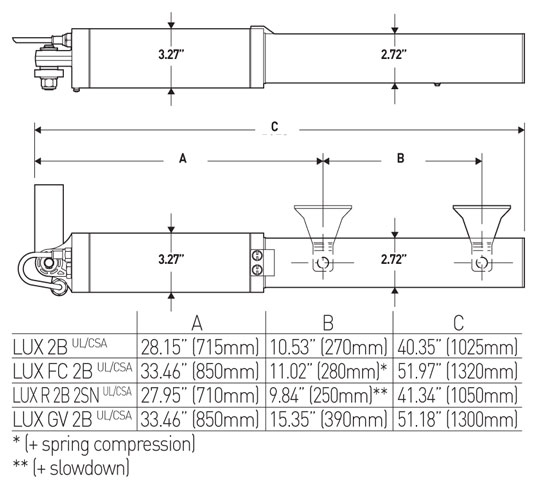

Dimensions

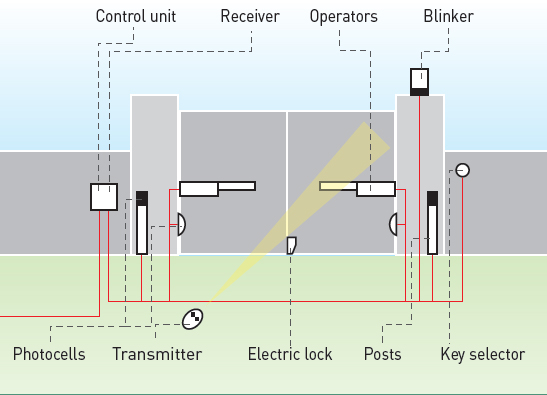

Residential and Collective Use
