Power Master MSW, Heavy Residential Light Commercial Swing Gate Operator
|
|
 |
Power Master MSW Heavy Residential Light Commercial
Swing Gate Operator
- 24V Control Circuit Solid State Motor Controller Maximum Run Timer 1.5 Second Delay on
Reversing On/Off Power Switch Can be Field Converted to Master/Slave Operation (2
Operators Required)
- Pre-wired to Accept 3 Button Station, Radio Control, Reversing Equipment, Loop Detector and
Automatic Closing Timer. Will Accept All Types of Access Equipment 3 Button NEMA 1 Control
Station Included
- For Residential, Commercial or Industrial Swing Gates (Up to 15' Wide or 800 lbs. Max.)
- Universal Left or Right Hand Mounting Steel
- All Weather Enclosure Designed for Pad or Post Mounting
- Hardware Supplied Gate Mechanically Locked in Closed Position
- Adjustable Torque Limiting Clutch V-belt and Worm gear Primary Reduction #41 Chain
Sprocket Final Reduction
- Heavy Duty Arm with Manual Disconnect Positive Cam Actuated Limit Switches
 Manual
Catalog Cut
Power Master MSW Heavy Residential or Light Commercial Swing Gate Operator -- $1,045.00

Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Compatible photo cell More Information here |

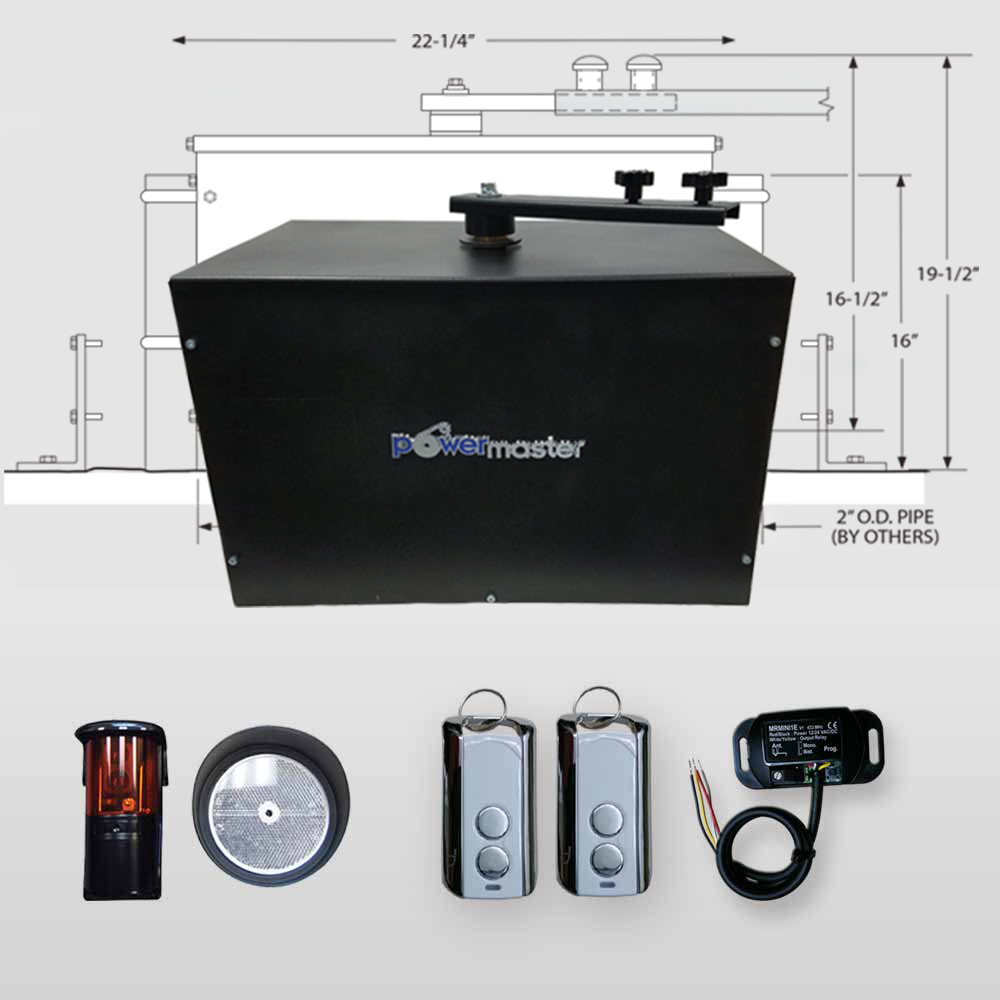

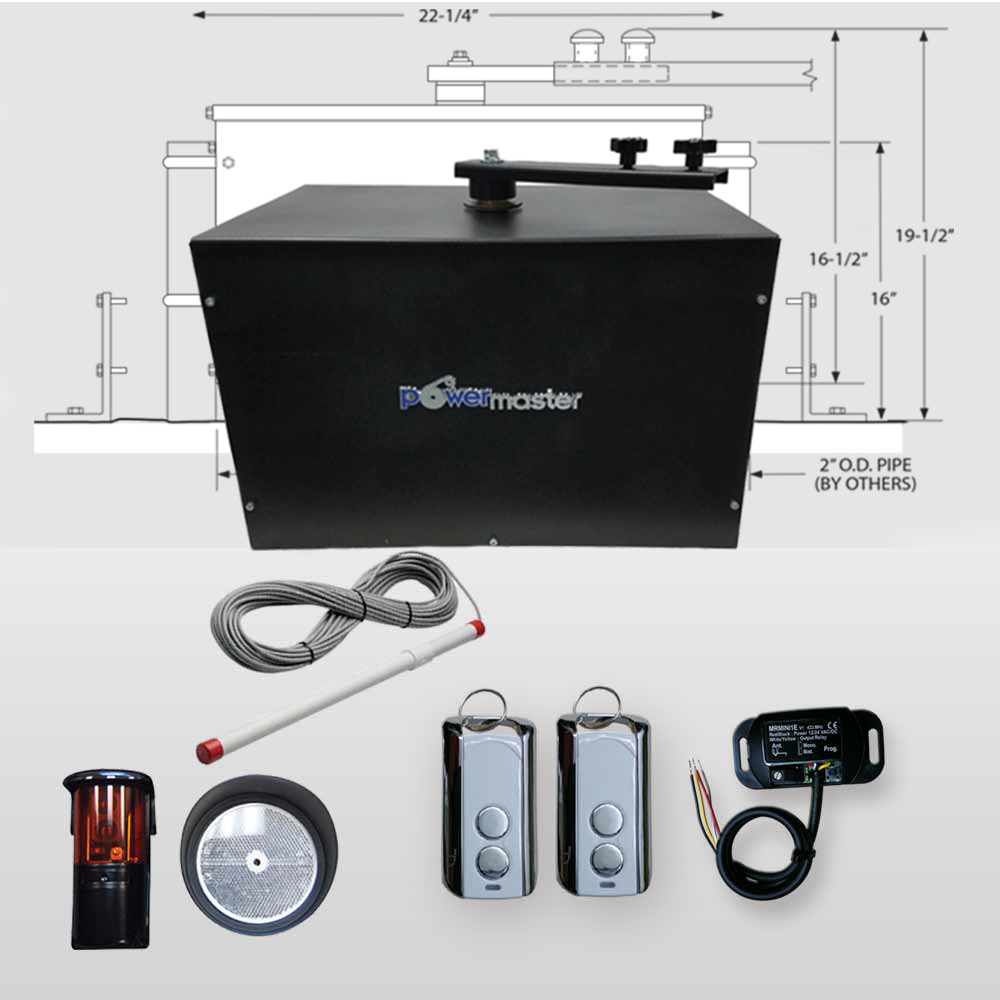

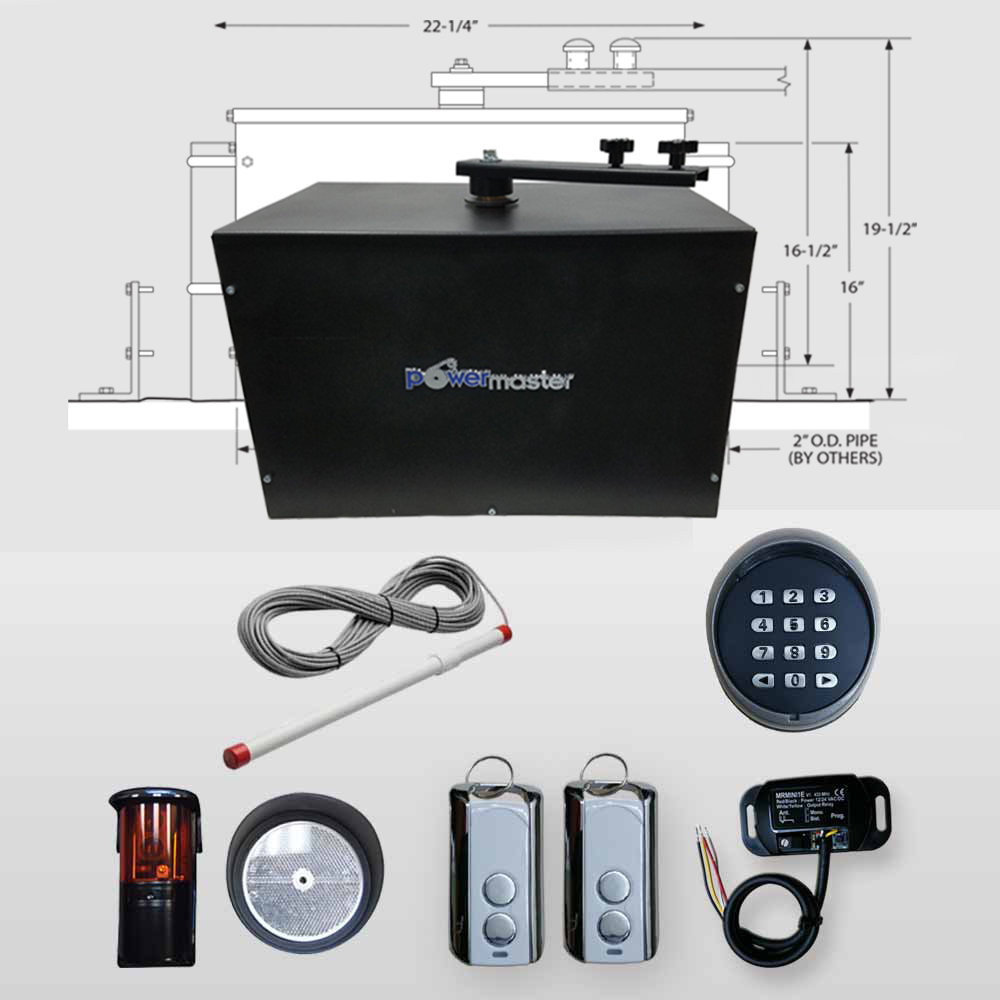

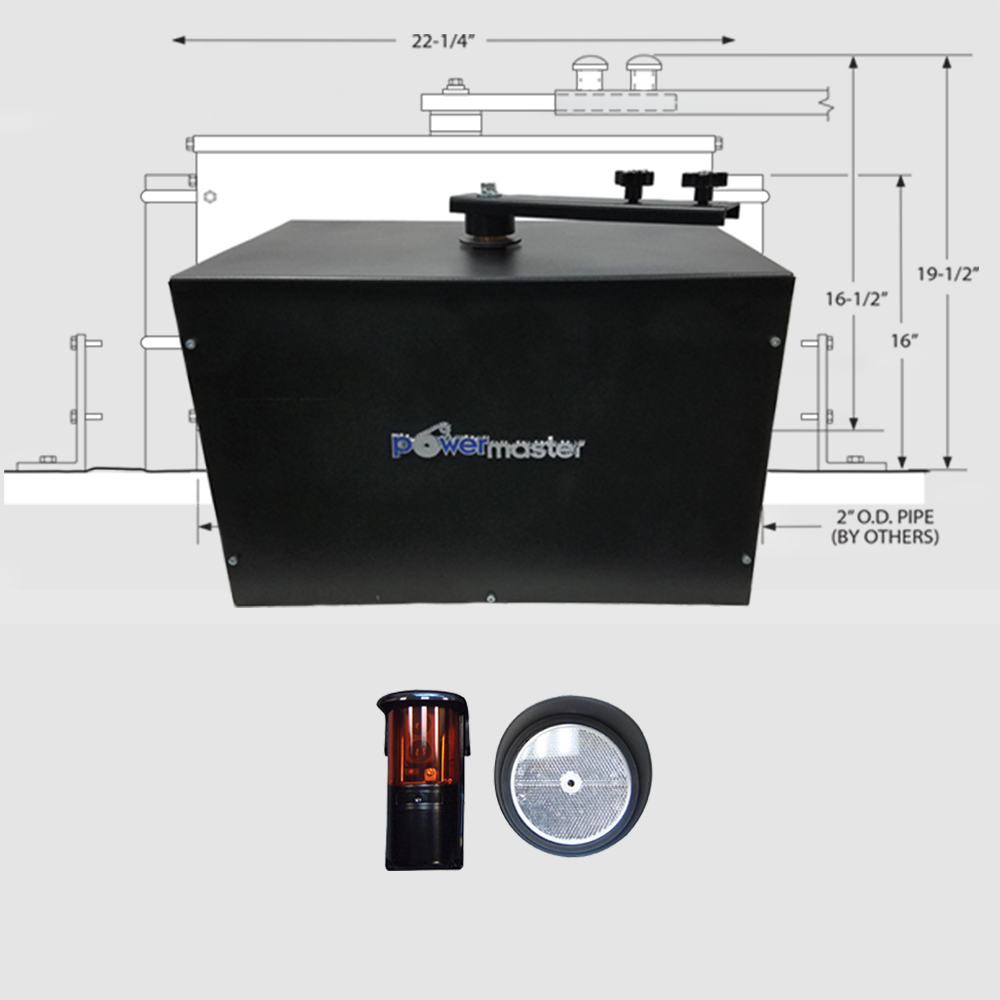

Power Master MSW, Heavy Residential Light Commercial gate openers kit
PowerMaster MSW Residential Gate Openers Architectural Specifications:
Supply Model MSW-51 Swing Gate Operator, rated at 1/2 horse power, 115 VAC., 1Ø operator shall be fully enclosed in a heavy gauge steel,
weatherproof cabinet, primed and painted to resist corrosion. The cabinet shall have sufficient room inside to mount optional equipment such as
heater elements, radio controls, timers and loop detectors. Speed reduction shall be provided by an oil-bath type wormgear speed reducer with an
adjustable torque limiting clutch on the output shaft. Final output drive shall be a minimum of 1" diameter steel. For manual operation, the gate arm
shall be easily disconnected without the use of tools.
Adjustable limit switches shall be directly actuated from output shaft, and shall not be affected
by removal of motor or by manual operation. The motor shall be of high starting torque, capable of starting or reversing gate from any position. Motor
shall be controlled by a solid state switching device and shall be protected from overload by a thermal sensing overload device. An on/off switch
shall be provided on control panel for servicing convenience.
Control circuit shall be 24 V and shall provide terminals for field connection of radio controls, obstruction sensing devices, automatic closing timer,
three button control stations or single contact control devices. A maximum run timer shall be provided to limit running time in either direction to 28
seconds or less. A delay on reversing shall be provided to reduce shock loading on gate operator. Electrical control panel shall be easily removable
for servicing or replacement. Terminal strips shall be provided for connection of all power and control device wiring.
The PowerMaster Model MSW Operator controls industrial vehicular swinging gates up to 800 pounds, with a maximum width of 16 feet.
- PSC motor
- Timer to Close
- Dual gate option
- Left/Right changeover in field
- Drive arm disconnects for manual operation
PowerMaster MSW Gate Operators Light Comercial Electrical Specifications:
115V, 1Ø
1/2 HP, Instant Reversing Motor w/Thermal Overload Protection (Max. Cycles per 5-10)
24V Control Circuit Solid State Motor Controller
Maximum Run Timer
1.5 Second Delay on Reversing
On/Off Power Switch
Can be Field Converted to Master/Slave Operation (2 Operators Required)
Pre-wired to Accept 3 Button Station, Radio Control, Reversing Equipment, Loop Detector and Automatic Closing Timer. Will Accept All Types of
Access Equipment
3 Button NEMA 1 Control Station Included
Max Gate Weight: 800lbs
Max Gate Width: 16ft
Battery Backup: NO
Travel Speed: 12 seconds to open/close
Shipping Weight (approx.): 103lbs
PowerMaster MSW Residential Gate Openers or Operators Mechanical Specifications:
For Residential, Commercial or Industrial Swing Gates (Up to 15' Wide or 800 lbs. Max.)
Universal Left or Right Hand Mounting
Steel All Weather Enclosure
Designed for Pad or Post Mounting, Hardware Supplied
Gate Mechanically Locked in Closed Position
Adjustable Torque Limiting Clutch
V-belt and Wormgear Primary Reduction
#41 Chain Sprocket Final Reduction
Heavy Duty Arm with Manual Disconnect
Positive Cam Actuated Limit Switches
|
