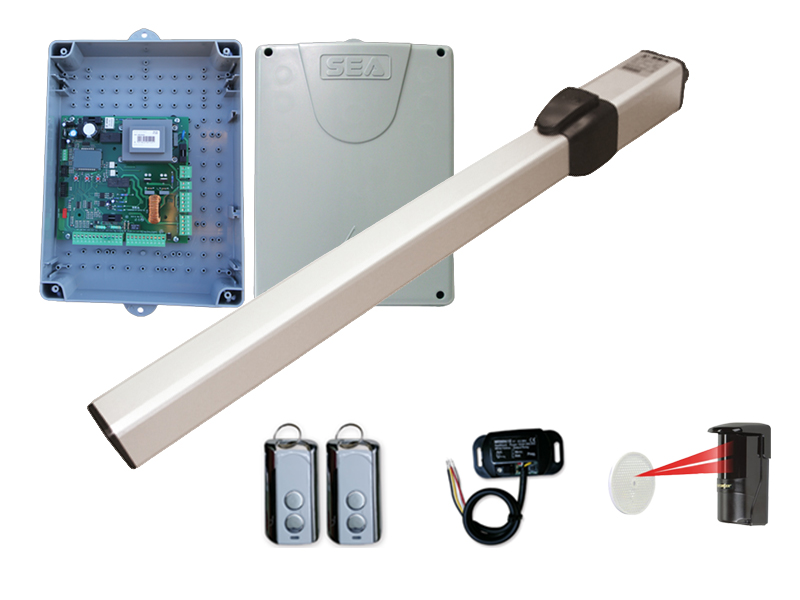

SEA Libra Mini Tank Single Kit

  • 1 Operator
  • 1 control board GATE 2
  • 1 Photocell
  • 2 Remote controls 433 Mhz
  • 2 Warning signs
  • 1 external receiver

Strong & Silent - The SEA Libra Mini Tank has been planned in accordance with standards of silence, reliability and anticrush safety granted by setting valve for the max thrust regulation of the system. New positive stops are available for a perfect alignment of the leaves in closing. Gates can be securely locked in the closed position using the operators internal hydraulic system. Manual Release: The operator’s internal hydraulic locking can be released using a special key, in case of power failure.

Positive Stops are Recommended

 Spec Sheet


SEA Mini Tank Kit Single -- $ 1,274.98


SEA Mini Tank Kit Single - Pre-Wired Control Box -- $ 1,680.53


SEA Mini Tank - Hydraulic Swing Operator For Residential Use

The Silence and Reliability of hydraulic Gate Operator

  • SEA Total Quality: All parts are manufactured and tested IN-HOUSE
  • The hydraulic system grants high and long term performances
  • By-pass valves as an Anti-Crush safety system
  • Electronic slow-down in opening and closing (GATE 2).
  • Concealed positive stops in option.
  • Manual release with key in case of power failure.
  • Linear encoder for the best setting on reverse and position management (optional)
  • Operator with external, hydraulic locks for easy replacement
  • Standard version with lock in closing (SC)
  • Duty Cycles*: 40 per hour
  • Piston stroke 270 mm / 10.6 inchesasd

ACCESSORIES

12710305 SEA Positive Stop (1 pcs) -- $ 105.31
12710295 SEA External Release with Box (1 pcs) -- $ 138.45
23105012 SEA Heater -- $ 86.24
OIL SEA Oil in 1 Quart Bottle -- $ 40.83
16700055 SEA Electric Lock with Cylinder Kit -- $ 170.34
G-LOCK EMX Outdoor Magnetic Lock G-Lock 1200lbs -- $ 223.00
23105335 SEA Safety Gate (1 pcs) -- $ 101.49
12715070 SEA Post Bracket with Screws (1 pcs) -- $ 48.48
23105049 SEA Battery Back Up for A.C. Motors -- $ 1,023.52
23120420 SEA RF Receiver Module - Plug In 433MHz -- $ 23.76

CONTROL BOARDS - Replacement Only

2302a110g2-A Gate 2 receiver 433 Mhz and enclosure-- $ 480.41
2302A110g2PW Gate 2 pre-wired* receiver 433 Mhz and enclosure -- $ 932.75
2302A110g2-Ar Gate 2 replace only circuit -- $ 425.00
