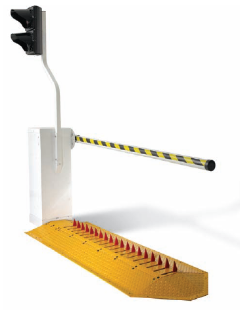

Doorking 1603 Arm Barrier Gate Operator
The DKS model 1603 Barrier Gate Operator / Automated Spike System is
designed as a modular system allowing for easy flexibility in different
applications and easy installation. The 1603 operator is designed with many
advanced features and mechanically links the spikes to the barrier arm. The
surface mount spikes are easy to install and do not require any trenching or
excavating. The 1603 auto-spike system is ideal for parking lots, rental car
agencies, schools, car dealerships, government agencies, or in any application
where a higher degree of traffic control is preferred.
A complete 1603 / auto-spike system consist of several different components. A
typical system will require a 1603 operator, transfer box (transfer box is factory
installed to the 1603 operator), tunnel section(s) as needed, spike section(s) as
needed, end cap. A traffic signal and/or warning sign is required with this
system. Contact your professional DKS system installer, or DoorKing, for more
information on complete system requirements.
CALL FOR PRICE
Doorking 1603 Arm Barrier Gate Operator
Operator - 15" W x 39.75" H x 15.5" D (381mm W x 1010mm H x 394mm D)
• 1/2 HP, 115, 230, 460 VAC *
• Mechanically links operator arm to the transfer box/spike system.
* 230 and 460 VAC units use a stepdown transformer to achieve 115 VAC operating voltage.
Transfer Box - surface mount 15" W x 4" H x 15.5" D (381mm W x 101.6mm H x 394mm D)
• Transfer box provides a mounting platform for the 1603 operator and links the operator to the spike units.
Tunnel Section - surface mount 31" W x 3" H x 24" or 36" L (787mm W x 76.2mm H x 610mm or 914mm L)
• Tunnel sections provide an extended connection from the transfer box to the spike sections.
• Tunnel sections can be mixed to create the desired length and are used when the 1603 is set back from the curb.
Spike Section - surface mount 31" W x 3" H x 36" L (787mm W x 76.2mm H x 914mm or 1829mm L)
• Spike sections can be mixed to create the desired length. For example, 3' sections can be combined for an overall
6', 9', or 12' spike section.
End Cap - 31" W x 3" H x 12.25" D (787mm W 76.2mm H x 311mm D)
• Provides a smooth end to the spike section.
Barrier Arm
• 14-foot round (3”) aluminum arm painted white with yellow & black visibility tape.
• 14-foot 1x4 wood arm painted white with yellow& black visibility tape.
Signal Light (option) - 9.75" W x 21" H x 14" D (247mm W x 533mm H x 355mm D) (includes lens shield)
• 115 VAC
• 8” Red and Green lenses
• 8000 hour / 67 watt traffic bulbs
• Mounting bracket for easy attachment to the 1603 operator
• 1 year limited warranty
Warning Sign (option) - 24" W x 24" H x 8" D (610mm W x 610mm H x 203mm D)
• 115 VAC
• Two 20 watt fluorescent lamps and one 150 watt flood lamp
• Light sensor turns sign on at dusk, off at dawn
• 2 year limited warranty
|
Step Two:
14' Foot Aluminum Arm- For
14' Foot Wood Arm
14' Foot Wood Arm and Folding Bracket Assembly
Aluminum Arm Hardware Kit (Without Arm)
Aluminum Arn and Folding Bracket Assembly
Wood Arm Hardware Kit (Without Arm)
TRAFFIC LIGHTS:
DoorKing 1603-208 Traffic Light Assembly - Designed to mount on 1603-215 mounting post (Post not included)
DoorKing 1603-210 Traffic Light Assembly - Includes mounting post & hardware for 1603 operator
DoorKing 1615-081 Warning Sign Use with 1603 auto-spike system (mounting Pipe Not Included)
|
|
Step One :
Doorking 1603-080 115V Vehicular Barrier with Auto Spike Gate Operator 1/2HP 115VAC
Doorking 1603-081 115V Vehicular Barrier with Auto Spike Gate Operator 1/2HP 115VAC, w / DC convenience open
Doorking 1603-082 230V Vehicular Barrier Gate Operator with Auto Spike Gate Operator 1/2HP
Doorking 1603-083 230V Vehicular Barrier Gate Operator with Auto Spike Gate Operator 1/2HP, w / DC convenience open
Doorking 1603-084 460V Vehicular Barrier Gate Operator with Auto Spike Gate Operator 1/2HP
Doorking 1603-085 460V Vehicular Barrier Gate Operator with Auto Spike Gate Operator 1/2HP, w / DC convenience open
Step Three:
2 FT Tunnel Sections Surface Mount
3 FT Tunnel Sections Surface Mount
End Cap Surface Mount
Spike 3 feet Sections Surface Mount
Spike 6 Feet Sections Surface Mount
Spike Connector Assemply
|
