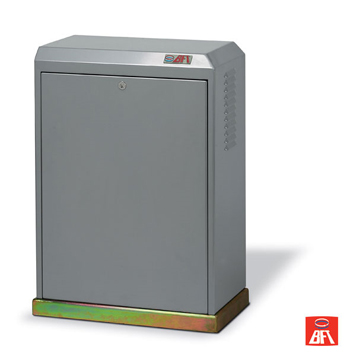

BFT SP4000


BFT SP4000



Electromechanical Automation For Rack Sliding Gates



SMART TECHNOLOGY

  • Hydrodynamic joint for smooth gate starts and stops.
SAFE USE
  • The strength and compactness of the structure guarantee the maximum reliability of operation over time.
  • The operator makes it possible to automate any type of gate, even the heaviest.

 Installation Manual

 Spec Sheet




Model Voltage Leaf Weight
P925169 00001 SP4000
400 V three-phase
up to 8800 lbs (~4000 Kg)
P925169 00002 SP4000 230 V
230 V three-phase
up to 8800 lbs (~4000 Kg)



Technical Features

Control panel SIRIO TEL (incorporated)
Reversible/irreversible operator irreversible
Power supply 120 V~ ± 10%, 50 Hz three-phase
Absorbed power 2 hp (1500 W)
Thermal protection overload cutout inside the control panel
Leaf speed 32’/min
Output rotational speed 30 min
Pinion pitch 6 (18 teeth)
Limit switches electromechanical
Manual release mechanical release with knob
Operating cycle very intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C)
Degree of protection IP24
Operator weight 187 lbs (~85 kg)
Dimensions see below

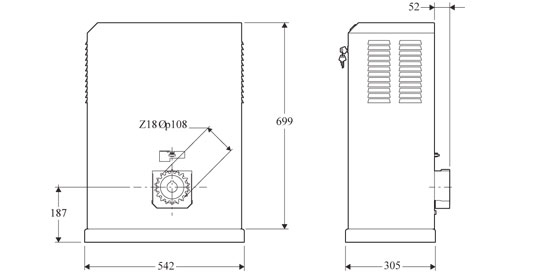

Dimensions

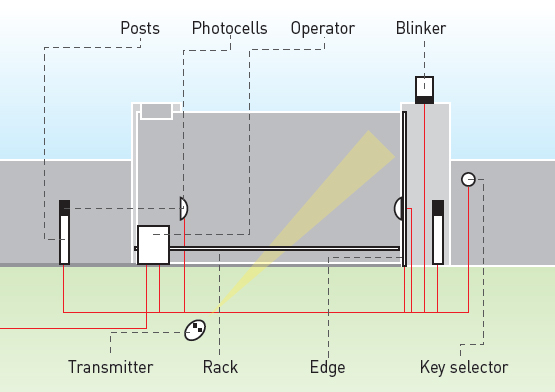

Industrial Use
