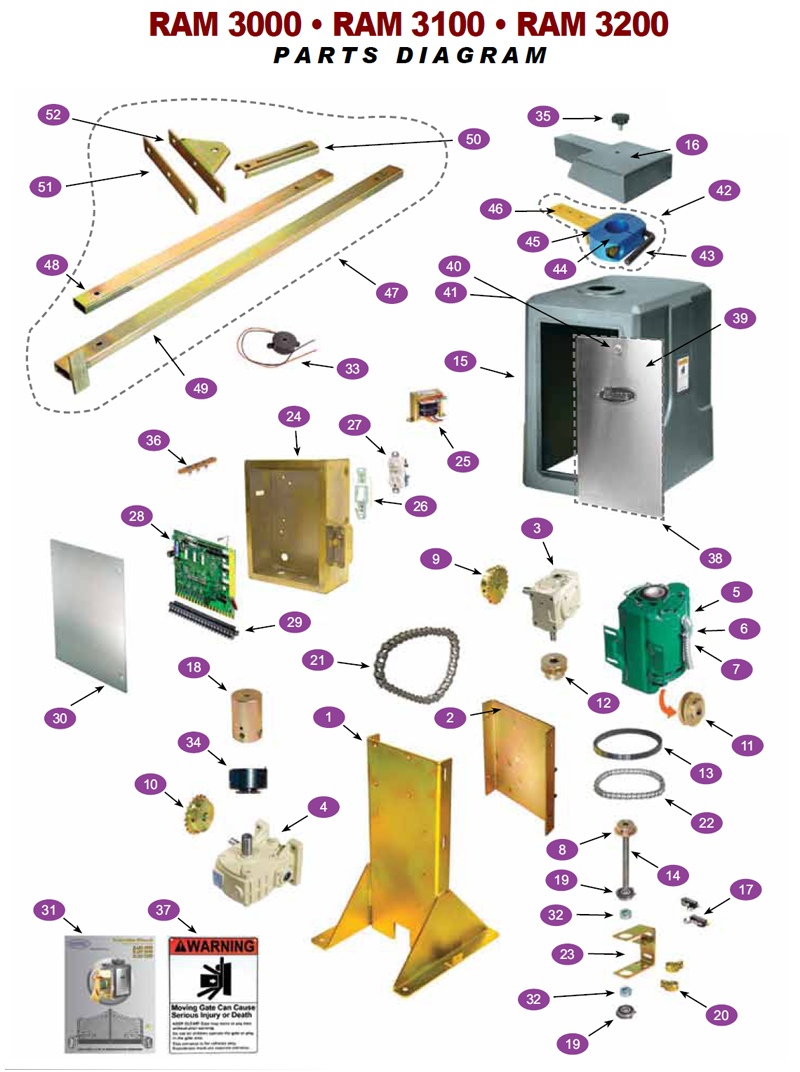

Ramset Operator Parts - RAM 3200 Operator New

Ramset Operator Parts - RAM 3200 Operator New

Item Description Part Number Price
1 Chassis 800-00-05
2 Chassis Back Channel 800-00-20
3 Gear Reducer—Size 40, Ratio 40:1 800-02-00
4 Size 40, Ratio 40:1—Size 70, Ratio 30:1 800-02-07
7 Motor, Standard—220VAC 1 HP 800-04-13
8 Sprocket—35B17 x 1/2” (2 1/4” OD) 800-06-02
9 Sprocket —40B21 x 3/4” 800-06-06
10 Sprocket —40B21 x 7/8” 800-06-07
11 Pulley, Steel —5/8” x 2 1/2” (AK25) 800-08-40
12 Pulley, Steel —5/8” x 2” 800-08-45
13 Belt— 4L-180 800-10-07
14 Shaft, Limit Switch—1/2” x 6” 800-12-06
15 Cover, Polyethylene 800-14-05
16 Cover, Polyethylene Cap Arm 800-14-15
17 Limit Switch 800-20-05
18 Pivot—2 1/2” x 3 1/4” (1 1/8” Shaft) 800-28-25
19 Bearing, Sealed—6202RS x 1/2” 800-44-04
20 Cam, Limit Switch —1/2” 800-48-02
21 Chain—#40 (28 Links) 800-52-01
22 Chain, Limit Switch—#35 800-52-22
23 Bracket, Limit Switch (C-Type) 800-54-46
24 Box, Control Board Metal 800-56-00
25 Transformer, 120/240V to 18VAC—40VA 800-60-00
26 Switch, Power—220VAC 800-60-11
28 Control Board—Intelligate 800-62-00
29 Edge Connector—20 Pin 800-64-00
30 Lexan Control Board Cover 800-66-03
31 Instruction Manual 800-68-05
32 Collar, Limit Shaft—1/2” 800-70-10
33 Horn Alarm Buzzer 800-70-20
34 Hub, Limit Switch (Plastic) - 3 1/4” 800-70-25
35 Knob—5/16” - 18 x 1/2” 800-70-36
36 Radio Receiver Terminal 800-70-55
37 Warning Sign For Gates 800-70-99
38 ACCESS DOOR ASSEMBLY 800-75-05
39 Access Door, Stainless Steel 800-16-00
40 Key, Access Door—#313 800-18-00
41 Lock Assembly—For #313 Key 800-18-01
42 CLAMP RELEASE ASSEMBLY 800-75-50
43 Release, lever handle—5/8” - 11 x 1 3/4” 800-28-35
44 Clamp, Release—Back 800-50-00
45 Clamp, Release—Front 800-50-01
46 Bracket, Clamp Arm 800-54-20
47 ARM ASSEMBLY (INCLUDES HARDWARE) 800-75-00
48 Arm, Metal Tubing—1” x 2” x 32” 800-28-00
49 Arm, Metal Tubing —1” x 2” x 42” 800-28-01
50 Bracket, Channel —1 3/4” x 10” 800-54-10
51 Bracket, External Gate —1 1/2” x 12” 800-54-30
52 Bracket, Gate 800-54-37
