GATE OPENER BRANDS

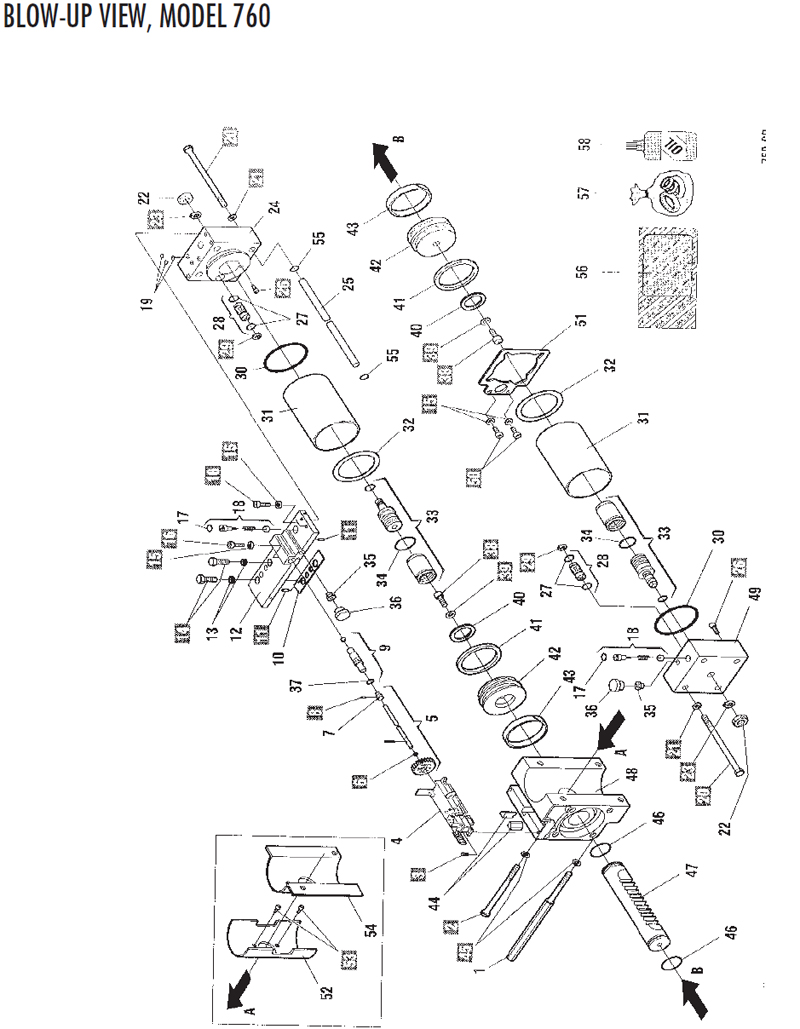

FAAC Gate Operator - Model 760

FAAC Gate Operator - Model 760

Item Description Part Number Price
1 Mounting Bolt (Bottom) 7019345
2 Mounting Bolt (Top) 7011345
3 Stainless Steel Screw (Doghouse) N/A
4 Manual Release Housing 7201295
5 Manual Release Rod 4246385
6 Snap Ring N/A
7 Manual Release Rod End N/A
8 Retaining Pin N/A
9 Manual release 4180295
10 Gasket (Manifold) 7099595
11 Parallel Pin N/A
12 Manifold 499762
13 Copper Washer 7039285
14 Banjo Bolt 7110115
15 Lock Washer N/A
16 Allen Head Bolt N/A
17 O-Ring (With Part No. 18) 7090150015
18 Brass By-Pass Cap (Break) 4180265
19 O-Ring 7090010015
20 Flange Bolt Stainless Steel 7011355
21 Lock Washer N/A
22 Jack Counter Nut Brass Jam Nut N/A
23 Snap Ring N/A
24 Flange (Manifold Side) 499760
25 Retract Tube 7361365
26 Allen Head Screw N/A
27 O-Ring (With Part No. 28) N/A
28 Lock Valve 4404085
29 Snap Ring N/A
30 O-Ring (Flange) 7090490025
31 Cylinder 7366135
32 Gasket (Cylinder) 7099585
33 Ramping Piston 7350275
34 O-Ring (Ramping Piston) N/A
35 Air Drain Valve 7246025
36 Debris Cover 7246025
37 O-Ring (Manual Release) N/A
38 Allen Head Bolt (Piston) N/A
39 Lock Washer N/A
40 RPiston (Red Internal) 7094115
41 Piston Seal 7092025
42 Piston 7350275
43 Piston Seal (Inner) 7049195
44 Vibration Dampener 7119485
45 Lock Washer (Coated) N/A
46 O-Ring (Rack) 7090380025
47 Rack 7193205
48 Ram Body 7160505
49 Flange (Non-Manifold) 499761
50 Allen Head Screw N/A
51 Bracket (Pump to Drive) 7224215
52 Gasket (Drive to Box) 7099575
53 Self Tapping Screw N/A
54 Rack Protecting Cover N/A
55 O-Ring (Retracting Tube) 7090665
56 Skin Pack (Mounting Hardware) 3905515
57 Seal Kit 2176*
58 Monolec Oil (1 Qt.) 6115 Qt+*
