Doorking Arm Barrier Operator Parts - 1602

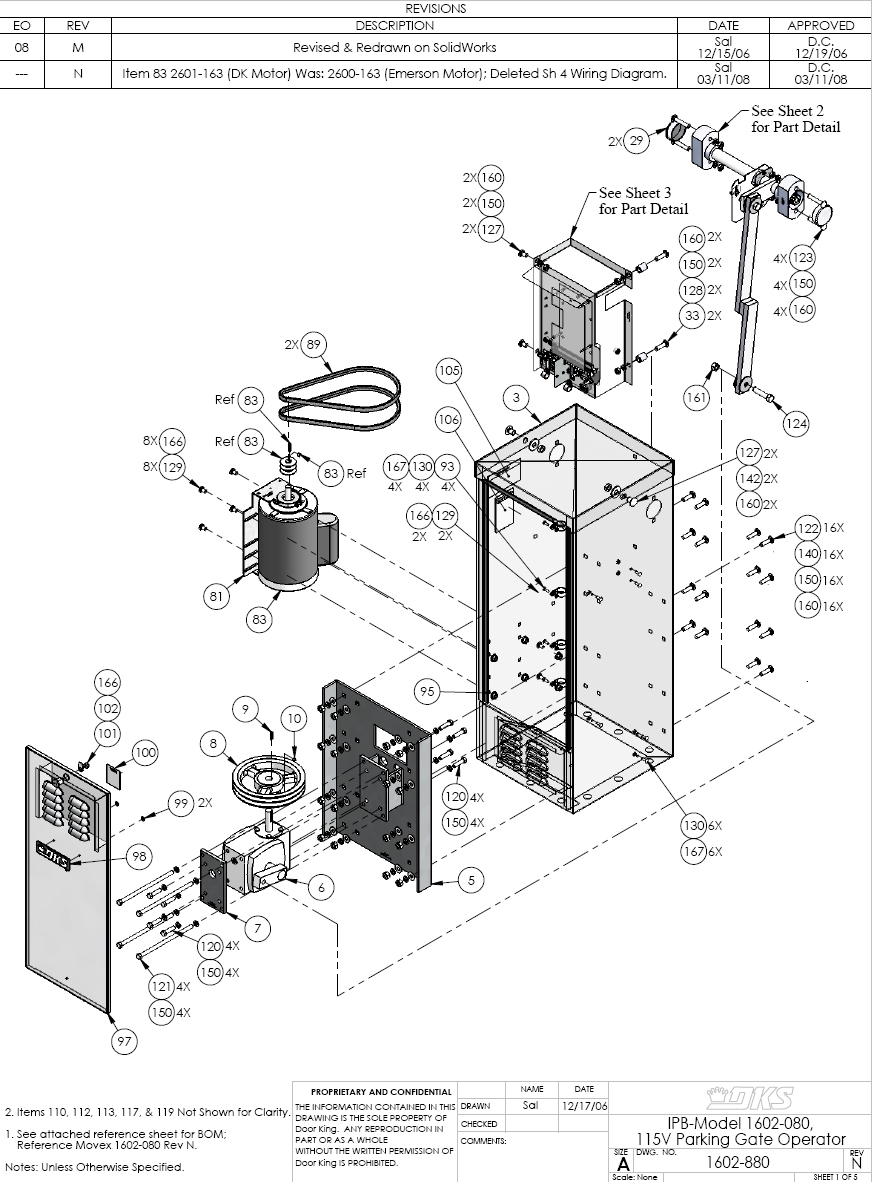

Doorking Arm Barrier Operator Parts - 1602 (View 1)

Click Image to Enlarge

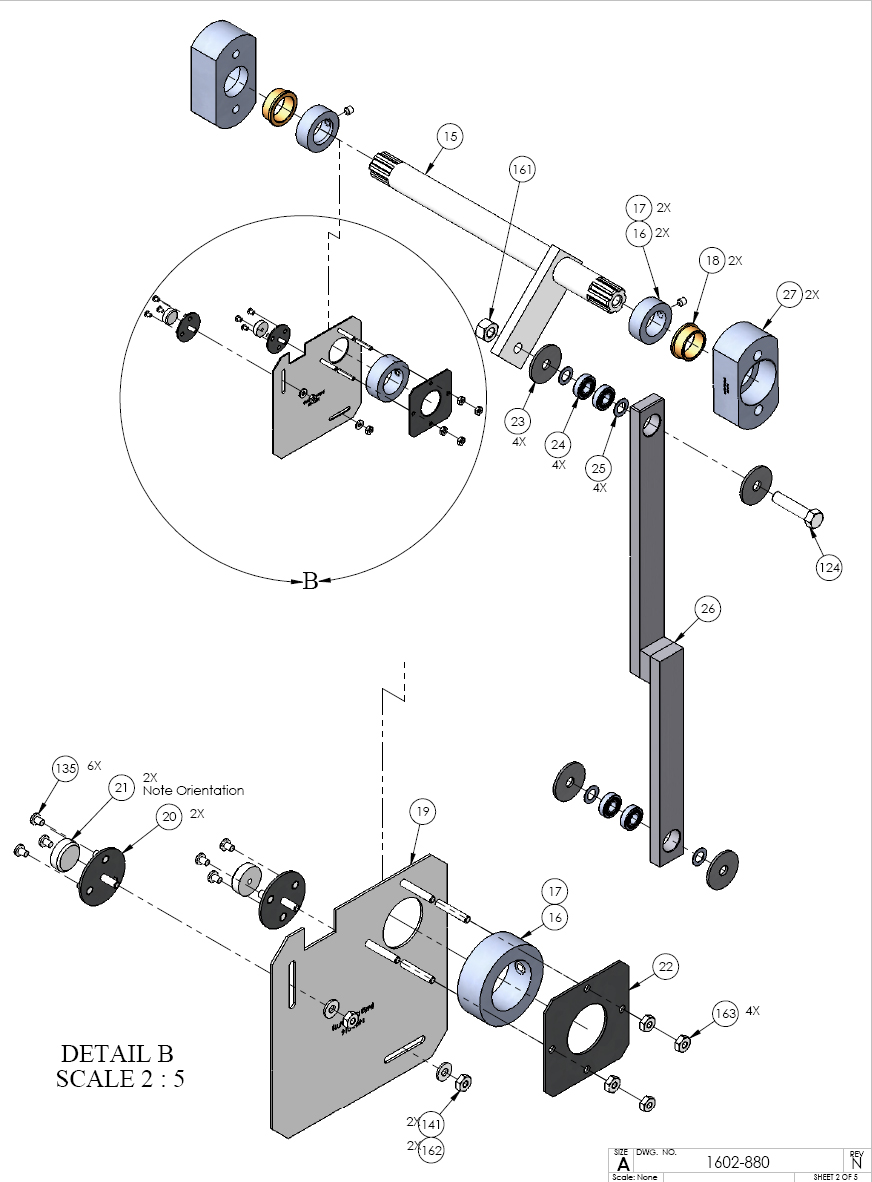

Doorking Arm Barrier Operator Parts - 1602 (View 2)

Click Image to Enlarge

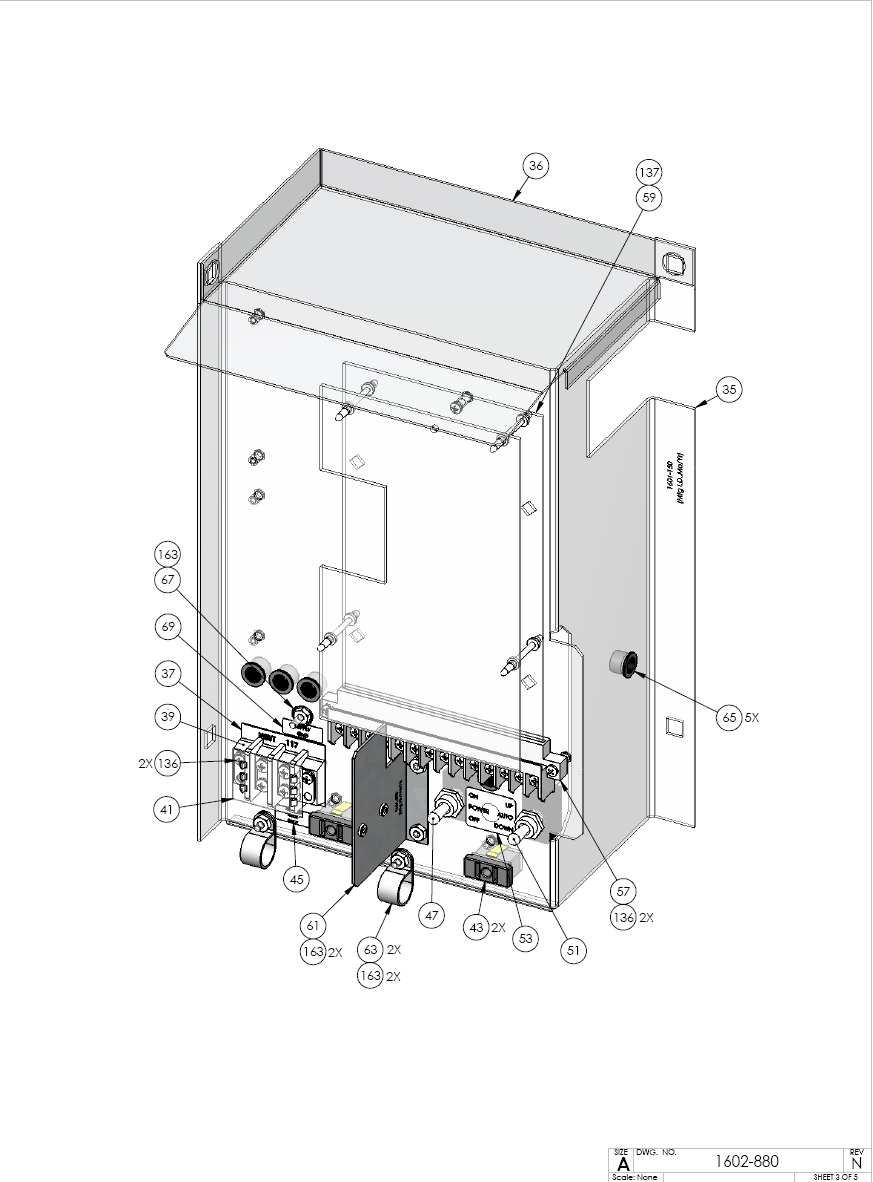

Doorking Arm Barrier Operator Parts - 1602 (View 3)

Click Image to Enlarge

CALL FOR PRICE

Item Description Part Number
1 IBP-Model 1602-080, 1HP 115V Parking Gate Operator 1602-880
3 Housing 1602-100
5 Mount Plate Gear Box 1602 1602-015
6 Gearbox 1602 1602-123
7 Mount Plate 1602 Top Plate 1602-115
8 Pulley Dual 8"OD 3/4"ID 1602-048
9 Keyway 3/16 x 3/16 x 1 1601-019
10 Set Screw 5/16-18 x 1/4 Zinc Pt 2616-094
15 Shaft Assembly 1601 Splined 1601-222
16 Collar 2"OD x 1 1/4"ID x 5/8"L 2600-061
17 Set Screw 3/8-16 x 3/8 2616-096
18 Bearing 1 1/2OD x 1 1/4ID x 5/8L 1601-032
19 Mount Plate Magnet 1601-016
20 Holder - Magnet 1601-044
21 Magnet 2600-817
22 Collar "Sandwich" Plate 1601-017
23 Washer 1 7/8"OD x 1/2"ID 1/8 T 2620-131
24 Washer Race .515"ID x.875"OD CH 1601-185
25 Bearing-Sealed 1/2ID x 1 1/8OD 1601-060
26 Connecting Rod 1602 1602-029
27 Bearing Blk Die Cast 1601 1601-139
29 Hole Plug Plastic 2.25" Hole 2600-882
33 Spacer 3/4 OD x 1/2 ID x 15/16 L 2600-198
35 Mount Plate - PC Board Bottom 1601-150
36 Mount Plate - PC Board Top 1601-152
37 Marker Strip Silkscn Both Side 2600-410
39 Terminal Block-2 Position 2600-414
41 Terminal Block Cover 2 Position 3129-002
43 Outlet Snap-In Leviton 1306 1200-028
45 Decal Copper Wire Only 2599-014
47 Switch Toggle ON-OFF-ON MOMEN 1601-040
51 Switch Toggle 2 Pole On-Off 1601-140
53 Decal 1601 Switch 2599-012
57 Terminal 14 Pin 1601-007
59 PCB Parking Gate 1601-010
61 Divider - High/Low Voltage 1601-055
63 Wire Clp-5/8" Concord 770-1209 2600-619
65 Bushing 1/2 2600-820
67 Washer Cup - Brass 2600-439
69 Decal SUPPLY GND 2599-006
81 Motor Base 1 HP 2600-837
83 Motor Assembly 1HP Dual Pulley (DK Motor) 2601-163
89 Belt - 31" AX31 1602-071
93 Wire Clamp-1" 2600-639
95 Weather Stripping (50' rolls) 4001-018
97 Door 1602-075
98 Nameplate Plastic DKS 2600-732
99 Washer Push on Clamp 2802-040
100 Label Patent 2599-008
101 Lock N16058BD x SF x 2K Key 16120 4001-035
102 Cam 1.1/4 1702-503
105 Label 1601 Warning 2599-035
106 Label Universal 2599-199
110 Wire Set 1601/1602 1601-008
112 Tie Wrap 4" 1804-031
113 Wire Connector STA-KON RC6 2600-749
117 Plate Counter Weight 1602 1602-003
119 Accessory Box 1602 Operator 1602-041
120 Bolt Hex Head 3/8-16 x 1 1/2 2615-055
121 Bolt Hex Head 3/8-16 x 8" 2615-058
122 Bolt Carriage SS 3/8-16 x 1 1/4 2615-669
123 Bolt Carriage SS 3/8-16 x 2 1/4Painted 2615-673
124 Bolt Hex Head 1/2-13 x 2 1/4 GR8 2615-184
127 Bolt Carriage SS 3/8-16 x 3/4 Painted 2615-667
128 Bolt Carriage SS 3/8-16 x 1 1/2 2615-671
129 Bolt Carriage SS 5/16-18 x 5/8 Painted 2615-662
130 Bolt Carriage SS 10-32 x 5/8 Painted 2615-645
135 Screw Phillip Head 6-32 x 3/16 2616-006
136 Screw Phillips Head 6-32 x 3/4 2616-003
137 Screw Phillips Head 6-32 x 1/2 2616-002
140 Washer 1/2 " SAE 2620-021
141 Washer #8 SAE 2802-003
142 Washer 3/8" USS 2620-029
150 Lockwasher 3/8" 2620-047
160 Nut Hex 3/8-16 2620-405
161 Nut Hex 1/2-13 GR8 2620-440
162 Nut Hex 8-32 2620-401
163 Nut Nylon Lock 8-32 2902-004
166 Nut Hex Flange Lock 5/16-18 2620-411
167 Nut Nylon 10-32 2902-006
